International Centre for Allied Health Evidence, University of South Australia, Adelaide, South Australia.
BMC Med Imaging. 2014 Mar 3;14:10. doi: 10.1186/1471-2342-14-10.
Ultrasound is considered a reliable, widely available, non-invasive and inexpensive imaging technique for assessing soft tissue involvement in Lateral epicondylalgia. Despite the number of diagnostic studies for Lateral Epicondylalgia, there is no consensus in the current literature on the best abnormal ultrasound findings that confirm lateral epicondylalgia.

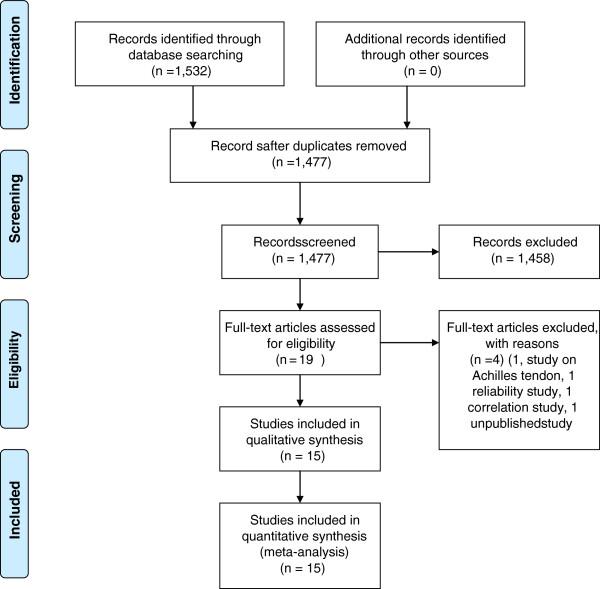

Eligible studies identified by searching electronic databases, scanning reference lists of articles and chapters on ultrasound in reference books, and consultation of experts in sonography. Three reviewers (VCDIII, KP, KW) independently searched the databases using the agreed search strategy, and independently conducted all stages of article selection. Two reviewers (VCDIII, KP) then screened titles and abstracts to remove obvious irrelevance. Potentially relevant full text publications which met the inclusion criteria were reviewed by the primary investigator (VCDIII) and another reviewer (CGS).
Among the 15 included diagnostic studies in this review, seven were Level II diagnostic accuracy studies for chronic lateral epicondylalgia based on the National Health and Medical Research Council Hierarchy of Evidence. Based from the pooled sensitivity of abnormal ultrasound findings with homogenous results (p > 0.05), the hypoechogenicity of the common extensor origin has the best combination of diagnostic sensitivity and specificity. It is moderately sensitive [Sensitivity: 0.64 (0.56-0.72)] and highly specific [Specificity: 0.82 (0.72-0.90)] in determining elbows with lateral epicondylalgia. Additionally, bone changes on the lateral epicondyle [Sensitivity: 0.56 (0.50-0.62)] were moderately sensitive to chronic LE. Conversely, neovascularity [Specificity: 1.00 (0.97-1.00)], calcifications [Specificity: 0.97 (0.94-0.99)] and cortical irregularities [Specificity: 0.96 (0.88-0.99)] have strong specificity for chronic lateral epicondylalgia. There is insufficient evidence supporting the use of Power Doppler Ultrasonogrophy, Real-time Sonoelastography and sonographic probe-induced tenderness in diagnosing LE.
The use of Gray-scale Ultrasonography is recommended in objectively diagnosing lateral epicondylalgia. The presence of hypoechogenicity and bone changes indicates presence of a stressed common extensor origin-lateral epicondyle complex in elbows with lateral epicondylalgia. In addition to diagnosis, detection of these abnormal ultrasound findings allows localization of pathologies to tendon or bone that would assist in designing an appropriate treatment suited to patient's condition.
超声被认为是一种可靠、广泛应用、非侵入性和廉价的成像技术,可用于评估外侧肱骨上髁炎的软组织受累情况。尽管有许多针对外侧肱骨上髁炎的诊断研究,但目前文献中对于确认外侧肱骨上髁炎的最佳异常超声表现尚无共识。
通过搜索电子数据库、扫描参考文章和参考书超声章节的参考文献列表以及咨询超声专家,确定符合条件的研究。三位审稿人(VCDIII、KP、KW)使用商定的搜索策略独立搜索数据库,并独立进行了所有阶段的文章选择。两位审稿人(VCDIII、KP)随后筛选标题和摘要以排除明显不相关的内容。符合纳入标准的潜在相关全文出版物由主要研究者(VCDIII)和另一位审稿人(CGS)进行审查。
在本综述中纳入的 15 项诊断研究中,有 7 项是基于国家卫生和医学研究委员会证据等级的慢性外侧肱骨上髁炎的二级诊断准确性研究。根据同质结果的异常超声表现的汇总敏感性(p>0.05),伸肌总起点的低回声性具有最佳的诊断敏感性和特异性组合。它在确定患有外侧肱骨上髁炎的肘部时具有中度敏感性[敏感性:0.64(0.56-0.72)]和高度特异性[特异性:0.82(0.72-0.90)]。此外,外侧肱骨上髁的骨改变[敏感性:0.56(0.50-0.62)]对慢性 LE 具有中度敏感性。相反,新生血管[特异性:1.00(0.97-1.00)]、钙化[特异性:0.97(0.94-0.99)]和皮质不规则[特异性:0.96(0.88-0.99)]对慢性外侧肱骨上髁炎具有很强的特异性。目前尚无足够证据支持使用 Power Doppler Ultrasonogrophy、实时超声弹性成像和超声探头诱发压痛来诊断 LE。
建议使用灰阶超声客观诊断外侧肱骨上髁炎。低回声性和骨改变的存在表明,患有外侧肱骨上髁炎的肘部伸肌总起点-外侧肱骨复合体存在紧张。除了诊断之外,检测这些异常超声表现还可以定位到肌腱或骨骼的病变,这有助于根据患者的病情设计适当的治疗方案。
