The relationship analysis between water injection and microfacies of SHA1 reservoir of Liao He Basin, China.

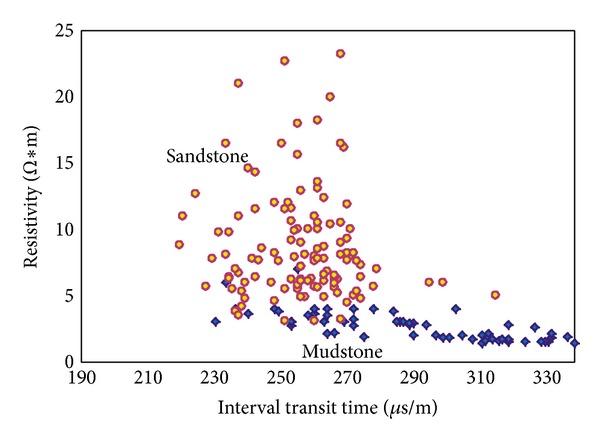

SHA1 is the representative reservoir in Liao He Basin. Through the introduction of curvature displayed on the gray scale, we determine the substructure and fractures. Geostatistical inversion method is used to help study the porosity of reservoir. The relationship between interval transit times and resistivity among mudstone and sandstone, before and after water injection, is analyzed. The relationship between porosity and permeability and the relationship between porosity and impedance from core analysis were studied. Through the whole information above, we divide the microfacies of SHA1 reservoir to distributary channel, mouth bar, the leading edge thin sand, and prodelta mud. The water injections in different microfacies are studied. The distributary channel should be used by large distant injection wells or smaller injection pressure injection. The smaller distant injection wells or large injection pressure should be used in the mouth bar. The arrangement of well injection need consider the different sedimentary microfacies.
