Rogowski Isabelle, Creveaux Thomas, Chèze Laurence, Macé Pierre, Dumas Raphaël
Université de Lyon, Université Claude Bernard Lyon 1, Centre de Recherche et d'Innovation sur le Sport - EA 647, UFRSTAPS, Villeurbanne, France.
Université de Lyon, Université Claude Bernard Lyon 1, IFSTTAR, UMR_T9406, LBMC Laboratoire de Biomécanique et Mécanique des Chocs, Bron, France.
PLoS One. 2014 Aug 12;9(8):e104785. doi: 10.1371/journal.pone.0104785. eCollection 2014.

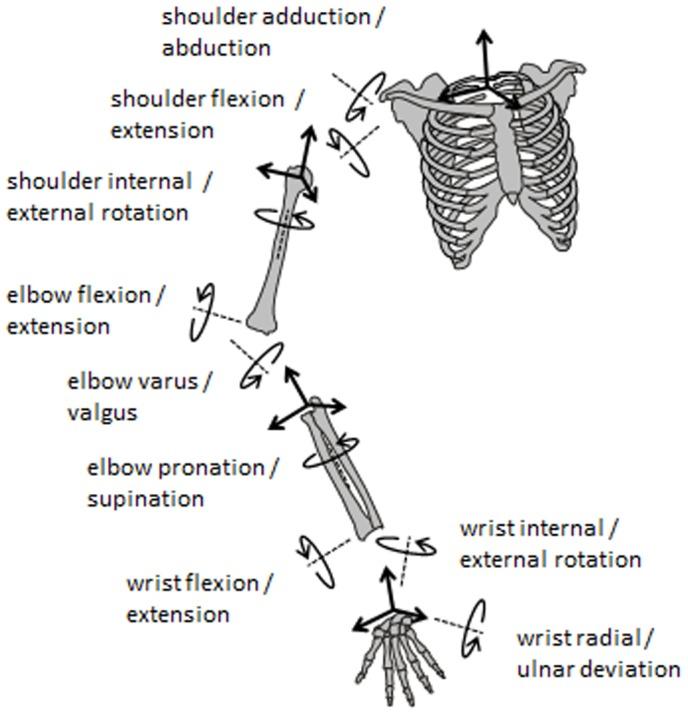

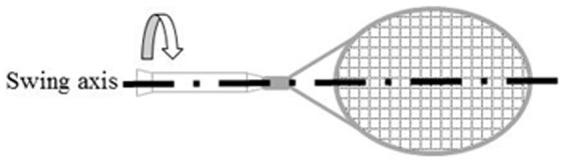

This study examined the effect of the polar moment of inertia of a tennis racket on upper limb loading in the serve. Eight amateur competition tennis players performed two sets of 10 serves using two rackets identical in mass, position of center of mass and moments of inertia other than the polar moment of inertia (0.00152 vs 0.00197 kg.m2). An eight-camera motion analysis system collected the 3D trajectories of 16 markers, located on the thorax, upper limbs and racket, from which shoulder, elbow and wrist net joint moments and powers were computed using inverse dynamics. During the cocking phase, increased racket polar moment of inertia was associated with significant increases in the peak shoulder extension and abduction moments, as well the peak elbow extension, valgus and supination moments. During the forward swing phase, peak wrist extension and radial deviation moments significantly increased with polar moment of inertia. During the follow-through phase, the peak shoulder adduction, elbow pronation and wrist external rotation moments displayed a significant inverse relationship with polar moment of inertia. During the forward swing, the magnitudes of negative joint power at the elbow and wrist were significantly larger when players served using the racket with a higher polar moment of inertia. Although a larger polar of inertia allows players to better tolerate off-center impacts, it also appears to place additional loads on the upper extremity when serving and may therefore increase injury risk in tennis players.
本研究考察了网球拍的极惯性矩对发球时上肢负荷的影响。八名业余比赛网球运动员使用两把质量、质心位置和除极惯性矩外的惯性矩相同(分别为0.00152与0.00197kg·m²)的球拍进行了两组,每组10次发球。一个八摄像头运动分析系统采集了位于胸部、上肢和球拍上的16个标记的三维轨迹,利用逆动力学从中计算出肩部、肘部和腕部的净关节力矩和功率。在引拍阶段,球拍极惯性矩的增加与肩部伸展和外展力矩峰值以及肘部伸展、外翻和旋后力矩峰值的显著增加相关。在前挥拍阶段,腕部伸展和桡偏力矩峰值随极惯性矩显著增加。在随挥阶段,肩部内收、肘部旋前和腕部外旋力矩峰值与极惯性矩呈显著负相关。在前挥拍过程中,当运动员使用极惯性矩较高的球拍发球时,肘部和腕部的负关节功率大小显著更大。虽然较大的极惯性矩能让运动员更好地承受偏离中心的撞击,但在发球时似乎也会给上肢带来额外负荷,因此可能会增加网球运动员受伤的风险。
