基于硅有机混合槽波导的三输入多播光十六进制加减法

Silicon-organic hybrid slot waveguide based three-input multicasted optical hexadecimal addition/subtraction.

作者信息

Gui Chengcheng, Wang Jian

机构信息

Wuhan National Laboratory for Optoelectronics, School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan 430074, Hubei, China.

出版信息

Sci Rep. 2014 Dec 15;4:7491. doi: 10.1038/srep07491.

DOI:10.1038/srep07491

PMID:25502618

原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC4265790/

Abstract

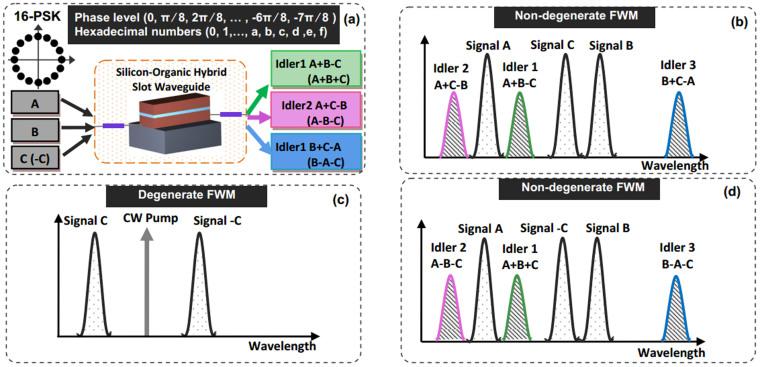

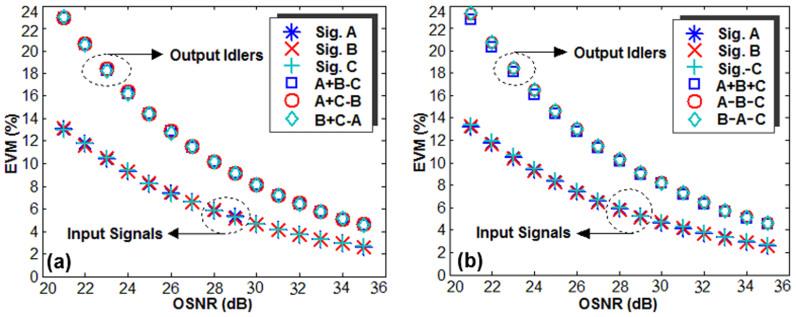

By exploiting multiple non-degenerate four-wave mixing in a silicon-organic hybrid slot waveguide and 16-ary phase-shift keying signals, we propose and simulate three-input (A, B, C) multicasted 40-Gbaud (160-Gbit/s) optical hexadecimal addition/subtraction (A + B - C, A + C - B, B + C - A, A + B + C, A - B - C, B - A - C). The error vector magnitude (EVM) and dynamic range of signal power are analyzed to evaluate the performance of optical hexadecimal addition/subtraction.

摘要

通过利用硅有机混合槽波导中的多重非简并四波混频和16进制相移键控信号，我们提出并模拟了三输入（A、B、C）多播40 Gbaud（160 Gbit/s）光十六进制加/减法（A + B - C、A + C - B、B + C - A、A + B + C、A - B - C、B - A - C）。分析了误差矢量幅度（EVM）和信号功率的动态范围，以评估光十六进制加/减法的性能。
