Phan Timothy S, Li John K-J, Segers Patrick, Chirinos Julio A
Department of Electrical & Computer Engineering, Department of Biomedical Engineering, Rutgers University, Piscataway, NJ Cardiovascular Division, University of Pennsylvania, Philadelphia, PA
Department of Electrical & Computer Engineering, Department of Biomedical Engineering, Rutgers University, Piscataway, NJ.
J Am Heart Assoc. 2016 Feb 19;5(2):e003069. doi: 10.1161/JAHA.115.003069.
The hemodynamic basis for increased pulse pressure (PP) with aging remains controversial. The classic paradigm attributes a predominant role to increased pulse wave velocity (PWV) and premature wave reflections (WRs). A controversial new paradigm proposes increased forward pressure wave amplitude (FWA), attributed to proximal aortic characteristic impedance (Zc), as the predominant factor, with minor contributions from WRs. Based on theoretical considerations, we hypothesized that (rectified) WRs drive the increase in FWA, and that the forward pressure wave does not depend solely on the interaction between flow and Zc (QZc product).

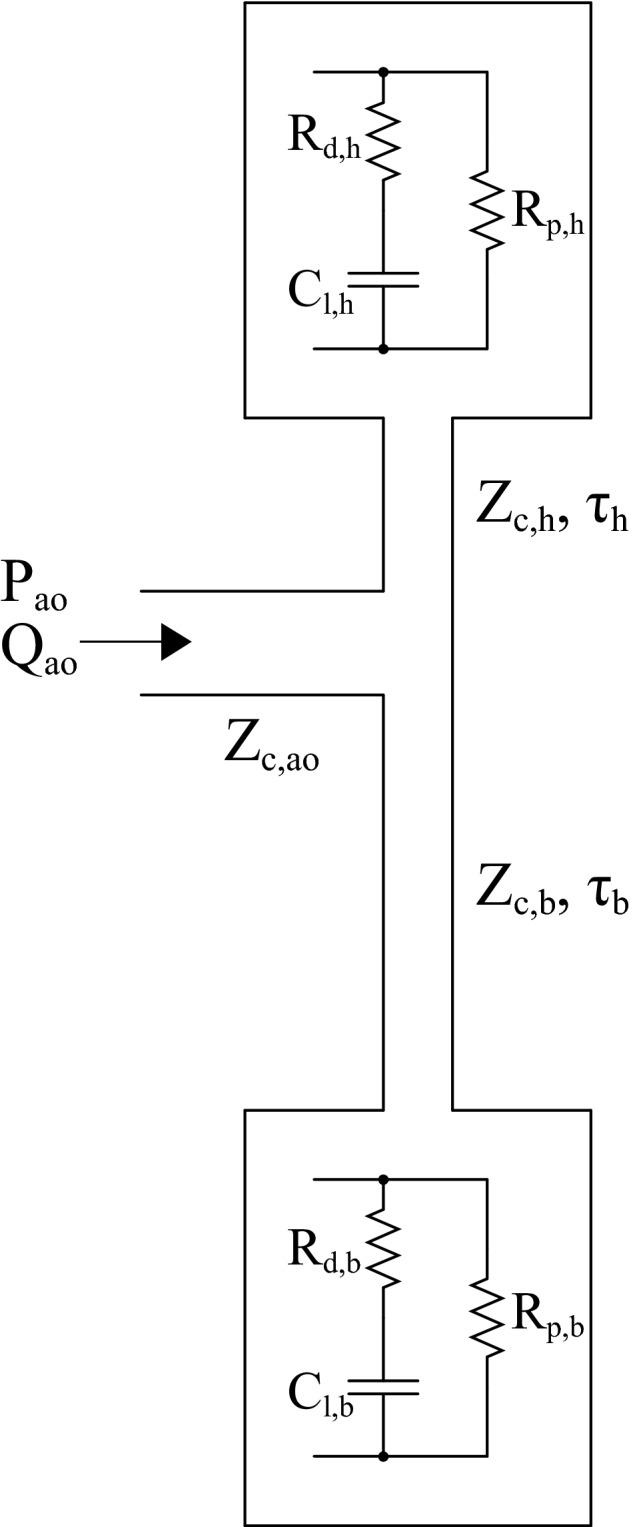

We performed 3 substudies: (1) open-chest anesthetized dog experiments (n=5); (2) asymmetric T-tube model-based study; and (3) human study in a diverse clinical population (n=193). Animal experiments demonstrated that FWA corresponds to peak QZc only when WRs are minimal. As WRs increased, FWA was systematically greater than QZc and peaked well after peak flow, analogous to late-systolic peaking of pressure attributable to WRs. T-tube modeling confirmed that increased/premature WRs resulted in increased FWA. Magnitude and timing of WRs explained 80.8% and 74.3% of the variability in the difference between FWA and peak QZc in dog and human substudies, respectively.
Only in cases of minimal reflections does FWA primarily reveal the interaction between peak aortic flow and proximal aortic diameter/stiffness. FWA is strongly dependent on rectified reflections. If interpreted out of context with the hemodynamic principles of its derivation, the FWA paradigm inappropriately amplifies the role of the proximal aorta in elevation of FWA and PP.
随着年龄增长脉压(PP)升高的血流动力学基础仍存在争议。经典范式认为脉搏波速度(PWV)增加和过早的波反射(WRs)起主要作用。一种有争议的新范式提出,由于近端主动脉特征阻抗(Zc)导致的向前压力波振幅(FWA)增加是主要因素,WRs的贡献较小。基于理论考虑,我们假设(校正后的)WRs驱动FWA升高,并且向前压力波不仅仅取决于血流与Zc的相互作用(QZc乘积)。
我们进行了3项子研究:(1)开胸麻醉犬实验(n = 5);(2)基于不对称T形管模型的研究;以及(3)不同临床人群的人体研究(n = 193)。动物实验表明,只有当WRs最小时,FWA才与峰值QZc相对应。随着WRs增加,FWA系统性地大于QZc,并且在峰值血流之后达到峰值,类似于由WRs导致的压力在收缩晚期达到峰值。T形管模型证实,WRs增加/过早会导致FWA升高。在犬和人体子研究中,WRs的大小和时间分别解释了FWA与峰值QZc差值变异性的80.8%和74.3%。
只有在反射最小的情况下,FWA才主要揭示主动脉峰值血流与近端主动脉直径/硬度之间的相互作用。FWA强烈依赖于校正后的反射。如果脱离其推导的血流动力学原理背景来解释,FWA范式不适当地夸大了近端主动脉在FWA和PP升高中的作用。
