Dolcini Giorgio Andrea, Colombo Marco, Mangano Carlo
Private Practice, 21100 Como, Italy.
Private Practice, 21052 Busto Arsizio, Italy.
Int J Dent. 2016;2016:7358423. doi: 10.1155/2016/7358423. Epub 2016 Jul 14.

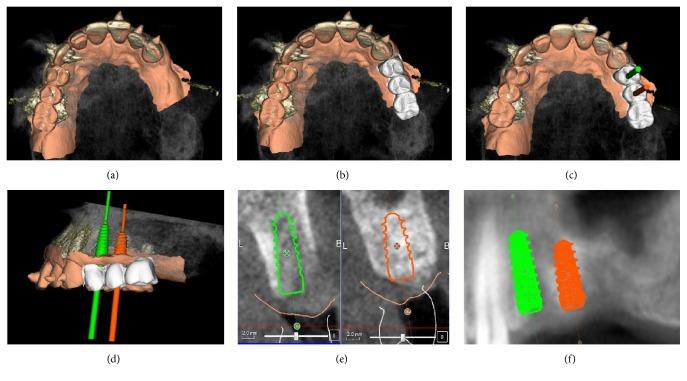

Scope. To demonstrate guided implant placement and the application of fixed, implant-supported prosthetic restorations with a fully digital workflow. Methods. Over a 2-year period, all patients with partial edentulism of the posterior maxilla, in need of fixed implant-supported prostheses, were considered for inclusion in this study. The protocol required intraoral scanning and cone beam computed tomography (CBCT), the superimposition of dental-gingival information on bone anatomy, surgical planning, 3D-printed teeth-supported surgical templates, and modelling and milling of polymethylmethacrylate (PMMA) temporaries for immediate loading. After 3 months, final optical impression was taken and milled zirconia frameworks and 3D-printed models were fabricated. The frameworks were veneered with ceramic and delivered to the patients. Results. Fifteen patients were selected for this study. The surgical templates were stable. Thirty implants were placed (BTK Safe®, BTK, Vicenza, Italy) and immediately loaded with PMMA temporaries. After 3 months, the temporaries were replaced by the final restorations in zirconia-ceramic, fabricated with a fully digital process. At 6 months, none of the patients reported any biological or functional problems with the implant-supported prostheses. Conclusions. The present procedure for fully digital planning of implants and short-span fixed implant-supported restorations has been shown to be reliable. Further studies are needed to validate these results.
范围。展示使用全数字工作流程进行引导式种植体植入以及固定的、种植体支持的修复体的应用。方法。在两年时间里,所有上颌后牙部分牙列缺失且需要固定种植体支持修复体的患者均被纳入本研究。该方案要求进行口内扫描和锥形束计算机断层扫描(CBCT),将牙齿 - 牙龈信息叠加在骨解剖结构上,进行手术规划,制作3D打印的牙齿支持的手术模板,以及为即刻负重制作和铣削聚甲基丙烯酸甲酯(PMMA)临时修复体。3个月后,获取最终光学印模并制作铣削氧化锆框架和3D打印模型。框架用陶瓷贴面并交付给患者。结果。15名患者被选入本研究。手术模板稳定。植入了30颗种植体(BTK Safe®,BTK,意大利维琴察)并即刻用PMMA临时修复体负重。3个月后,临时修复体被全数字制作的氧化锆 - 陶瓷最终修复体取代。6个月时,没有患者报告种植体支持修复体存在任何生物学或功能问题。结论。目前用于种植体全数字规划和短跨度固定种植体支持修复体的程序已被证明是可靠的。需要进一步研究来验证这些结果。
