Müller Werner W, Saathoff Fokke
BAM Federal Institute for Materials Research and Testing, Unter den Eichen 87, D-12205 Berlin, Germany.
Chair of Geotechnics and Coastal Engineering, Universität Rostock, Justus-von-Liebig-Weg 6, LAGII, D-18059 Rostock, Germany.
Sci Technol Adv Mater. 2015 May 8;16(3):034605. doi: 10.1088/1468-6996/16/3/034605. eCollection 2015 Jun.

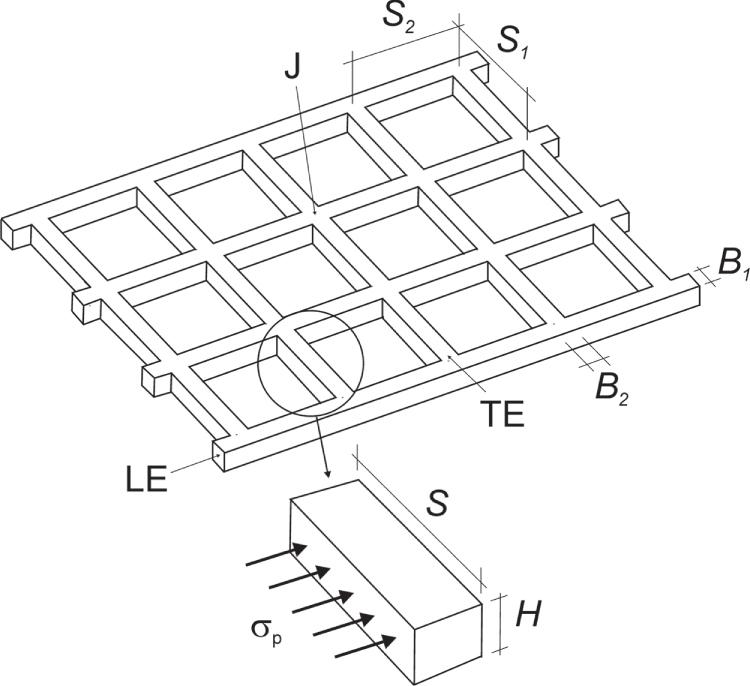

Geosynthetics are planar polymeric products, which are used in connection with soil, rock or other soil-like materials to fulfill various functions in geoenvironmental engineering. Geosynthetics are of ever-growing importance in the construction industry. Sealing of waste storage facilities to safely prevent the emission of wastewater, landfill gas and contaminated dust as well as the diffusion of pollutants into the environment and coastal protection against storms and floods and reconstruction after natural disaster are important fields of application. We will give an overview of the various geosynthetic products. Two examples of the material problems related to geosynthetics are discussed in detail: the effect of creep on the long-term performance of geocomposite drains and the numerical simulation of the interaction of soil with geogrids. Both issues are of importance for the use of these products in landfill capping systems. The various functions, which geosynthetics may fulfill in the protection of coastal lines, are illustrated by case studies. The geosynthetic market is evaluated and economical and environmental benefits, as well as environmental side effects related to the use of geosynthetics, are discussed.
土工合成材料是平面聚合物产品,与土壤、岩石或其他类似土壤的材料结合使用,以在地质环境工程中发挥各种功能。土工合成材料在建筑行业中日益重要。密封废物储存设施以安全防止废水、填埋气体和受污染灰尘的排放以及污染物向环境中的扩散,以及海岸防护以抵御风暴和洪水以及自然灾害后的重建是重要的应用领域。我们将概述各种土工合成材料产品。详细讨论了与土工合成材料相关的两个材料问题示例:蠕变对土工合成排水网长期性能的影响以及土壤与土工格栅相互作用的数值模拟。这两个问题对于这些产品在垃圾填埋场封盖系统中的使用都很重要。通过案例研究说明了土工合成材料在海岸线保护中可能发挥的各种功能。对土工合成材料市场进行了评估,并讨论了其经济和环境效益以及与使用土工合成材料相关的环境副作用。
