Arguello Eric, Stoddard Carissa, Liu Hao Howe, Richardson Mike, Hartis Andrea
Department of Physical Therapy, University of North Texas Health Science Center, 3500 Camp Bowie Blvd., Fort Worth, TX 76107, USA.
Anat Res Int. 2016;2016:6312027. doi: 10.1155/2016/6312027. Epub 2016 Nov 13.

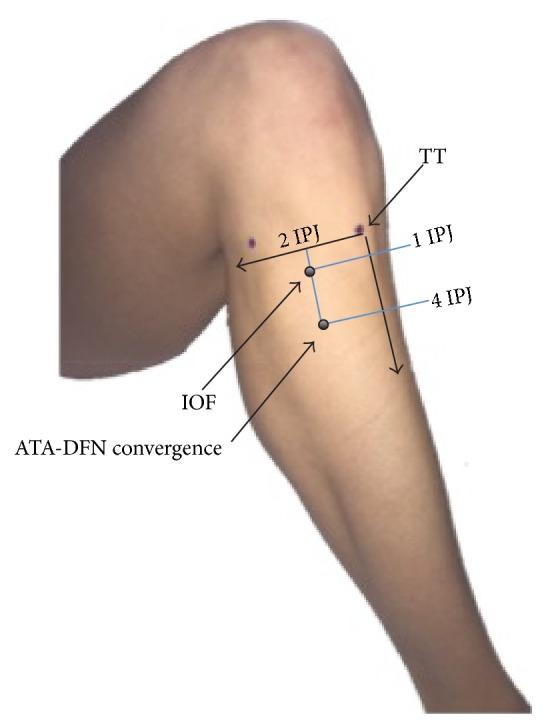

. This study was conducted to identify the surface projection of the interosseous foramen and associated structures of the proximal leg using the average clinician's thumb width as a quick measurement to assist in differential diagnosis and treatment. . Twelve cadavers (5 males and 7 females, age range = 51-91 years, and mean age = 76.9) were dissected for analysis. Location and size of interosseous foramen, location of anterior tibial artery, location of deep fibular nerve, and corresponding arterial branches were measured and converted into thumb widths. . Mean thumb width measured among the cadavers was 17.94 ± 3.9 mm. The interosseous foramen measured was approximately 1 thumb width vertically (18.47 ± 3.0 mm) and 1/2 thumb width horizontally (7.32 ± 2.1 mm) and was located approximately 1 thumb width distally to the tibial tuberosity (20.81 ± 6.8 mm) and 2 thumb widths (37.47 ± 4.7 mm) lateral to the tibial ridge. The anterior tibial artery and deep fibular nerve converged approximately 4 thumb widths (74.31 ± 14.8 mm) inferior to the tibial tuberosity and 2 thumb widths (33.46 ± 4.9 mm) lateral to the tibial ridge. . Clinicians may identify anatomical structures of the proximal leg with palpation using the thumb width for measurement.
本研究旨在确定小腿近端骨间孔及相关结构的体表投影,以临床医生拇指宽度作为快速测量方法,辅助鉴别诊断和治疗。对12具尸体(5例男性和7例女性,年龄范围51 - 91岁,平均年龄76.9岁)进行解剖分析。测量骨间孔的位置和大小、胫前动脉的位置、腓深神经的位置以及相应的动脉分支,并换算成拇指宽度。尸体测量的平均拇指宽度为17.94±3.9毫米。所测骨间孔垂直方向约为1个拇指宽度(18.47±3.0毫米),水平方向约为1/2个拇指宽度(7.32±2.1毫米),位于胫骨结节远端约1个拇指宽度(20.81±6.8毫米)处,胫骨嵴外侧2个拇指宽度(37.47±4.7毫米)处。胫前动脉和腓深神经在胫骨结节下方约4个拇指宽度(74.31±14.8毫米)处、胫骨嵴外侧2个拇指宽度(33.46±4.9毫米)处交汇。临床医生可通过拇指宽度测量进行触诊,识别小腿近端的解剖结构。
