Chen Chuang, Zhao Hui, Fu Xu, Huang LuoShun, Tang Min, Yan XiaoPeng, Sun ShiQuan, Jia WenJun, Mao Liang, Shi Jiong, Chen Jun, He Jian, Zhu Jin, Qiu YuDong
Department of Hepatopancreatobiliary Surgery, Nanjing Drum Tower Hospital Clinical College of Nanjing Medical University, Nanjing 210008, Jiangsu, China.
Department of Hepatopancreatobiliary Surgery, Huai'an Hospital Affiliated to Xuzhou Medical University, Second People's Hospital of Huai'an City, Huai'an 223002, Jiangsu, China.
Oncotarget. 2017 May 2;8(18):29741-29750. doi: 10.18632/oncotarget.15712.

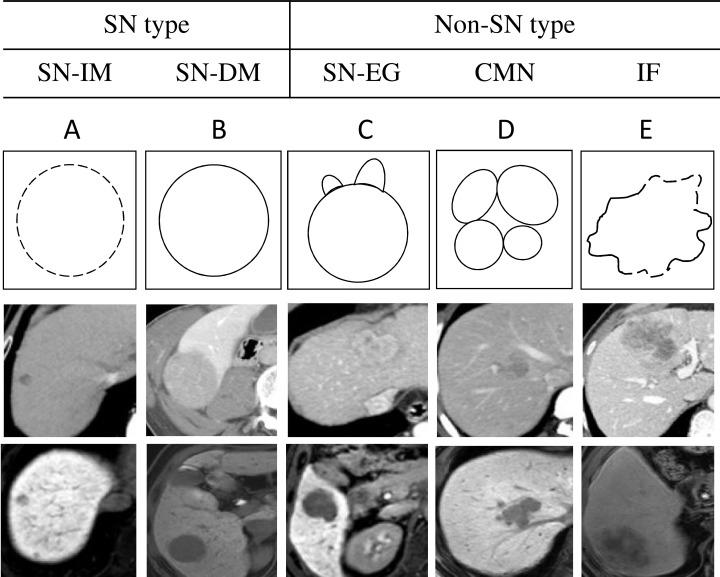

Accurate gross classification through imaging is critical for determination of hepatocellular carcinoma (HCC) patient prognoses and treatment strategies. The present retrospective study evaluated the utility of contrast-enhanced computed tomography (CE-CT) combined with gadolinium-ethoxybenzyl diethylenetriamine pentaacetic acid-enhanced magnetic resonance imaging (EOB-MRI) for diagnosis and classification of HCCs prior to surgery. Ninety-four surgically resected HCC nodules were classified as simple nodular (SN), SN with extranodular growth (SN-EG), confluent multinodular (CMN), or infiltrative (IF) types. SN-EG, CMN and IF samples were grouped as non-SN. The abilities of the two imaging modalities to differentiate non-SN from SN HCCs were assessed using the EOB-MRI hepatobiliary phase and CE-CT arterial, portal, and equilibrium phases. Areas under the ROC curves for non-SN diagnoses were 0.765 (95% confidence interval [CI]: 0.666-0.846) for CE-CT, 0.877 (95% CI: 0.793-0.936) for EOB-MRI, and 0.908 (95% CI: 0.830-0.958) for CE-CT plus EOB-MRI. Sensitivities, specificities, and accuracies with respect to identification of non-SN tumors of all sizes were 71.4%, 81.6%, and 75.5% for CE-CT; 96.4%, 78.9%, and 89.3% for EOB-MRI; and 98.2%, 84.2%, and 92.5% for CE-CT plus EOB-MRI. These results show that CE-CT combined with EOB-MRI offers a more accurate imaging evaluation for HCC gross classification than either modality alone.
通过影像学进行准确的大体分类对于确定肝细胞癌(HCC)患者的预后和治疗策略至关重要。本回顾性研究评估了对比增强计算机断层扫描(CE-CT)联合钆塞酸二钠增强磁共振成像(EOB-MRI)在术前诊断和分类HCC中的应用价值。94个手术切除的HCC结节被分类为单纯结节型(SN)、伴结节外生长的SN(SN-EG)、融合多结节型(CMN)或浸润型(IF)。SN-EG、CMN和IF样本被归为非SN组。使用EOB-MRI肝胆期和CE-CT动脉期、门静脉期及平衡期评估两种成像方式区分非SN与SN HCC的能力。CE-CT诊断非SN的ROC曲线下面积为0.765(95%置信区间[CI]:0.666 - 0.846),EOB-MRI为0.877(95%CI:0.793 - 0.936),CE-CT联合EOB-MRI为0.908(95%CI:0.830 - 0.958)。对于所有大小非SN肿瘤的识别,CE-CT的敏感性、特异性和准确性分别为71.4%、81.6%和75.5%;EOB-MRI分别为96.4%、78.9%和89.3%;CE-CT联合EOB-MRI分别为98.2%、84.2%和92.5%。这些结果表明,与单独使用任何一种方式相比,CE-CT联合EOB-MRI对HCC大体分类提供了更准确的影像学评估。
