Bürgin Stefan, Rohr Nadja, Fischer Jens
Division of Dental Materials and Engineering, Department of Reconstructive Dentistry and Temporomandibular Disorders, University Center for Dental Medicine Basel, University of Basel, Hebelstrasse 3, 4056, Basel, Switzerland.
Head Face Med. 2017 May 19;13(1):9. doi: 10.1186/s13005-017-0142-4.
Aim of the study was to verify the efficiency of Martens hardness measurements in detecting the degradation of composite resin cements during artificial aging.
Four cements were used: Variolink II (VL2), RelyX Unicem 2 Automix (RUN), PermaFlo DC (PDC), and DuoCem (DCM). Specimens for Martens hardness measurements were light-cured and stored in water at 37 °C for 1 day to allow complete polymerization (baseline). Subsequently the specimens were artificially aged by water storage at 37 °C or thermal cycling (n = 6). Hardness was measured at baseline as well as after 1, 4, 9 and 16 days of aging. Specimens for indirect tensile strength measurements were produced in a similar manner. Indirect tensile strength was measured at baseline and after 16 days of aging (n = 10). The results were statistically analyzed using one-way ANOVA (α = 0.05).

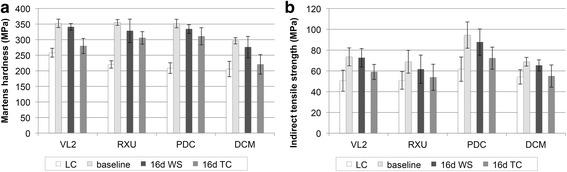

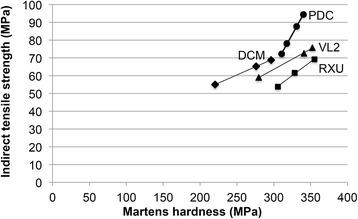

After water storage for 16 days hardness was significantly reduced for VL2, RUN and DCM while hardness of PDC as well as indirect tensile strength of all cements were not significantly affected. Thermal cycling significantly reduced both, hardness and indirect tensile strength for all cements. No general correlation was found between Martens hardness and indirect tensile strength. However, when each material was analyzed separately, relative change of hardness and of indirect tensile strength revealed a strong linear correlation.
Martens hardness is a sensible test method to assess aging of resin composite cements during thermal cycling that is easy to perform.
本研究的目的是验证马氏硬度测量在检测复合树脂水门汀人工老化过程中降解情况的有效性。
使用了四种水门汀:Variolink II(VL2)、RelyX Unicem 2 Automix(RUN)、PermaFlo DC(PDC)和DuoCem(DCM)。用于马氏硬度测量的试样经光固化后在37℃水中储存1天以使其完全聚合(基线)。随后,将试样在37℃水中储存或进行热循环以进行人工老化(n = 6)。在基线以及老化1、4、9和16天后测量硬度。以类似方式制备用于间接拉伸强度测量的试样。在基线和老化16天后测量间接拉伸强度(n = 10)。使用单向方差分析对结果进行统计学分析(α = 0.05)。
储存16天后,VL2、RUN和DCM的硬度显著降低,而PDC的硬度以及所有水门汀的间接拉伸强度均未受到显著影响。热循环显著降低了所有水门汀的硬度和间接拉伸强度。未发现马氏硬度与间接拉伸强度之间存在普遍相关性。然而,当分别分析每种材料时,硬度和间接拉伸强度的相对变化显示出很强的线性相关性。
马氏硬度是一种易于实施的、用于评估树脂复合水门汀在热循环过程中老化情况的灵敏测试方法。
