Relationship of the sinus anatomy to surface landmarks is a function of the sinus size difference between the right and left side: Anatomical study based on CT angiography.

BACKGROUND

Several cadaveric studies demonstrate reliable localization of the transverse sinus and the transverse sigmoid junction (TSJ). These studies use the line drawn from the inion to the posterior root of the zygoma (IZ) and the asterion, respectively. We investigated how the size difference between the right and left transverse sinuses (TS) and sigmoid sinuses (SS) affected the accuracy of their respective superficial landmarks, particularly with regards to where this relationship may result in unsafe and/or complicated surgical access.

METHODS

We utilized Vitrea software to render three-dimensional images based on computed tomographic angiography (CTA). We measured the relationship between the TS and SS to their respective superficial landmarks.

RESULTS

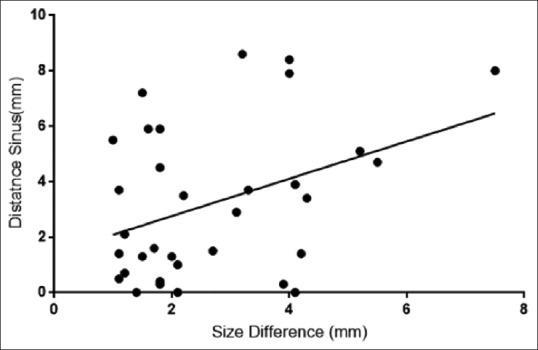

We analyzed 50 patients in this study. The distal TS was found caudal to the inion-to-zygoma (IZ) line on average by 5.0 ± 4.3 mm on the right and 6.4 ± 9.3 mm on the left. The mid TS was found cranial on average 3.5 ± 5.7 mm on the right and 3.2 ± 6.0 mm cranial on the left to the superior nuchal line (SNL). The distance from the asterion to the SS was 11.5 ± 2.4 mm medial on the right and 12.1 ± 4.4 mm medial on the left. The average distance was greater on the left than the right when using the IZ landmark. This was directly proportional to the size difference of the sinuses ( = 0.15, = 0.03).

CONCLUSIONS

Statistically significant differences between the right and left TS and SS were seen in terms of size. This appeared to correlate nicely to the differences observed between the locations of the TSs' and their respective superficial landmarks.
