Queen's University Belfast, School of Pharmacy, Medical Biology Centre, 97 Lisburn Road, Belfast BT9 7BL, Northern Ireland, United Kingdom.
PATH, PO Box 900922, Seattle, WA 98109, United States.
J Control Release. 2017 Nov 10;265:30-40. doi: 10.1016/j.jconrel.2017.07.032. Epub 2017 Jul 25.

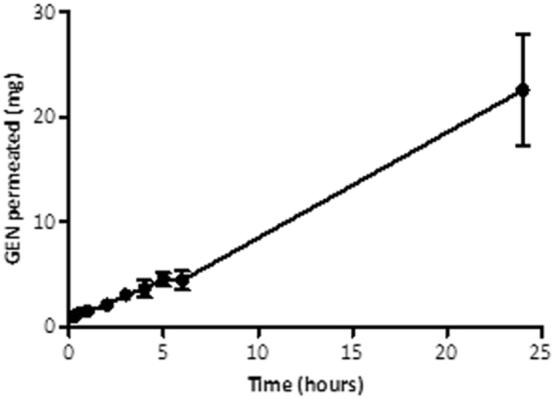

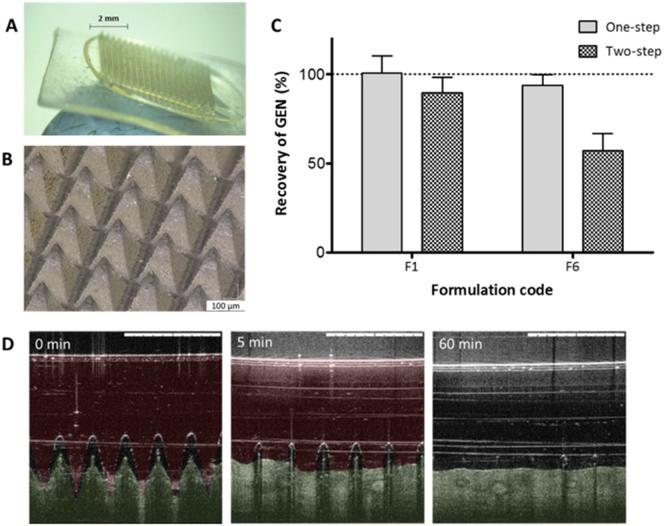

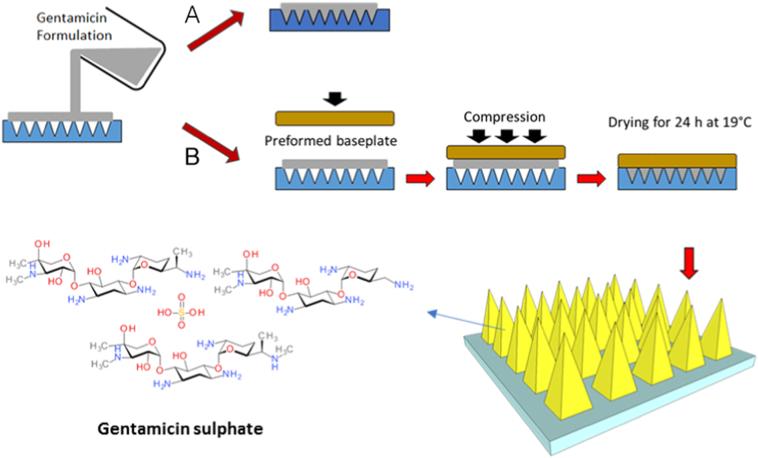

Neonatal infections are a leading cause of childhood mortality in low-resource settings. World Health Organization guidelines for outpatient treatment of possible serious bacterial infection (PSBI) in neonates and young infants when referral for hospital treatment is not feasible include intramuscular gentamicin (GEN) and oral amoxicillin. GEN is supplied as an aqueous solution of gentamicin sulphate in vials or ampoules and requires health care workers to be trained in dose calculation or selection of an appropriate dose based on the patient's weight band and to have access to safe injection supplies and appropriate sharps disposal. A simplified formulation, packaging, and delivery method to treat PSBI in low-resource settings could decrease user error and expand access to lifesaving outpatient antibiotic treatment for infants with severe infection during the neonatal period. We developed dissolving polymeric microneedles (MN) arrays to deliver GEN transdermally. MN arrays were produced from aqueous blends containing 30% (w/w) of GEN and two polymers approved by the US Food and Drug Administration: sodium hyaluronate and poly(vinylpyrrolidone). The arrays (19×19 needles and 500μm height) were mechanically strong and were able to penetrate a skin simulant to a depth of 378μm. The MN arrays were tested in vitro using a Franz Cell setup delivering approximately 4.45mg of GEN over 6h. Finally, three different doses (low, medium, and high) of GEN delivered by MN arrays were tested in an animal model. Maximum plasma levels of GEN were dose-dependent and ranged between 2 and 5μg/mL. The time required to reach these levels post-MN array application ranged between 1 and 6h. This work demonstrated the potential of dissolving MN arrays to deliver GEN transdermally at therapeutic levels in vivo.
新生儿感染是资源匮乏环境下儿童死亡的主要原因。当无法转至医院治疗时,世界卫生组织针对资源匮乏环境中新生儿和婴儿门诊治疗疑似严重细菌感染(PSBI)的指南包括肌内注射庆大霉素(GEN)和口服阿莫西林。GEN 以硫酸庆大霉素水溶液的形式装在小瓶或安瓿中,这需要医护人员接受剂量计算或根据患者体重带选择适当剂量的培训,并能够获得安全的注射用品和适当的锐器处理。在资源匮乏环境中,采用简化的配方、包装和给药方法治疗 PSBI 可减少使用者错误,并扩大在新生儿期严重感染的婴儿中使用救命的门诊抗生素治疗的机会。我们开发了用于经皮递送 GEN 的可溶解聚合物微针(MN)阵列。MN 阵列由含有 30%(w/w)GEN 和两种经美国食品和药物管理局批准的聚合物的水性混合物制成:透明质酸钠和聚(乙烯基吡咯烷酮)。这些阵列(19×19 根针,高度 500μm)机械强度高,能够穿透皮肤模拟物至 378μm 的深度。MN 阵列在体外使用 Franz 细胞装置进行了测试,该装置在 6 小时内输送了约 4.45mg 的 GEN。最后,在动物模型中测试了 MN 阵列递送的三种不同剂量(低、中、高)的 GEN。GEN 的最大血浆水平与剂量呈依赖性,范围在 2 至 5μg/mL 之间。MN 阵列应用后达到这些水平所需的时间在 1 至 6 小时之间。这项工作证明了可溶解 MN 阵列在体内以治疗水平经皮递送 GEN 的潜力。
