Tsunematsu Hiroto, Uyeda Akiko, Yamamoto Nobuhiko, Sugo Noriyuki
Cellular and Molecular Neurobiology, Graduate School of Frontier Biosciences, Osaka University, 1-3 Yamadaoka, Suita, Osaka, 565-0871, Japan.
BMC Neurosci. 2017 Aug 1;18(1):55. doi: 10.1186/s12868-017-0377-9.
CRISPR/Cas9 system is a powerful method to investigate the role of genes by introducing a mutation selectively and efficiently to specific genome positions in cell and animal lines. However, in primary neuron cultures, this method is affected by the issue that the effectiveness of CRISPR/Cas9 is different in each neuron. Here, we report an easy, quick and reliable method to identify mutants induced by the CRISPR/Cas9 system at a single neuron level, using immunocytochemistry (ICC) and fluorescence imaging.

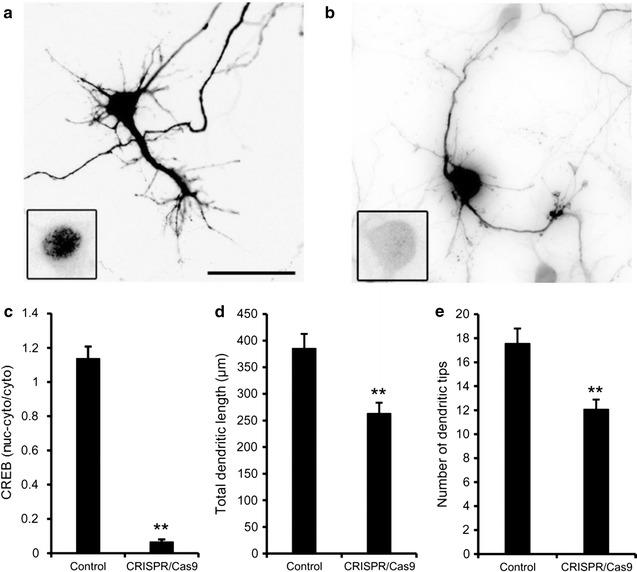

Dissociated cortical cells were transfected with CRISPR/Cas9 plasmids targeting the transcription factor cAMP-response element binding protein (CREB). Fluorescence ICC with CREB antibody and quantitative analysis of fluorescence intensity demonstrated that CREB expression disappeared in a fraction of the transfected neurons. The downstream FOS expression was also decreased in accordance with suppressed CREB expression. Moreover, dendritic arborization was decreased in the transfected neurons which lacked CREB immunoreactivity.
Detection of protein expression is efficient to identify individual postmitotic neurons with CRISPR/Cas9-mediated gene disruption in primary cortical cultures. The present method composed of CRISPR/Cas9 system, ICC and fluorescence imaging is applicable to study the function of various genes at a single-neuron level.
CRISPR/Cas9系统是一种通过在细胞系和动物模型中选择性、高效地在特定基因组位置引入突变来研究基因功能的强大方法。然而,在原代神经元培养中,该方法受到CRISPR/Cas9在每个神经元中有效性不同这一问题的影响。在此,我们报道一种简单、快速且可靠的方法,利用免疫细胞化学(ICC)和荧光成像在单个神经元水平鉴定由CRISPR/Cas9系统诱导的突变体。
将靶向转录因子环磷酸腺苷反应元件结合蛋白(CREB)的CRISPR/Cas9质粒转染至解离的皮质细胞。用CREB抗体进行荧光ICC及荧光强度定量分析表明,在一部分转染神经元中CREB表达消失。下游的FOS表达也随着CREB表达的抑制而降低。此外,在缺乏CREB免疫反应性的转染神经元中树突分支减少。
在原代皮质培养中,检测蛋白表达对于鉴定经CRISPR/Cas9介导基因破坏的单个有丝分裂后神经元是有效的。由CRISPR/Cas9系统、ICC和荧光成像组成的本方法适用于在单个神经元水平研究各种基因的功能。
