Practical Cluster Models for a Layered β-NiOOH Material.

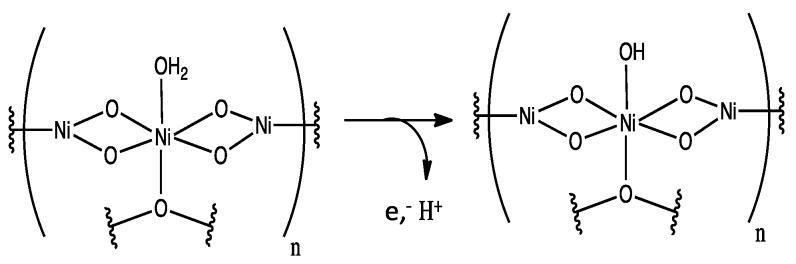

Due to the high oxygen evolution reaction (OER) activity, stability, and abundance of NiOx materials, they are found to be promising catalysts, competitive with expensive metal oxides such as IrO₂ and RuO₂. From a theoretical point of view, studies reported in the literature so far are mostly based on density functional theory using periodic slab models for the bulk and surface of β-NiOOH, one of the active NiOx phases. However, cluster models are a valid method to investigate many aspects about structure, charge carrier transport properties, and OER activity of β-NiOOH. Hence, here we present new cluster models for the surface of β-NiOOH, where the oxygen atoms are bonded to Mg effective core potentials (ECPs) mimicking neighboring atom cores. This cluster embedding procedure is superior to saturating the cluster with hydrogen atoms, and to using other atomic ECPs for β-NiOOH. We find that layered materials such as β-NiOOH are more vulnerable to geometrical rupture and therefore a cluster approach requires additional care in choosing the embedding approach. We evaluated the models by using them to calculate the energy required for water adsorption and deprotonation, which are essential ingredients for OER. Specifically, our results agree with previous slab models that the first deprotonation reaction step requires a large amount of energy. In addition, we find that water and hydroxyl groups have high adsorption energy and therefore the first deprotonation step is limiting the reaction efficiency.
