Śmietana Mateusz, Mroczyński Robert, Kwietniewski Norbert
Institute of Microelectronics and Optoelectronics, Warsaw University of Technology, Koszykowa 75, Warsaw 00-662, Poland.
Materials (Basel). 2014 Feb 17;7(2):1249-1260. doi: 10.3390/ma7021249.

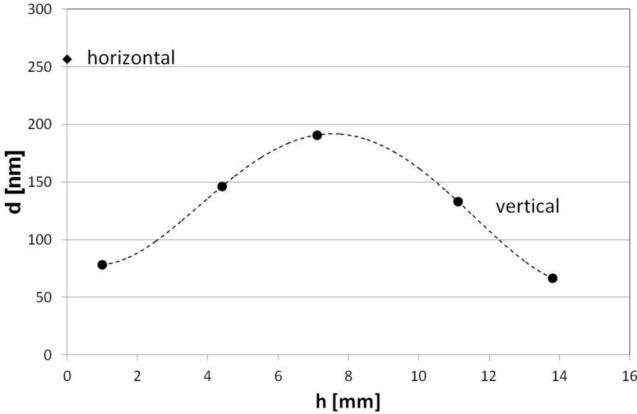

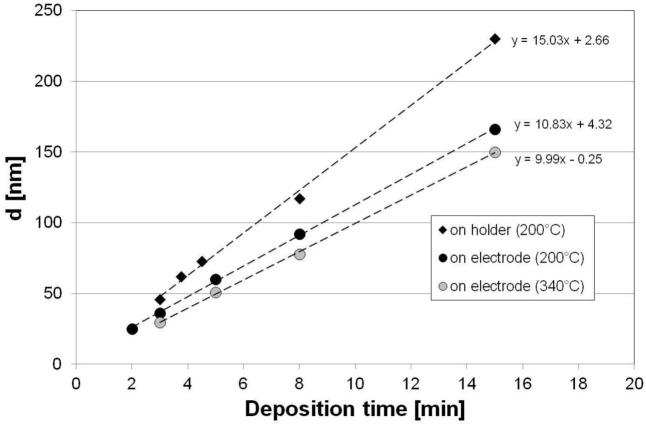

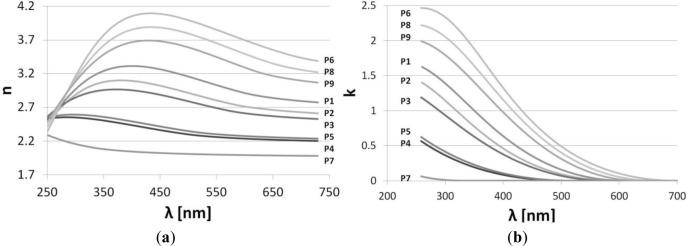

In this paper we investigate influence of radio frequency plasma enhanced chemical vapor deposition (RF PECVD) process parameters, which include gas flows, pressure and temperature, as well as a way of sample placement in the reactor, on optical properties and deposition rate of silicon nitride (SiN) thin films. The influence of the process parameters has been determined using Taguchi's orthogonal tables approach. As a result of elevating samples above the electrode, it has been found that deposition rate strongly increases with distance between sample and the stage electrode, and reaches its maximum 7 mm above the electrode. Moreover, the refractive index of the films follows increase of the thickness. The effect can be observed when the thickness of the film is below 80 nm. It has been also found that when the deposition temperature is reduced down to 200 °C, as required for many temperature-sensitive substrate materials, the influence of the substrate material (Si or oxidized Si) can be neglected from the point of view of the properties of the films. We believe that the obtained results may help in designing novel complex in shape devices, where optical properties and thickness of thin plasma-deposited coatings need to be well defined.
在本文中,我们研究了射频等离子体增强化学气相沉积(RF PECVD)工艺参数对氮化硅(SiN)薄膜光学性能和沉积速率的影响,这些参数包括气体流量、压力和温度,以及样品在反应釜中的放置方式。工艺参数的影响已通过田口正交表法确定。将样品置于电极上方后发现,沉积速率随样品与台电极之间的距离显著增加,并在电极上方7 mm处达到最大值。此外,薄膜的折射率随厚度增加。当薄膜厚度低于80 nm时可观察到这种效应。还发现,按照许多对温度敏感的衬底材料的要求,将沉积温度降至200°C时,从薄膜性能的角度来看,衬底材料(Si或氧化Si)的影响可以忽略不计。我们相信,所获得的结果可能有助于设计形状复杂的新型器件,其中需要明确薄等离子体沉积涂层的光学性能和厚度。
