Lucini Tiago, Ricardo Panizzi Antônio
Department of Zoology, Federal University of Paraná, P.O. Box 19020, Curitiba, PR 81531-980 Brazil.
Laboratory of Entomology, Embrapa National Wheat Research Center, P.O. Box 3081, Passo Fundo, RS 99001-970, Brazil.
J Insect Sci. 2017 Jan 1;17(2). doi: 10.1093/jisesa/iex044.

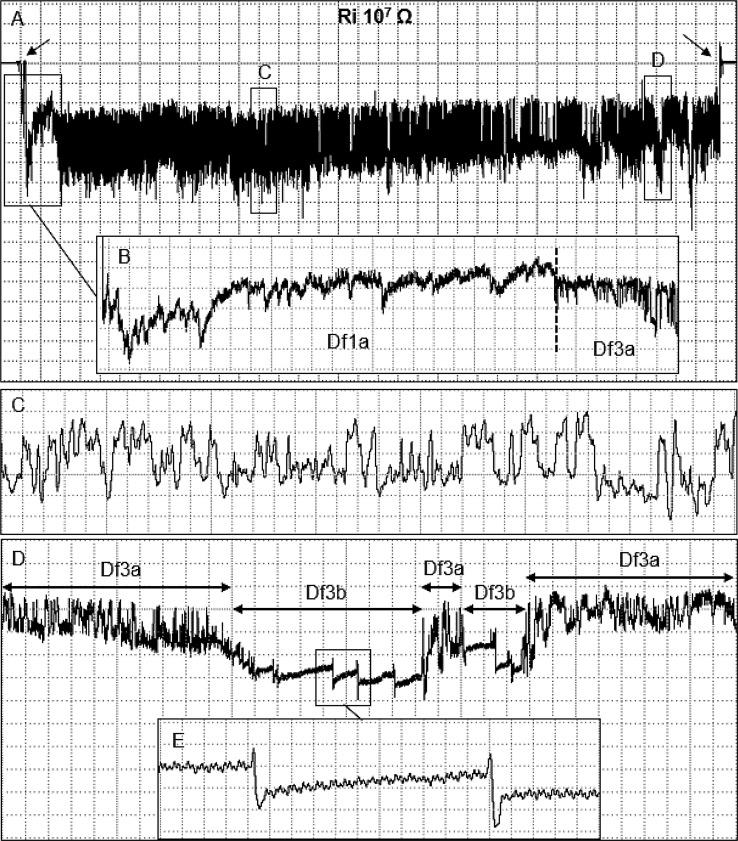

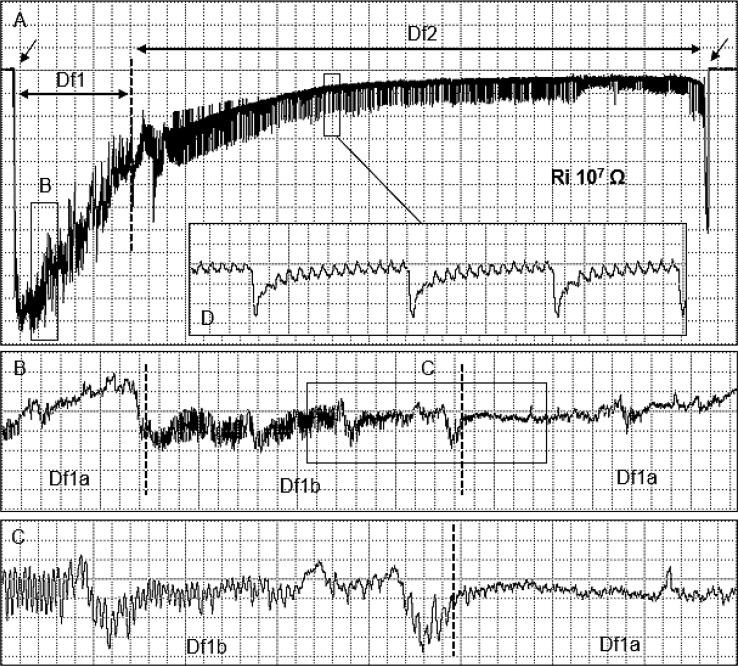

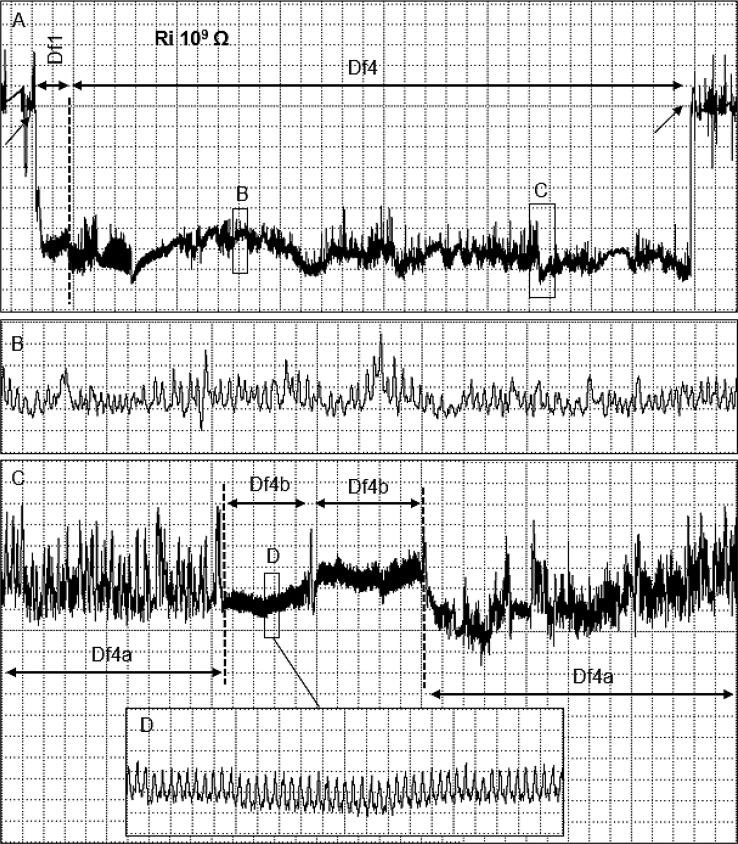

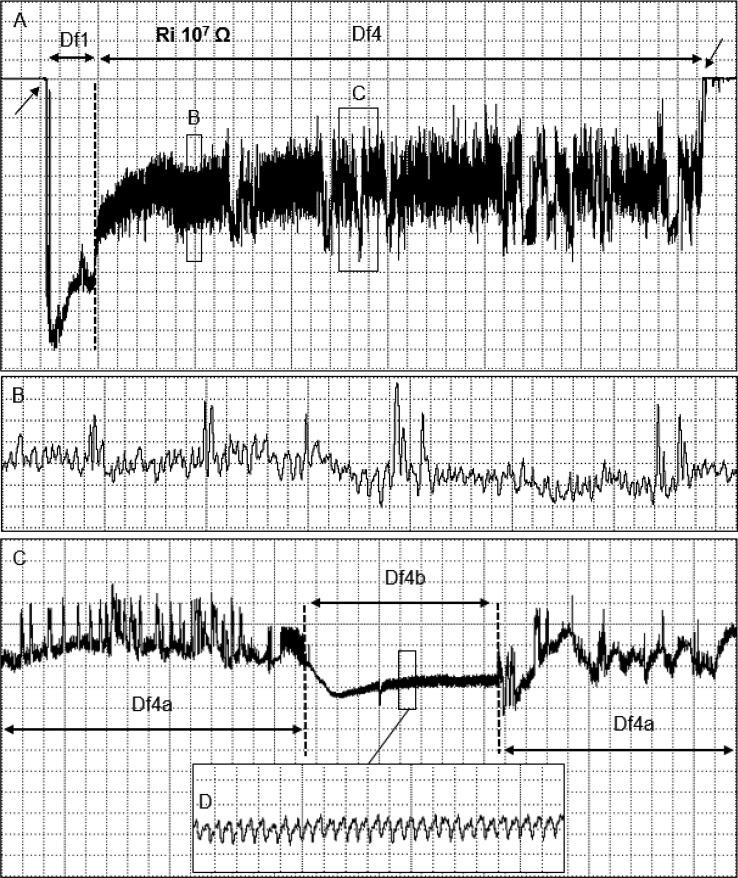

The stink bug Dichelops furcatus (F.) (Heteroptera: Pentatomidae) has increased in abundance in recent years on the wheat, Triticum aestivum L., crop cultivated in the southern region of Brazil. To investigate the probing (stylet penetration) behaviors and nonprobing behaviors of D. furcatus on wheat plants, the electrical penetration graph or electropenetrography (EPG) technique was applied. Nine EPG waveforms (types/subtypes) were identified and described on stem and on ear head of wheat plants, as follows: Z, Np, Df1a, Df1b, Df2, Df3a, Df3b, Df4a, and Df4b. For the waveforms Df1, Df2, Df3, and Df4, stylets were severed to determine, via histological studies, the location of the stylet tip and/or salivary sheath tip in plant tissue. Waveform Z was visually correlated with the bug standing still on the plant surface, whereas during Np the bug was walking. Df1a and Df1b represent initial stylet insertion, deep penetration of the stylets into the plant tissue, and secretion of salivary sheath. Df2 represents xylem sap ingestion on stem and on ear head. Waveforms Df3a and Df4a were related to the cell rupturing feeding strategy (laceration and maceration tactics) on stem and on ear head (seed endosperm), respectively. Waveforms Df3b and Df4b represent ingestion of cellular contents derived from cell rupturing activities on stem and on ear head (seed endosperm), respectively. With this fundamental knowledge in hand, future studies can use EPG to develop novel pest management solutions.
近年来,在巴西南部种植的小麦(Triticum aestivum L.)作物上,褐蝽Dichelops furcatus (F.)(半翅目:蝽科)的数量有所增加。为了研究褐蝽在小麦植株上的刺探(口针穿刺)行为和非刺探行为,采用了电穿透图或电穿透记录(EPG)技术。在小麦植株的茎和穗上识别并描述了9种EPG波形(类型/子类型),如下:Z、Np、Df1a、Df1b、Df2、Df3a、Df3b、Df4a和Df4b。对于波形Df1、Df2、Df3和Df4,切断口针以通过组织学研究确定口针尖端和/或唾液鞘尖端在植物组织中的位置。波形Z在视觉上与虫子静止在植物表面相关,而在Np期间虫子在行走。Df1a和Df1b代表口针的初始插入、口针深入植物组织以及唾液鞘的分泌。Df2代表在茎和穗上吸食木质部汁液。波形Df3a和Df4a分别与茎和穗(种子胚乳)上的细胞破裂取食策略(撕裂和浸渍策略)有关。波形Df3b和Df4b分别代表从茎和穗(种子胚乳)上的细胞破裂活动中摄取细胞内容物。有了这些基础知识,未来的研究可以利用EPG开发新的害虫管理解决方案。
