Wang Xinlong, Reddy Divya D, Nalawade Sahil S, Pal Suvra, Gonzalez-Lima F, Liu Hanli
University of Texas at Arlington, Department of Bioengineering, Arlington, Texas, United States.
University of Texas at Arlington, Department of Mathematics, Arlington, Texas, United States.
Neurophotonics. 2018 Jan;5(1):011004. doi: 10.1117/1.NPh.5.1.011004. Epub 2017 Sep 19.

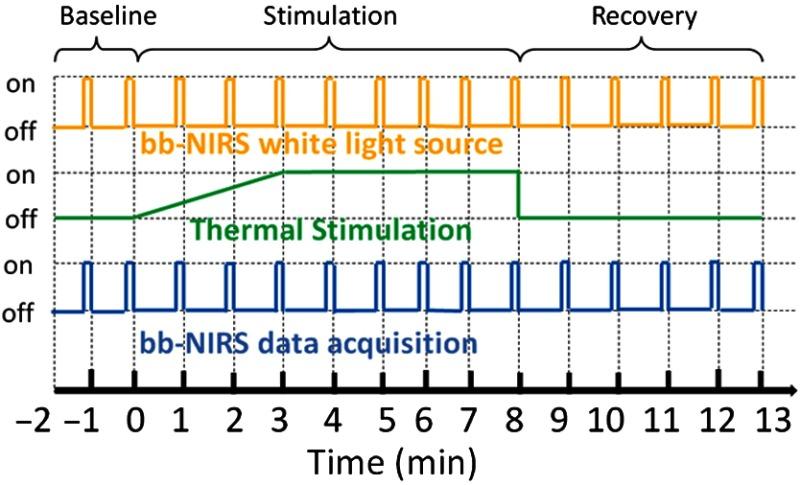

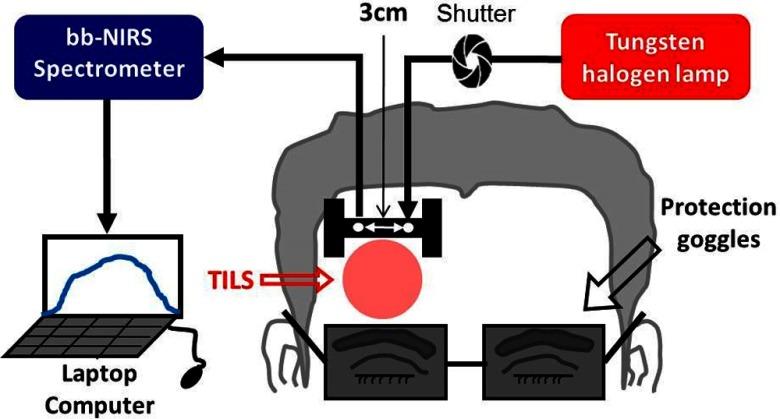

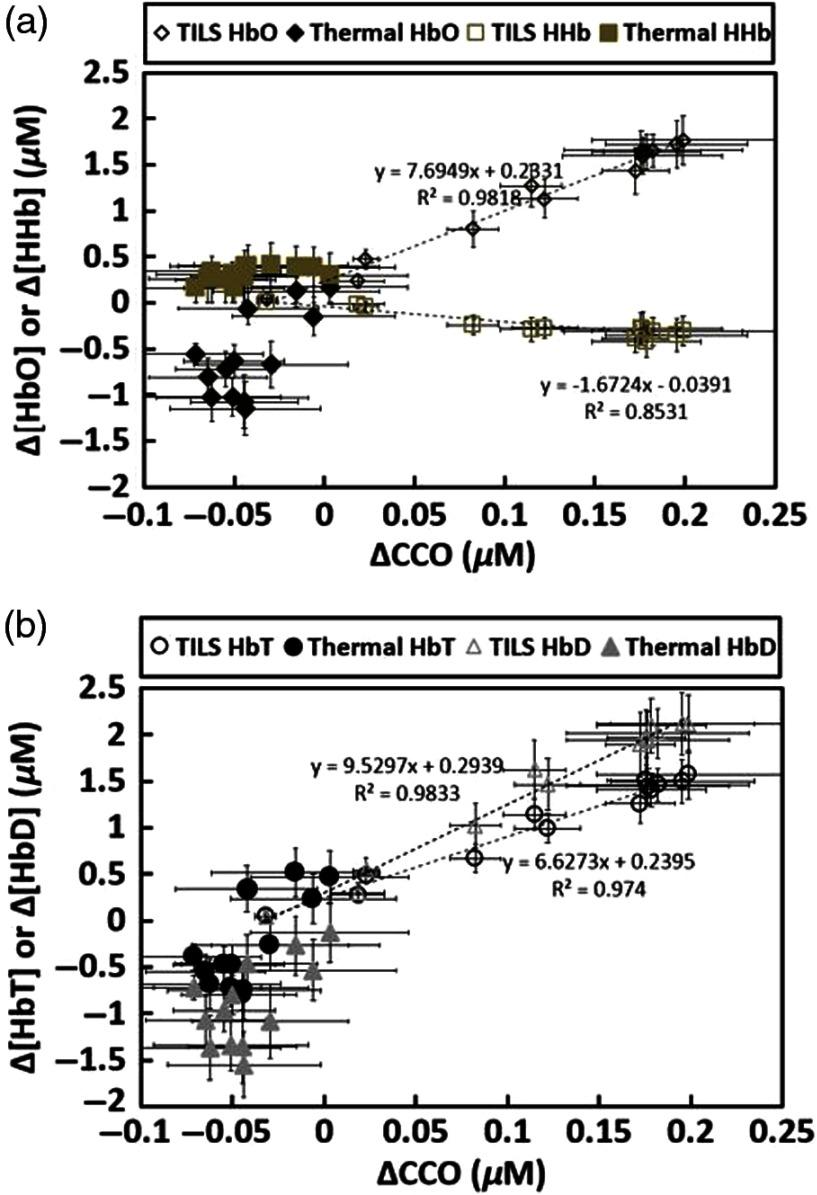

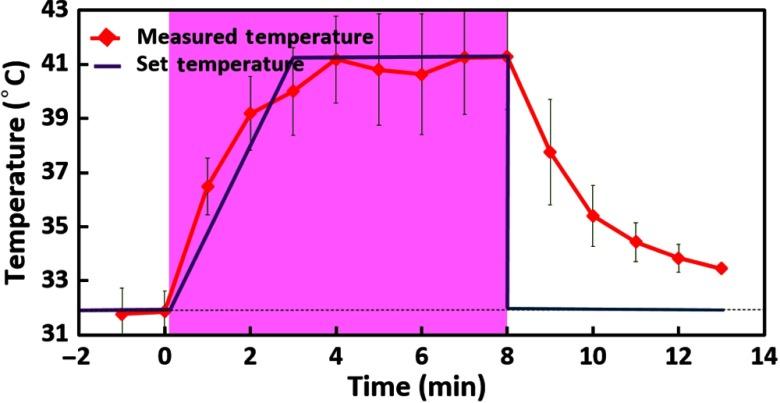

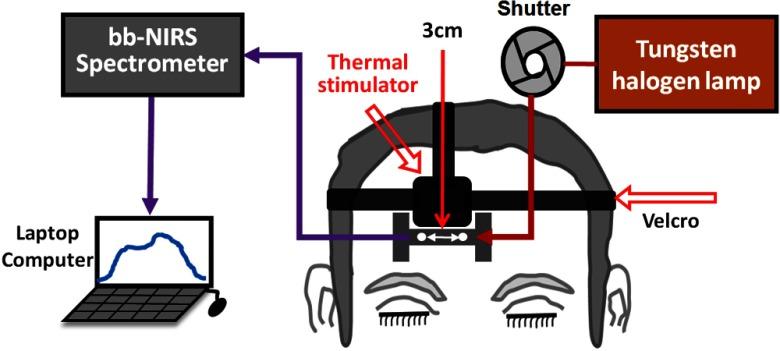

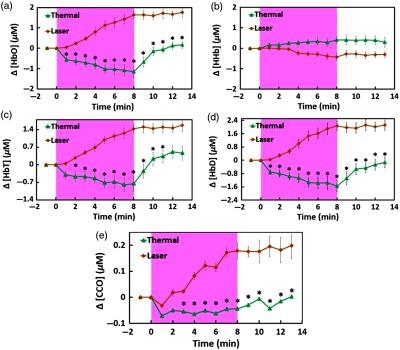

Transcranial infrared laser stimulation (TILS) has shown effectiveness in improving human cognition and was investigated using broadband near-infrared spectroscopy (bb-NIRS) in our previous study, but the effect of laser heating on the actual bb-NIRS measurements was not investigated. To address this potential confounding factor, 11 human participants were studied. First, we measured time-dependent temperature increases on forehead skin using clinical-grade thermometers following the TILS experimental protocol used in our previous study. Second, a subject-averaged, time-dependent temperature alteration curve was obtained, based on which a heat generator was controlled to induce the same temperature increase at the same forehead location that TILS was delivered on each participant. Third, the same bb-NIRS system was employed to monitor hemodynamic and metabolic changes of forehead tissue near the thermal stimulation site before, during, and after the heat stimulation. The results showed that cytochrome-c-oxidase of forehead tissue was not significantly modified by this heat stimulation. Significant differences in oxyhemoglobin, total hemoglobin, and differential hemoglobin concentrations were observed during the heat stimulation period versus the laser stimulation. The study demonstrated a transient hemodynamic effect of heat-based stimulation distinct to that of TILS. We concluded that the observed effects of TILS on cerebral hemodynamics and metabolism are not induced by heating the skin.
经颅红外激光刺激(TILS)已被证明在改善人类认知方面有效,并且在我们之前的研究中使用宽带近红外光谱(bb-NIRS)进行了调查,但未研究激光加热对实际bb-NIRS测量的影响。为了解决这个潜在的混杂因素,我们对11名人类参与者进行了研究。首先,我们按照之前研究中使用的TILS实验方案,使用临床级温度计测量前额皮肤随时间的温度升高。其次,获得了受试者平均的、随时间变化的温度变化曲线,并据此控制一个热发生器,以在与TILS作用于每个参与者相同的前额位置诱导相同的温度升高。第三,使用相同的bb-NIRS系统监测热刺激前后热刺激部位附近前额组织的血流动力学和代谢变化。结果表明,这种热刺激并未显著改变前额组织的细胞色素c氧化酶。在热刺激期间与激光刺激期间相比,观察到氧合血红蛋白、总血红蛋白和血红蛋白浓度差异有显著差异。该研究证明了基于热的刺激与TILS不同的短暂血流动力学效应。我们得出结论,观察到的TILS对脑血流动力学和代谢的影响不是由皮肤加热引起的。
