The Design of Radical Stacks: Nitronyl-Nitroxide-Substituted Heteropentacenes.

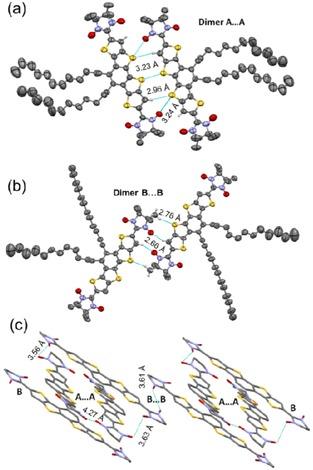

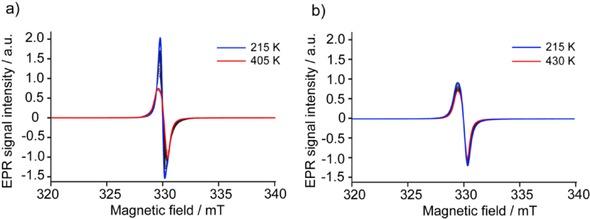

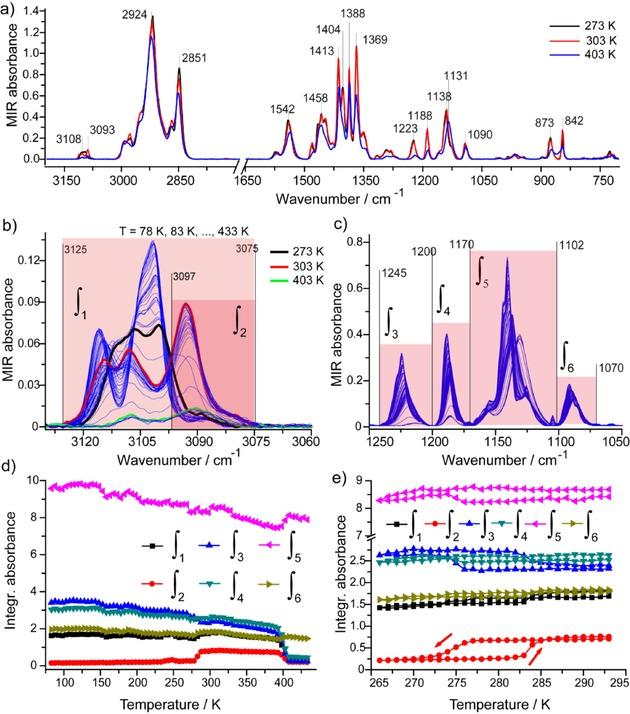

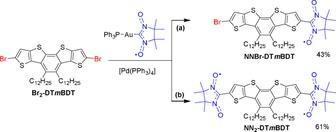

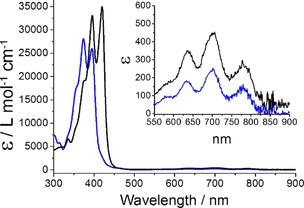

The first alkyl chain-anchored heteropentacene, dithieno[2,3-;2',3'-']benzo-[1,2-;3,4-']dithiophene (DTBDT), mono- or disubstituted with a nitronyl nitroxide group has been prepared through a cross-coupling synthetic procedure of the corresponding dibromo-derivative (Br-DTBDT) with a nitronyl nitroxide-2-ide gold(I) complex. The synthesized nitroxides possess high kinetic stability, which allowed us to investigate their structure and thermal, optical, electrochemical, and magnetic properties. Single-crystal X-ray diffraction of both mono- and diradicals revealed that the nitronyl nitroxide group lies almost in the same plane as the nearest side thiophene ring. Such arrangement favors formation of edge-to-edge dimers, which then form close π-stacks surrounded by interdigitating alkyl chains. Before melting, these nitronyl nitroxide radical substituted molecules undergo at least two different phase transitions (PTs): for the monoradical, PTs are reversible, accompanied by hysteresis, and occur near 13 and 83 °C; the diradical upon heating shows a reversible PT with hysteresis in the temperature range 2-11 °C and an irreversible PT near 135 °C. PTs of this type are absent in Br-DTBDT. Therefore, the step-by-step substitution of bromine atoms by nitronyl nitroxide groups changes the structural organization of DTBDT and induces the emergence of PTs. This knowledge may facilitate crystal engineering of π-stacked paramagnets and related molecular spin devices.
