Mendoza García María A, Izadifar Mohammad, Chen Xiongbiao
Departamento de Bioingeniería, Escuela de Ingeniería y Ciencias, Instituto Tecnológico y de Estudios Superiores de Monterrey Campus Estado de México, 52926 Cd López Mateos, Estado de México, Mexico.
Division of Biomedical Engineering, College of Engineering, University of Saskatchewan, Saskatoon, SK S7N5A9, Canada.
J Funct Biomater. 2017 Nov 1;8(4):48. doi: 10.3390/jfb8040048.

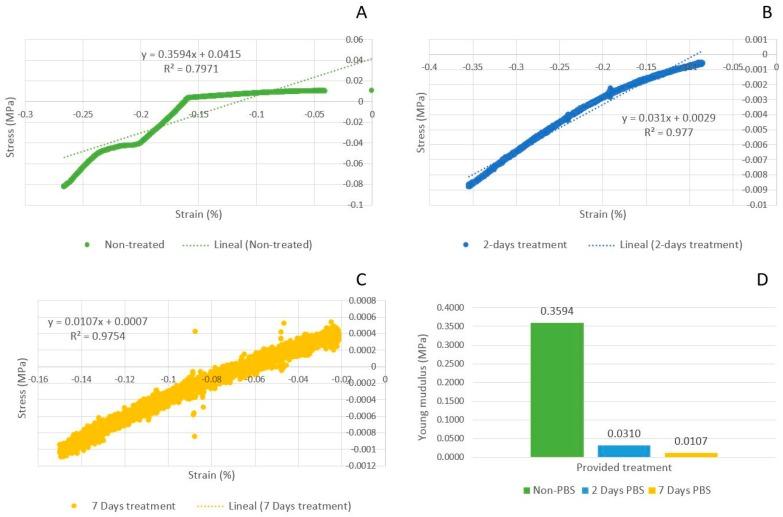

Three-dimensional (3D) printing is an emerging technology for the fabrication of scaffolds to repair/replace damaged tissue/organs in tissue engineering. This paper presents our study on 3D printed alginate scaffolds treated with phosphate buffered saline (PBS) and polyethyleneimine (PEI) coating and their impacts on the surface morphology and cellular response of the printed scaffolds. In our study, sterile alginate was prepared by means of the freeze-drying method and then, used to prepare the hydrogel for 3D printing into calcium chloride, forming 3D scaffolds. Scaffolds were treated with PBS for a time period of two days and seven days, respectively, and PEI coating; then they were seeded with Schwann cells (RSC96) for the examination of cellular response (proliferation and differentiation). In addition, swelling and stiffness (Young's modulus) of the treated scaffolds was evaluated, while their surface morphology was assessed using scanning electron microscopy (SEM). SEM images revealed significant changes in scaffold surface morphology due to degradation caused by the PBS treatment over time. Our cell proliferation assessment over seven days showed that a two-day PBS treatment could be more effective than seven-day PBS treatment for improving cell attachment and elongation. While PEI coating of alginate scaffolds seemed to contribute to cell growth, Schwann cells stayed round on the surface of alginate over the period of cell culture. In conclusion, PBS-treatment may offer the potential to induce surface physical cues due to degradation of alginate, which could improve cell attachment post cell-seeding of 3D-printed alginate scaffolds.
三维(3D)打印是一种新兴技术,用于制造支架以修复/替换组织工程中受损的组织/器官。本文介绍了我们对经磷酸盐缓冲盐水(PBS)处理和聚乙烯亚胺(PEI)涂层的3D打印藻酸盐支架及其对打印支架表面形态和细胞反应影响的研究。在我们的研究中,通过冷冻干燥法制备无菌藻酸盐,然后将其用于制备水凝胶以3D打印到氯化钙中,形成3D支架。支架分别用PBS处理两天和七天,并进行PEI涂层处理;然后接种雪旺细胞(RSC96)以检查细胞反应(增殖和分化)。此外,评估了处理后支架的肿胀和硬度(杨氏模量),同时使用扫描电子显微镜(SEM)评估其表面形态。SEM图像显示,随着时间的推移,由于PBS处理引起的降解,支架表面形态发生了显著变化。我们为期七天的细胞增殖评估表明,两天的PBS处理在改善细胞附着和伸长方面可能比七天的PBS处理更有效。虽然藻酸盐支架的PEI涂层似乎有助于细胞生长,但在细胞培养期间,雪旺细胞在藻酸盐表面保持圆形。总之,PBS处理可能具有诱导藻酸盐降解从而产生表面物理信号的潜力,这可以改善3D打印藻酸盐支架接种细胞后的细胞附着。
