Pickenhahn V D, Darras V, Dziopa F, Biniecki K, De Crescenzo G, Lavertu M, Buschmann M D
Dept. Chemical Engineering and Inst. Biomedical Engineering , Ecole Polytechnique , Montreal , QC , Canada . Email:
ANRis Pharmaceuticals Inc. , Kirkland , QC , Canada.
Chem Sci. 2015 Aug 1;6(8):4650-4664. doi: 10.1039/c5sc00038f. Epub 2015 May 7.

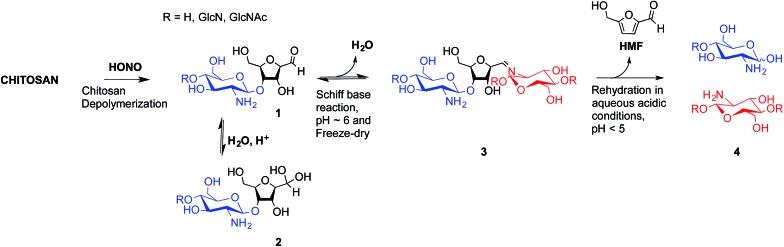

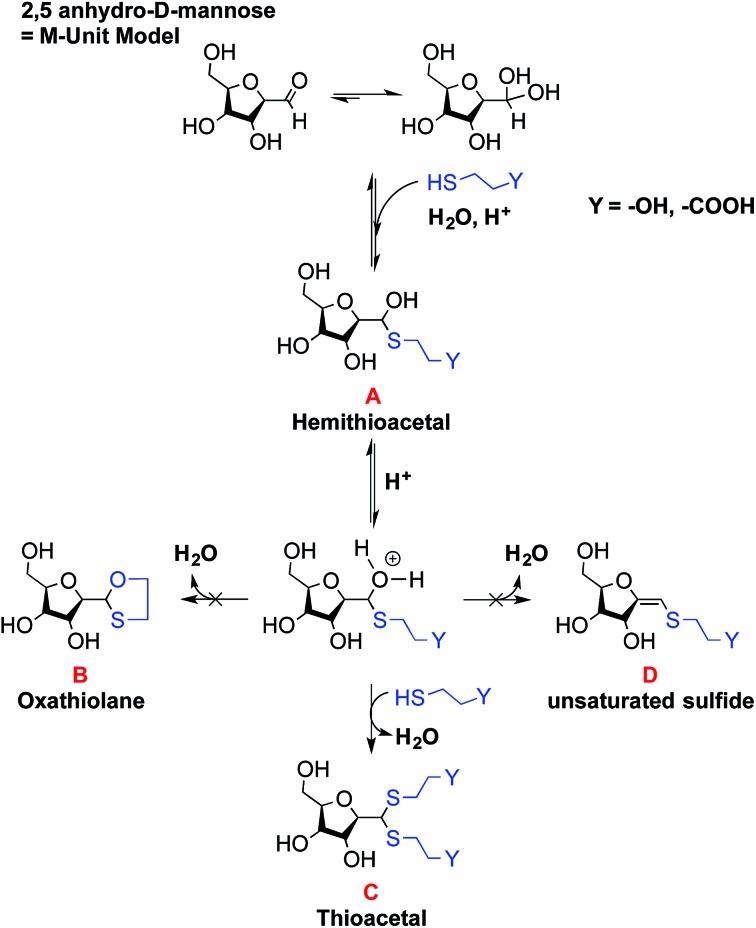

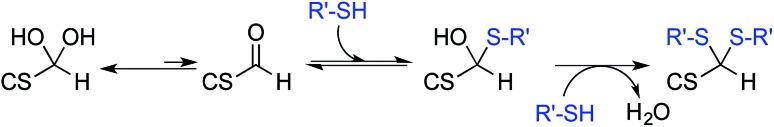

Chitosan (CS) end-group chemistry is a conjugation strategy that has been minimally exploited in the literature to date. Although the open-chain form of the CS reducing extremity bears a reactive aldehyde moiety, the most common method to generate a reactive end-group on CS is nitrous acid depolymerization, which produces a 2,5-anhydro-d-mannose unit (M-Unit) bearing also an aldehyde moiety. However, the availability of the latter might be low, since previous literature suggests that its hydrated and non-reactive form, namely the -diol form, is predominant in acidic aqueous conditions. Oxime-click chemistry has been used to react on such aldehydes with various degrees of success, but the use of a co-solvent and additional chemical reagents remain necessary to obtain the desired and stable covalent linkage. In this study, we have assessed the availability of the aldehyde reactive form on chitosan treated with nitrous acid. We have also assessed its reactivity towards thiol-bearing molecules in acidic conditions where CS amino groups are fully protonated and thus unreactive towards aldehyde. LC-MS and NMR spectroscopy methods (H and DOSY, respectively) confirmed the regioselective thioacetylation of the reactive aldehyde with conversion rates between 55 and 70% depending on the thiol molecule engaged. The stabilization of the hemithioacetal intermediates into the corresponding thioacetals was also found to be facilitated upon freeze-drying of the reaction medium. The PEGylation of the CS M-Unit aldehyde by thioacetylation was also performed as a direct application of the proposed conjugation approach. CS--PEG block copolymers were successfully synthesized and were used to prepare block ionomer complexes with plasmid DNA, as revealed by their spherical morphology the rod-like/globular/toroidal morphology observed for polyplexes prepared using native unmodified chitosan. This novel aqueous thiol-based conjugation strategy constitutes an alternative to the oxime-click pathway; it could be applicable to other polymers.
壳聚糖(CS)端基化学是一种共轭策略,迄今为止在文献中得到的应用极少。尽管CS还原端的开链形式带有一个反应性醛基,但在CS上生成反应性端基的最常见方法是亚硝酸解聚,该方法会产生一个同样带有醛基的2,5-脱水-D-甘露糖单元(M单元)。然而,后者的可用性可能较低,因为先前的文献表明,其水合且无反应性的形式,即二醇形式,在酸性水性条件下占主导地位。肟点击化学已被用于与此类醛发生反应,取得了不同程度的成功,但仍需要使用共溶剂和额外的化学试剂来获得所需的稳定共价键。在本研究中,我们评估了经亚硝酸处理的壳聚糖上醛反应性形式的可用性。我们还评估了其在酸性条件下对含硫醇分子的反应性,在这种条件下CS氨基完全质子化,因此对醛无反应性。LC-MS和NMR光谱方法(分别为H和DOSY)证实了反应性醛的区域选择性硫代乙酰化,转化率在55%至70%之间,具体取决于所使用的硫醇分子。还发现,反应介质冻干后,半硫代乙缩醛中间体向相应硫代乙缩醛的稳定化得到了促进。通过硫代乙酰化对CS M单元醛进行聚乙二醇化也作为所提出的共轭方法的直接应用进行了研究。成功合成了CS-PEG嵌段共聚物,并用于制备与质粒DNA的嵌段离聚物复合物,其球形形态表明了这一点 而使用天然未修饰壳聚糖制备的多聚体观察到的是棒状/球状/环形形态。这种基于硫醇的新型水性共轭策略构成了肟点击途径的一种替代方法;它可能适用于其他聚合物。
