Zaffagnini Stefano, Signorelli Cecilia, Grassi Alberto, Hoshino Yuichi, Kuroda Ryosuke, de Sa Darren, Sundemo David, Samuelsson Kristian, Musahl Volker, Karlsson Jon, Sheean Andrew, Burnham Jeremy M, Lian Jayson, Smith Clair, Popchak Adam, Herbst Elmar, Pfeiffer Thomas, Araujo Paulo, Oostdyk Alicia, Guenther Daniel, Ohashi Bruno, Irrgang James J, Fu Freddie H, Nagamune Kouki, Kurosaka Masahiro, Marcheggiani Muccioli Giulio Maria, Lopomo Nicola, Raggi Federico, Svantesson Eleonor, Hamrin Senorski Eric, Bjoernsson Haukur, Ahlden Mattias, Desai Neel
Investigation performed at IRCCS Istituto Ortopedico Rizzoli, Bologna, Italy.
Orthop J Sports Med. 2018 Dec 18;6(12):2325967118812364. doi: 10.1177/2325967118812364. eCollection 2018 Dec.
It is still uncertain how surgical reconstruction of the anterior cruciate ligament (ACL) is able to restore rotatory laxity of the involved joint. The desired amount of restraint applied by the ACL graft, as compared with the healthy knee, has not been fully clarified.
To quantify the ability of single-bundle anatomic ACL reconstruction using hamstring tendons in reducing the pivot-shift phenomenon immediately after surgery under anesthesia.
Case series; Level of evidence, 4.

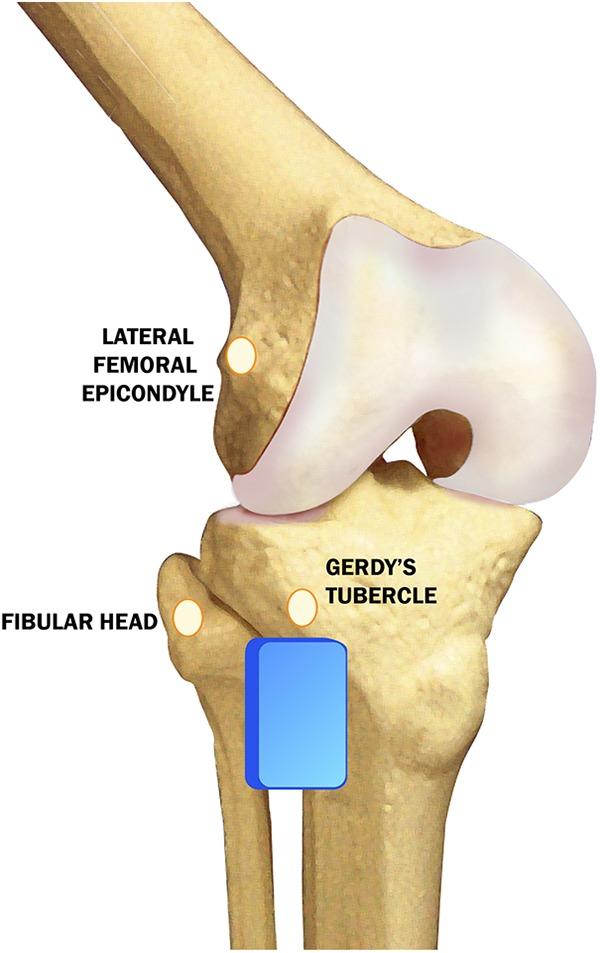

An inertial sensor and image analysis were used at 4 international centers to measure tibial acceleration and lateral compartment translation of the knee, respectively. The standardized pivot-shift test was quantified in terms of the side-to-side difference in laxity both preoperatively and postoperatively with the patient under anesthesia. The reduction in both tibial acceleration and lateral compartment translation after surgery and the side-to-side difference were evaluated using the Wilcoxon signed-rank test. Alpha was set at < .05.
A total of 107 patients were recruited for the study, and data were available for 89 patients. There was a statistically significant reduction in quantitative rotatory knee laxity between preoperatively (inertial sensor, 2.55 ± 4.00 m/s; image analysis, 2.04 ± 2.02 mm) and postoperatively (inertial sensor, -0.54 ± 1.25 m/s; image analysis, -0.10 ± 1.04 mm) between the involved and healthy joints, as measured by the 2 devices ( < .001 for both). Postoperatively, both devices detected a lower rotatory laxity value in the involved joint compared with the healthy joint (inertial sensor, 2.45 ± 0.89 vs 2.99 ± 1.10 m/s, respectively [ < .001]; image analysis, 0.99 ± 0.83 vs 1.09 ± 0.92 mm, respectively [ = .38]).
The data from this study indicated a significant reduction in the pivot shift when compared side to side. Both the inertial sensor and image analysis used for the quantitative assessment of the pivot-shift test could successfully detect restoration of the pivot shift after anatomic single-bundle ACL reconstruction. Future research will examine how pivot-shift control is maintained over time and correlation of the pivot shift with return to full activity in patients with an ACL injury.
目前仍不确定前交叉韧带(ACL)的手术重建如何恢复受累关节的旋转松弛度。与健康膝关节相比,ACL移植物所需的约束量尚未完全阐明。
量化使用腘绳肌腱进行单束解剖ACL重建在麻醉下手术后立即减少轴移现象的能力。
病例系列;证据等级,4级。
在4个国际中心使用惯性传感器和图像分析分别测量膝关节的胫骨加速度和外侧间室平移。标准化轴移试验根据麻醉下患者术前和术后松弛度的左右差异进行量化。使用Wilcoxon符号秩检验评估术后胫骨加速度和外侧间室平移的降低以及左右差异。α设定为<0.05。
共有107例患者纳入本研究,89例患者有可用数据。通过两种设备测量,受累关节与健康关节之间术前(惯性传感器,2.55±4.00 m/s;图像分析,2.04±2.02 mm)和术后(惯性传感器,-0.54±1.25 m/s;图像分析,-0.10±1.04 mm)的定量旋转膝关节松弛度有统计学显著降低(两者均P<0.001)。术后,两种设备检测到受累关节的旋转松弛度值均低于健康关节(惯性传感器分别为2.45±0.89与2.99±1.10 m/s[P<0.001];图像分析分别为0.99±0.83与1.09±0.92 mm[P = 0.38])。
本研究数据表明左右对比时轴移明显减少。用于轴移试验定量评估的惯性传感器和图像分析均可成功检测解剖单束ACL重建后轴移的恢复情况。未来研究将探讨轴移控制如何随时间维持以及ACL损伤患者轴移与恢复完全活动的相关性。
