高功率脉冲磁控溅射法制备的CuO/TiO₂在可见光发光二极管照射下对聚酯的光催化性能:氧化剂、离子效应及活性氧物种研究

Photocatalytic Performance of CuO/TiO₂ Deposited by HiPIMS on Polyester under Visible Light LEDs: Oxidants, Ions Effect, and Reactive Oxygen Species Investigation.

作者信息

Zeghioud Hichem, Assadi Aymen Amine, Khellaf Nabila, Djelal Hayet, Amrane Abdeltif, Rtimi Sami

机构信息

Department of Process Engineering, Faculty of Engineering, Badji Mokhtar University, P.O. Box 12, 23000 Annaba, Algeria.

Ecole Nationale Supérieure de Chimie de Rennes, Université de Rennes 1, CNRS, UMR 6226, Allée de Beaulieu, CS 50837, 35708 Rennes CEDEX 7, France.

出版信息

Materials (Basel). 2019 Jan 29;12(3):412. doi: 10.3390/ma12030412.

Abstract

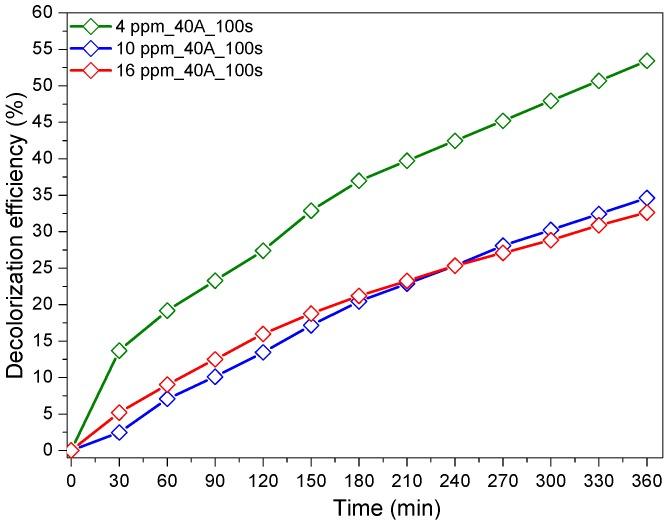

In the present study, we propose a new photocatalytic interface prepared by high-power impulse magnetron sputtering (HiPIMS), and investigated for the degradation of Reactive Green 12 (RG12) as target contaminant under visible light light-emitting diodes (LEDs) illumination. The CuO/TiO₂ nanoparticulate photocatalyst was sequentially sputtered on polyester (PES). The photocatalyst formulation was optimized by investigating the effect of different parameters such as the sputtering time of CuO, the applied current, and the deposition mode (direct current magnetron sputtering, DCMS or HiPIMS). The results showed that the fastest RG12 degradation was obtained on CuO/TiO₂ sample prepared at 40 A in HiPIMS mode. The better discoloration efficiency of 53.4% within 360 min was found in 4 mg/L of RG12 initial concentration and 0.05% Cu/PES as determined by X-ray fluorescence. All the prepared samples contained a TiO₂ under-layer with 0.02% Ti/PES. By transmission electron microscopy (TEM), both layers were seen uniformly distributed on the PES fibers. The effect of the surface area to volume (dye volume) ratio (SA/V) on the photocatalytic efficiency was also investigated for the discoloration of 4 mg/L RG12. The effect of the presence of different chemicals (scavengers, oxidant or mineral pollution or salts) in the photocatalytic medium was studied. The optimization of the amount of added hydrogen peroxide (H₂O₂) and potassium persulfate (K₂S₂O₈) was also investigated in detail. Both, H₂O₂ and K₂S₂O₈ drastically affected the discoloration efficiency up to 7 and 6 times in reaction rate constants, respectively. Nevertheless, the presence of Cu (metallic nanoparticles) and NaCl salt inhibited the reaction rate of RG12 discoloration by about 4 and 2 times, respectively. Moreover, the systematic study of reactive oxygen species' (ROS) contribution was also explored with the help of iso-propanol, methanol, and potassium dichromate as OH radicals, holes (h⁺), and superoxide ion-scavengers, respectively. Scavenging results showed that O₂ played a primary role in RG12 removal; however, OH radicals' and photo-generated holes' (h⁺) contributions were minimal. The CuO/TiO₂ photocatalyst was found to have a good reusability and stability up to 21 cycles. Ions' release was quantified by means of inductively coupled plasma mass spectrometry (ICP-MS) showing low Cu-ions' release.

摘要

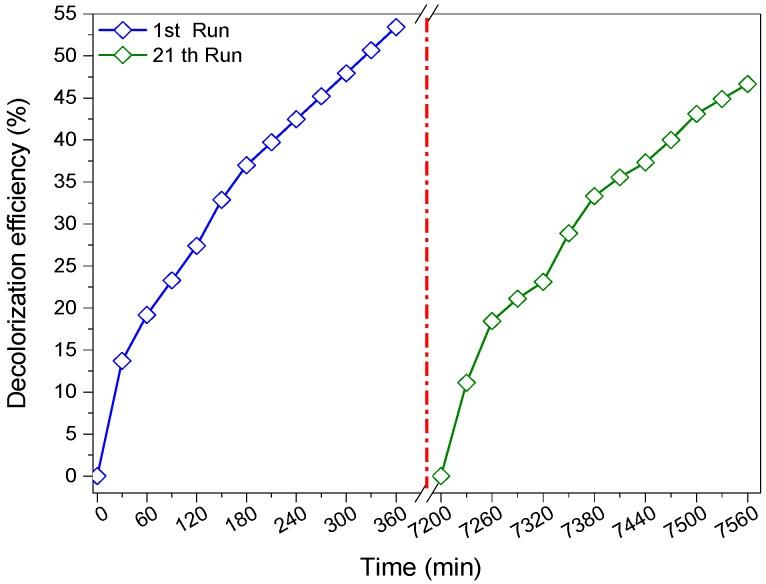

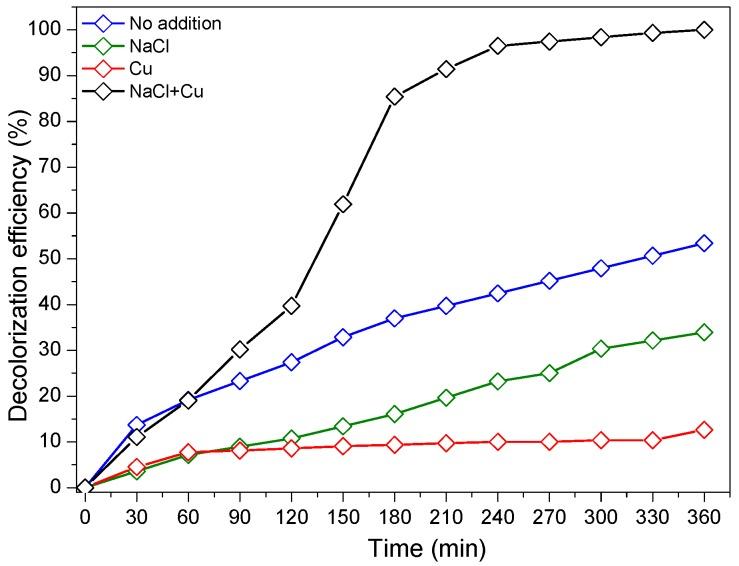

在本研究中,我们提出了一种通过高功率脉冲磁控溅射(HiPIMS)制备的新型光催化界面,并研究了其在可见光发光二极管(LED)照射下对活性绿12(RG12)作为目标污染物的降解情况。CuO/TiO₂纳米颗粒光催化剂依次溅射在聚酯(PES)上。通过研究不同参数的影响,如CuO的溅射时间、施加电流和沉积模式(直流磁控溅射,DCMS或HiPIMS),对光催化剂配方进行了优化。结果表明,在HiPIMS模式下以40 A制备的CuO/TiO₂样品上获得了最快的RG12降解速度。通过X射线荧光测定,在4 mg/L的RG12初始浓度和0.05% Cu/PES的条件下,在360分钟内发现了53.4%的更好的脱色效率。所有制备的样品都含有一层0.02% Ti/PES的TiO₂底层。通过透射电子显微镜(TEM)观察到两层均匀分布在PES纤维上。还研究了表面积与体积(染料体积)比(SA/V)对4 mg/L RG12脱色的光催化效率的影响。研究了光催化介质中不同化学物质(清除剂、氧化剂或矿物污染或盐)的存在的影响。还详细研究了添加过氧化氢(H₂O₂)和过硫酸钾(K₂S₂O₈)量的优化。H₂O₂和K₂S₂O₈分别使反应速率常数下的脱色效率大幅提高至7倍和6倍。然而,Cu(金属纳米颗粒)和NaCl盐的存在分别使RG12脱色反应速率降低了约4倍和2倍。此外,还分别借助异丙醇、甲醇和重铬酸钾作为羟基自由基、空穴(h⁺)和超氧离子清除剂,对活性氧物种(ROS)的贡献进行了系统研究。清除结果表明,O₂在RG12去除中起主要作用;然而,羟基自由基和光生空穴(h⁺)的贡献最小。发现CuO/TiO₂光催化剂具有良好的可重复使用性和稳定性,可达21个循环。通过电感耦合等离子体质谱(ICP-MS)对离子释放进行了定量,结果显示Cu离子释放量较低。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/c9e8/6385099/9f65a0493b56/materials-12-00412-g001.jpg
