Traffic Light Recognition Based on Binary Semantic Segmentation Network.

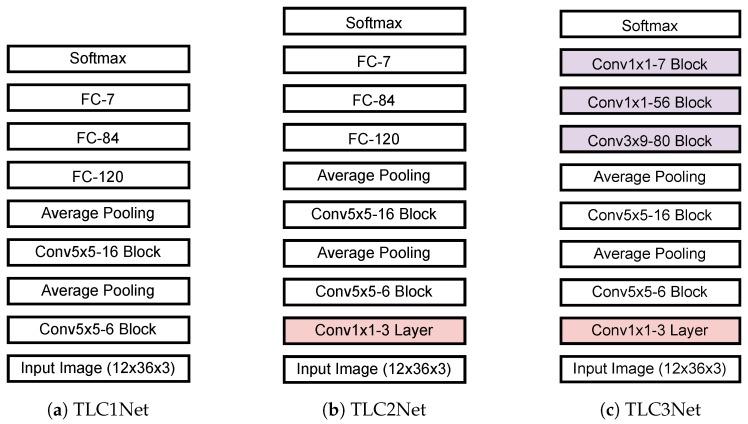

A traffic light recognition system is a very important building block in an advanced driving assistance system and an autonomous vehicle system. In this paper, we propose a two-staged deep-learning-based traffic light recognition method that consists of a pixel-wise semantic segmentation technique and a novel fully convolutional network. For candidate detection, we employ a binary-semantic segmentation network that is suitable for detecting small objects such as traffic lights. Connected components labeling with an eight-connected neighborhood is applied to obtain bounding boxes of candidate regions, instead of the computationally demanding region proposal and regression processes of conventional methods. A fully convolutional network including a convolution layer with three filters of (1 × 1) at the beginning is designed and implemented for traffic light classification, as traffic lights have only a set number of colors. The simulation results show that the proposed traffic light recognition method outperforms the conventional two-staged object detection method in terms of recognition performance, and remarkably reduces the computational complexity and hardware requirements. This framework can be a useful network design guideline for the detection and recognition of small objects, including traffic lights.
