Qi Kezhen, Li Yi, Xie Yubo, Liu Shu-Yuan, Zheng Kun, Chen Zhe, Wang Ruidan
Institute of Catalysis for Energy and Environment, College of Chemistry and Chemical Engineering, Shenyang Normal University, Shenyang, China.
Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai University, Tianjin, China.
Front Chem. 2019 Apr 2;7:91. doi: 10.3389/fchem.2019.00091. eCollection 2019.

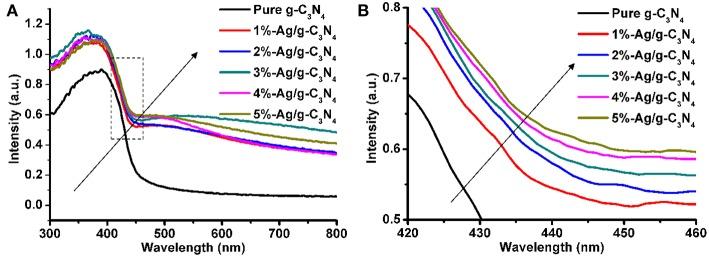

The g-CN porous nanosheets with different loading amount of Ag nanoparticles (NPs) are successfully prepared by a simple liquid-phase reduction method. These Ag/g-CN composites have an improved photocatalytic performance for decomposing organic pollutants compared with that of pure g-CN nanosheets. Many measurements have been used for characterizing the samples, such as XRD, FTIR, UV-Vis DRS, PL, XPS, EDS, SEM, and TEM. In Ag/g-CN, the Ag NPs are uniformly coated on the g-CN surface, the diameter is mainly in the range of 8~18 nanometers. Loading of Ag NPs expand the response to the visible light for g-CN and increasing the producing rate of photogenerated e-h pairs. The loading of silver NPs obviously enhances the photocatalytic activity of CN nanosheets toward the Rhodamine B (RhB) decomposition under the simulated sunlight irradiation. With different loading amounts of Ag NPs, Ag/g-CN (3 wt% of Ag) showed the highest photocatalytic activity for RhB decomposition among these as-prepared samples, which is 10 times of the rate of pure CN. Based on the experimental results, a possible photocatalytic mechanism for Ag/g-CN is proposed.
通过一种简单的液相还原法成功制备了具有不同银纳米颗粒(NPs)负载量的石墨相氮化碳(g-CN)多孔纳米片。与纯g-CN纳米片相比,这些Ag/g-CN复合材料对有机污染物的光催化分解性能有所提高。已使用多种测量方法对样品进行表征,如XRD、FTIR、UV-Vis DRS、PL、XPS、EDS、SEM和TEM。在Ag/g-CN中,Ag NPs均匀地包覆在g-CN表面,直径主要在8至18纳米范围内。Ag NPs的负载扩展了g-CN对可见光的响应,并提高了光生电子-空穴对的产生速率。银纳米颗粒的负载明显增强了CN纳米片在模拟太阳光照射下对罗丹明B(RhB)分解的光催化活性。在不同的Ag NPs负载量下,Ag/g-CN(3 wt% Ag)在这些制备的样品中对RhB分解表现出最高的光催化活性,是纯CN速率的10倍。基于实验结果,提出了Ag/g-CN可能的光催化机理。
