Case report: Posterior myocardial infarction in presence of right bundle branch block: an old concept with new findings.

BACKGROUND

The diagnosis of acute ischaemic coronary syndromes in presence of an intra-ventricular conduction disturbance represents a clinical challenge. In the cardiac segmentation model the posterior wall is replaced by the basal inferior segment. However, in the clinical scenario of acute coronary syndrome the concept of posterior myocardial infarction (PMI) endures. The association of a PMI and right bundle branch block (RBBB) is a rare condition characterised by broad R waves and ventricular repolarization disorders in right precordial leads in both entities, which could lead to misinterpretation and delay in reperfusion therapy.

CASE SUMMARY

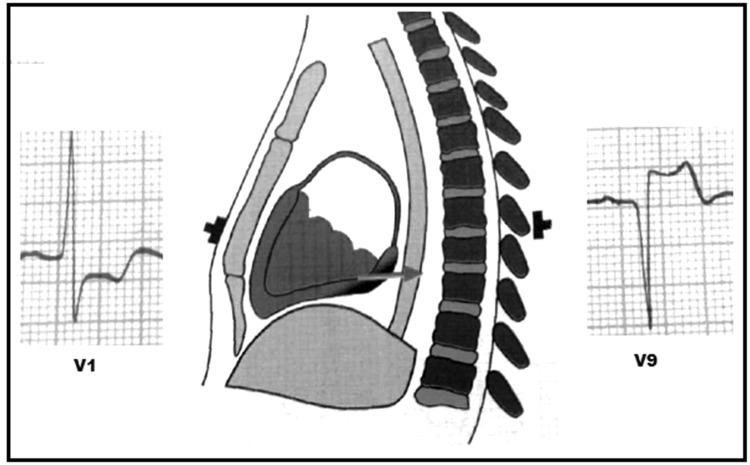

We describe a case report of a 74-year-old man with acute chest pain and an electrocardiogram with broad R waves, a 4 mm ST-segment downsloping (excessively discordant) in right precordial leads, RBBB, and ST-segment elevation in posterior leads. There was resolution of ST-segment downsloping in right precordial leads after percutaneous coronary intervention and stenting of the circumflex artery, with disturbance of the repolarization process only attributable to RBBB.

DISCUSSION

Patients with acute chest pain with RBBB and a ST segment with an excessive downsloping (out of proportion of what is expected in isolated RBBB) suggest PMI with occlusion of the circumflex coronary artery.
