Lotfy Vivian F, Basta Altaf H
Cellulose and Paper Department, National Research Centre, Dokki-12622 Cairo, Egypt.
R Soc Open Sci. 2019 May 1;6(5):190173. doi: 10.1098/rsos.190173. eCollection 2019 May.

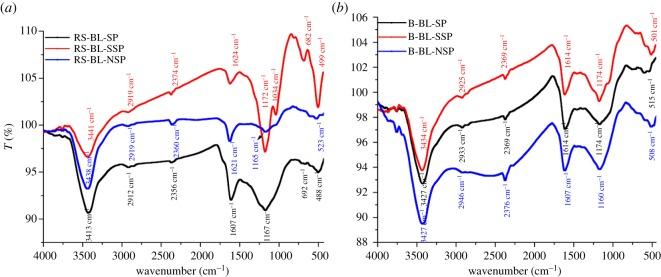

During the production of paper pulp, the waste water loaded with organic materials from pulping process is discharged. Therefore, water treatment should be performed before disposing of such effluent. The use of such effluent for production of activated carbon will be effective in omitting the wastewater treatment and in obtaining the product required in many industries. In this respect, this paper deals with evaluating the performance of activated carbons (ACs) produced from black liquors (BLs) as by-products from three pulping processes of rice straw (RS) and sugar-cane bagasse (SCB), namely: alkaline, sulfite and neutral sulfite, which are coded SP, SSP and NSP, respectively. Elemental analysis and thermal analysis (TGA and DTGA) are carried out on the BLs, while the surface area ( ), micro-/mesoporous distribution, adsorption capacity of methylene blue (MB) and iodine (I-value), as well as Fourier transform infrared spectra (FT-IR) and scanning electron micrograph (SEM) are studied on synthesizing ACs. The optimal pulping approach for achieving BL-based AC, with the following characteristics: specific surface area ( ) ∼ 921 and 545 m g, MB adsorption capacity 238 and 370 mg g, and I-value 928 and 1255 mg g of BL-based ACs, are from neutral sulfite pulping of SCB (B-NSP) and RS (RS-NSP), respectively. These finding data are ascribed to the carbon content of BL, as well as greatest total volume ( 0.786 and 0.701 cm g) together with decreasing the volume of micropores/total (38 and 48%) of BL-NSP-ACs. It is interesting to note that the AC provided from RS-NSP has greater adsorption capacity for I and MB than the AC produced from RS-pulp fibres.
在纸浆生产过程中,会排放出含有来自制浆过程有机物质的废水。因此,在排放此类废水之前应进行水处理。将此类废水用于生产活性炭,对于省去废水处理以及获得许多行业所需产品将是有效的。在这方面,本文探讨了评估由稻草(RS)和甘蔗渣(SCB)的三种制浆工艺(即碱性、亚硫酸盐和中性亚硫酸盐制浆工艺,分别编码为SP、SSP和NSP)的副产物黑液(BLs)制备的活性炭(ACs)的性能。对黑液进行了元素分析和热分析(TGA和DTGA),同时对合成的活性炭研究了其表面积、微孔/介孔分布、亚甲基蓝(MB)和碘的吸附容量(碘值),以及傅里叶变换红外光谱(FT-IR)和扫描电子显微镜图像(SEM)。实现具有以下特性的基于黑液的活性炭的最佳制浆方法:比表面积分别约为921和545 m²/g,MB吸附容量分别为238和370 mg/g,碘值分别为928和1255 mg/g的基于黑液的活性炭,分别来自甘蔗渣的中性亚硫酸盐制浆(B-NSP)和稻草的中性亚硫酸盐制浆(RS-NSP)。这些发现数据归因于黑液的碳含量,以及最大总体积(分别为0.786和0.701 cm³/g),同时减少了BL-NSP-ACs的微孔体积/总体积(分别为38%和48%)。值得注意的是,RS-NSP制备的活性炭对碘和亚甲基蓝的吸附容量比由RS纸浆纤维制备的活性炭更大。
