Li Yang, Wang Xiaoxia, Liu Mengli, Luo Heng, Deng Lianwen, Huang Lei, Wei Shuang, Zhou Congli, Xu Yuanhong
College of Materials Science and Engineering, Qingdao University, Qingdao 266071, China.
College of Life Sciences, Qingdao University, Qingdao 266071, China.
Nanomaterials (Basel). 2019 Jun 21;9(6):906. doi: 10.3390/nano9060906.

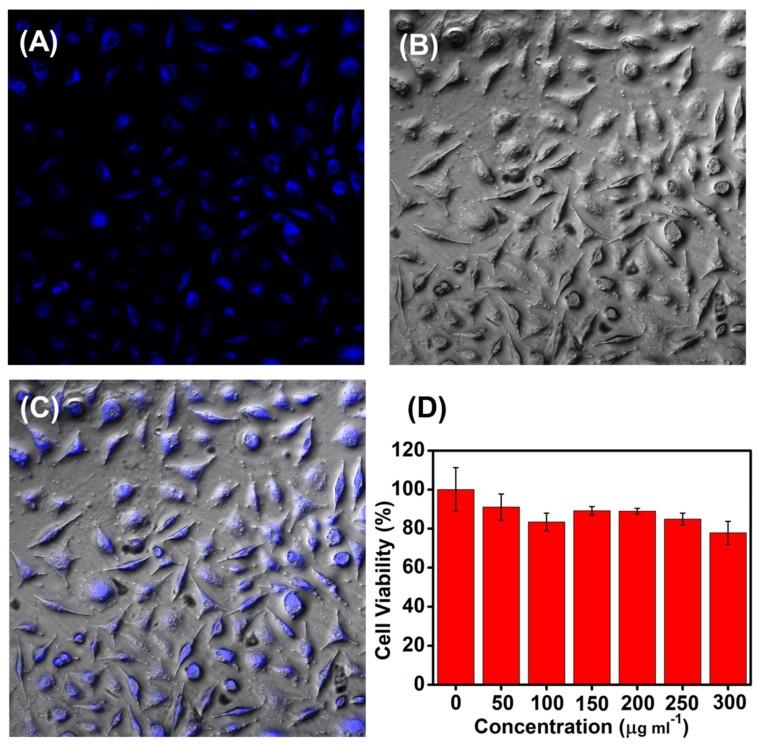

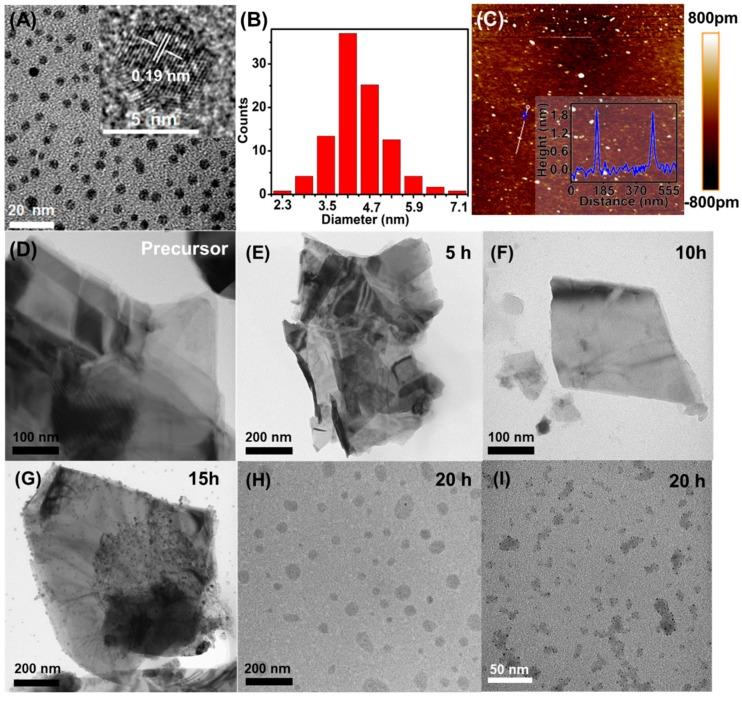

A convenient bipolar-electrode (BPE) electrochemical method was engineered to produce molybdenum disulfide (MoS) quantum dots (QDs) using pure phosphate buffer (PBS) as the electrolyte and the MoS powder as the precursor. Meanwhile, the corresponding by-product precipitate was studied, in which MoS nanosheets were observed. The BPE design would not be restricted by the shape and size of the MoS precursor. It could lead to the defect generation and 2H → 1T phase variation of the MoS, resulting in the formation of nanosheets and finally the QDs. The as-prepared MoS QDs exhibited high photoluminescence (PL) quantum yield of 13.9% and average lateral size of 4.4 ± 0.2 nm, respectively. Their excellent PL property, low cytotoxicity, and good aqueous dispersion offer promising applicability in PL staining and cell imaging. Meanwhile, the as-obtained byproduct containing the nanosheets could be used as an effective electromagnetic wave (EMW) absorber. The minimum reflection loss (RL) value was -54.13 dB at the thickness of 3.3 mm. The corresponding bandwidth with efficient attenuation (<-10 dB) was up to 7.04 GHz (8.8-15.84 GHz). The as-obtained EMW performance was far superior over most previously reported MoS-based nanomaterials.
设计了一种便捷的双极电极(BPE)电化学方法,以纯磷酸盐缓冲液(PBS)为电解质,二硫化钼(MoS)粉末为前驱体来制备二硫化钼(MoS)量子点(QDs)。同时,对相应的副产物沉淀进行了研究,其中观察到了MoS纳米片。BPE设计不受MoS前驱体形状和尺寸的限制。它可导致MoS的缺陷生成和2H→1T相变异,从而形成纳米片并最终形成量子点。所制备的MoS量子点的光致发光(PL)量子产率高达13.9%,平均横向尺寸为4.4±0.2nm。它们优异的PL性能、低细胞毒性和良好的水分散性在PL染色和细胞成像方面具有广阔的应用前景。同时,所获得的含有纳米片的副产物可作为一种有效的电磁波(EMW)吸收剂。在厚度为3.3mm时,最小反射损耗(RL)值为-54.13dB。具有有效衰减(<-10dB)的相应带宽高达7.04GHz(8.8-15.84GHz)。所获得的EMW性能远优于大多数先前报道的基于MoS的纳米材料。
