Electrically Tunable Fresnel Lens in Twisted-Nematic Liquid Crystals Fabricated by a Sagnac Interferometer.

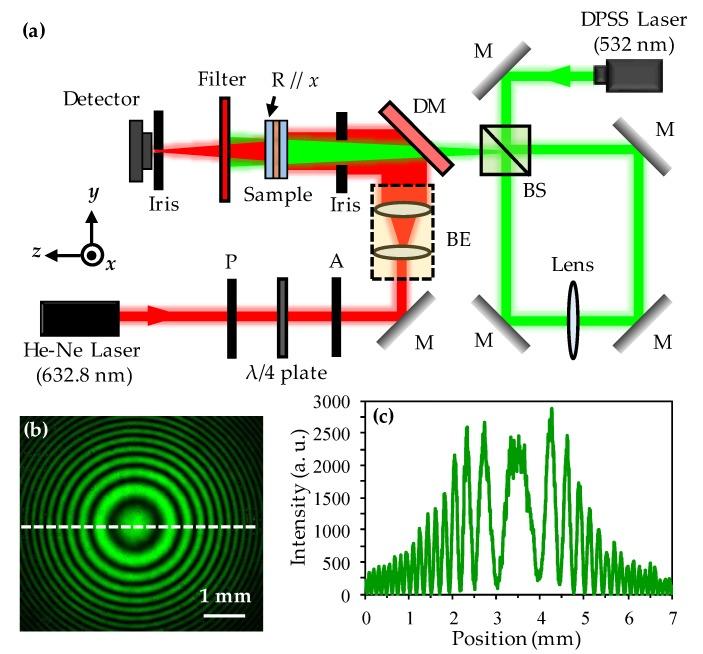

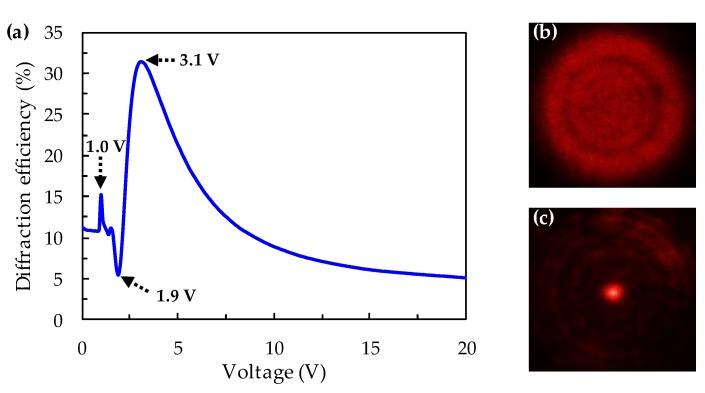

This paper presents an electrically tunable Fresnel lens in a twisted nematic liquid crystal cell fabricated by using a Sagnac interferometer. When the Fresnel-patterned green beam, formed by the Sagnac interferometer, is irradiated on the azo-dye doped liquid crystal mixture, the azo-dye molecules undergo - photoisomerization and then generate the photo-alignment effect in the bright (odd) zones. The director of the liquid crystal molecules in the odd zones reorients the direction perpendicular to the polarization direction of the linearly polarized green beam. The various structures of liquid crystals in the odd and even zones will result in a phase difference and thus, a Fresnel lens can be generated. The experimental results show that the proposed Fresnel lens has a high diffraction efficiency of 31.5% under an applied alternating-currents (AC) voltage. The focal length of the Fresnel lens can also be tuned by thermally erasing the photo-alignment effect of the azo dyes and rewriting by a different Fresnel-like pattern.
