Department of Oral and Cranio-maxillofacial Surgery, Shanghai Ninth People's Hospital, College of Stomatology, Shanghai Jiao Tong University School of Medicine Shanghai Key Laboratory of Stomatology & Shanghai Research Institute of Stomatology No. 639 Zhizaoju Road, Shanghai, 200011, China.
2nd Dental Center, Shanghai Ninth People's Hospital, Shanghai Jiao Tong University School of Medicine Shanghai Key Laboratory of Stomatology No. 639 Zhizaoju Road, Shanghai, 200011, China.
Sci Rep. 2019 Sep 13;9(1):13196. doi: 10.1038/s41598-019-49335-2.

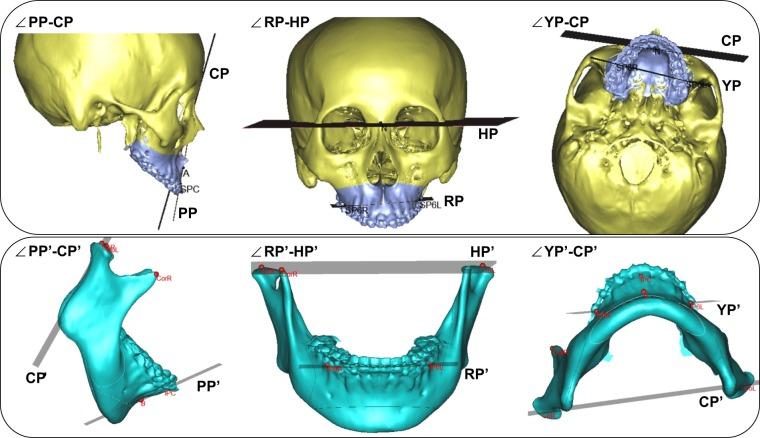

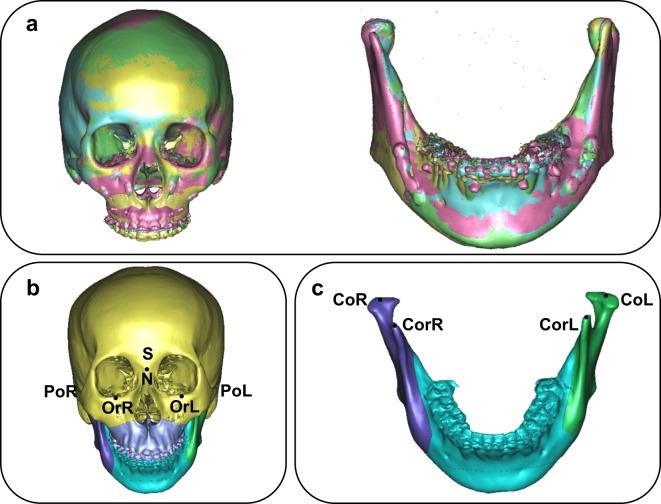

The aim of this study is to evaluate the postsurgical stability of skeletal class II patients after performing a counter-clockwise rotational (CCWR) procedure for the maxilla-mandibular complex (MMC) by using a novel Three-dimensional (3D) Position-Posture(P-P) measuring method. Twenty-five patients (5 males and 20 females) were included in this study. The postoperative CT scans of the skull were taken before surgery(T0), 3-7 days (T1), 3 months (T2), and 6 months (T3) after surgery. Specific anatomic landmarks were chosen to determine the position of the segments, while three equally perpendicular planes were created to describe their posture. The results show that the linear relapse of maxillary landmarks during the follow-up were acceptable (≤0.5 mm). The relapse of maxillary pitch plane at 6-months follow-up is 1.52°, which is acceptable. There was a significant pitch plane relapse of the mandibular-body segment with an average of 1.86° between T1 and T2 models, 3.28° between T1 and T3 models. There was no significant difference between roll and yaw planes during the follow-up. We therefore conclude that the P-P method could be used to accurately analyze the postsurgical stability of skeletal class II orthognathic surgery cases. For CCWR procedures, it was also shown that the there is a tendency for recurrence most specially on the body of the mandible.
本研究旨在通过一种新的三维(3D)位置-姿势(P-P)测量方法评估上颌-下颌复合体(MMC)逆时针旋转(CCWR)手术治疗骨骼 II 类错颌患者的术后稳定性。本研究共纳入 25 例患者(男性 5 例,女性 20 例)。患者在术前(T0)、术后 3-7 天(T1)、术后 3 个月(T2)和术后 6 个月(T3)进行颅骨 CT 扫描。选择特定的解剖标志来确定节段的位置,同时创建三个相等的垂直平面来描述它们的姿势。结果表明,随访期间上颌标志的线性复发是可以接受的(≤0.5mm)。6 个月随访时上颌倾斜平面的复发为 1.52°,可以接受。下颌体段的倾斜平面在 T1 与 T2 模型之间有平均 1.86°的显著复发,在 T1 与 T3 模型之间有 3.28°的显著复发。在随访过程中,滚转平面和偏航平面没有显著差异。因此,我们得出结论,P-P 方法可用于准确分析骨骼 II 类正颌手术病例的术后稳定性。对于 CCWR 手术,还表明下颌体有复发的趋势,特别是在术后。
