基于高损伤阈值化学气相沉积法制备的二硫化钼作为调制器的锁模掺镱光纤激光器内的高功率大能量拉曼孤子产生

High-Power Large-Energy Raman Soliton Generations Within a Mode-Locked Yb-Doped Fiber Laser Based on High-Damage-Threshold CVD-MoS as Modulator.

作者信息

Ma Pengfei, Lin Wei, Zhang Huanian, Xu Shanhui, Yang Zhongmin

机构信息

State Key Laboratory of Luminescent Materials and Devices, Institute of Optical Communication Materials, South China University of Technology, Guangzhou 510640, China.

Shandong Provincial Key Laboratory of Optics and Photonic Devices, School of Physics and Electronics, Shandong Normal University, Jinan 250014, China.

出版信息

Nanomaterials (Basel). 2019 Sep 12;9(9):1305. doi: 10.3390/nano9091305.

DOI:10.3390/nano9091305

PMID:31547334

原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC6781084/

Abstract

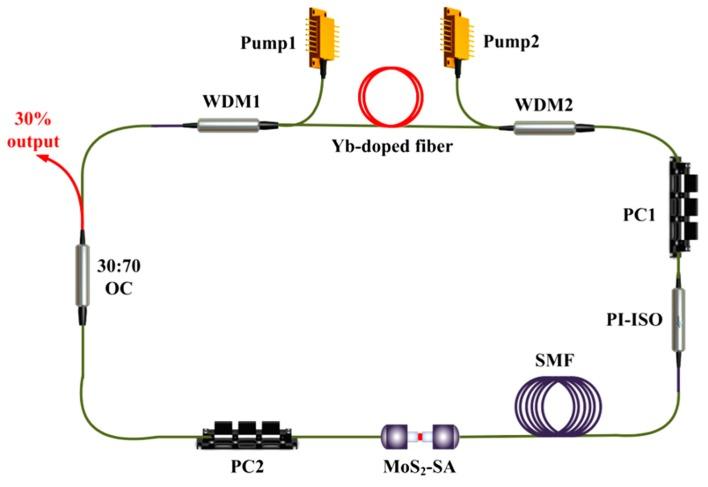

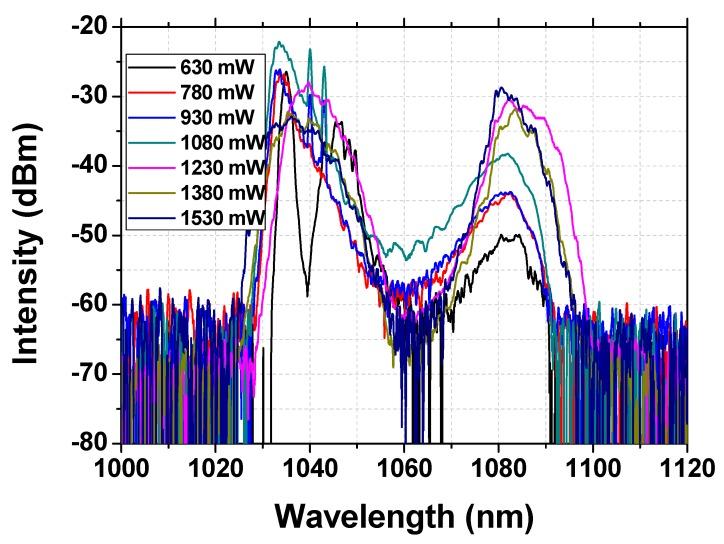

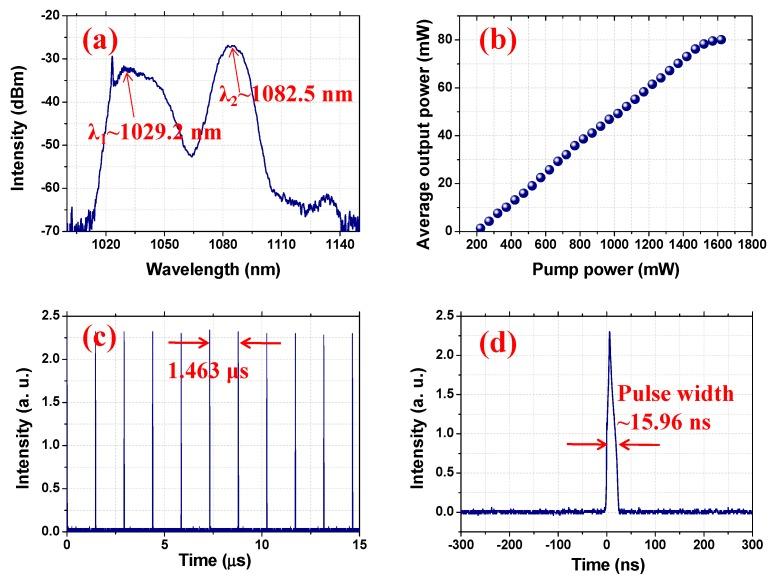

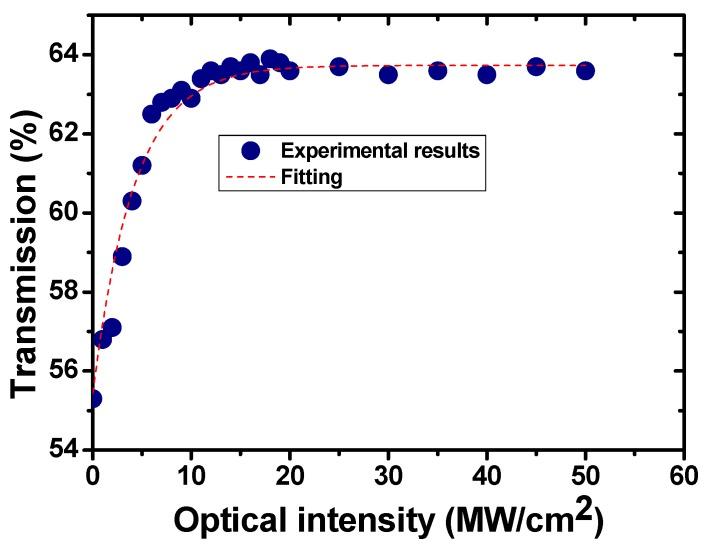

In our work, based on a high-damage-threshold MoS saturable absorber (SA), high-power intra-cavity Raman solitons within a passively mode-locked Yb-doped fiber laser were demonstrated successfully for the first time. The damage threshold of the MoS SA was as high as ~0.48 J/cm. By adjusting the polarization states, stable single- or dual-pulse Raman soliton operations were obtained. The maximum average output power for single-pulse and dual-pulse Raman soliton operations was 80.11 and 89.33 mW, respectively. Our experiment results show significant enhancement in comparison with previous works, which provides fundamental guidance for future designs of high-power, large-energy, intra-cavity Raman soliton generations based on two-dimensional materials as SAs.

摘要

在我们的工作中，基于高损伤阈值的二硫化钼可饱和吸收体（SA），首次在被动锁模掺镱光纤激光器中成功实现了高功率腔内拉曼孤子。二硫化钼可饱和吸收体的损伤阈值高达约0.48 J/cm²。通过调整偏振态，获得了稳定的单脉冲或双脉冲拉曼孤子运转。单脉冲和双脉冲拉曼孤子运转的最大平均输出功率分别为80.11和89.33 mW。我们的实验结果与之前的工作相比有显著提升，这为未来基于二维材料可饱和吸收体的高功率、大能量腔内拉曼孤子产生的设计提供了基础指导。
