The impact of hydrothermal carbonization on the surface functionalities of wet waste materials for water treatment applications.

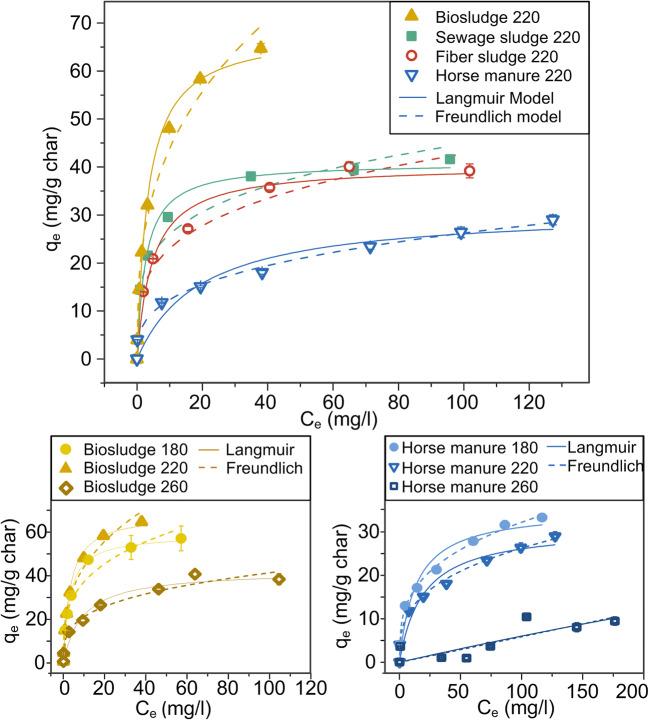

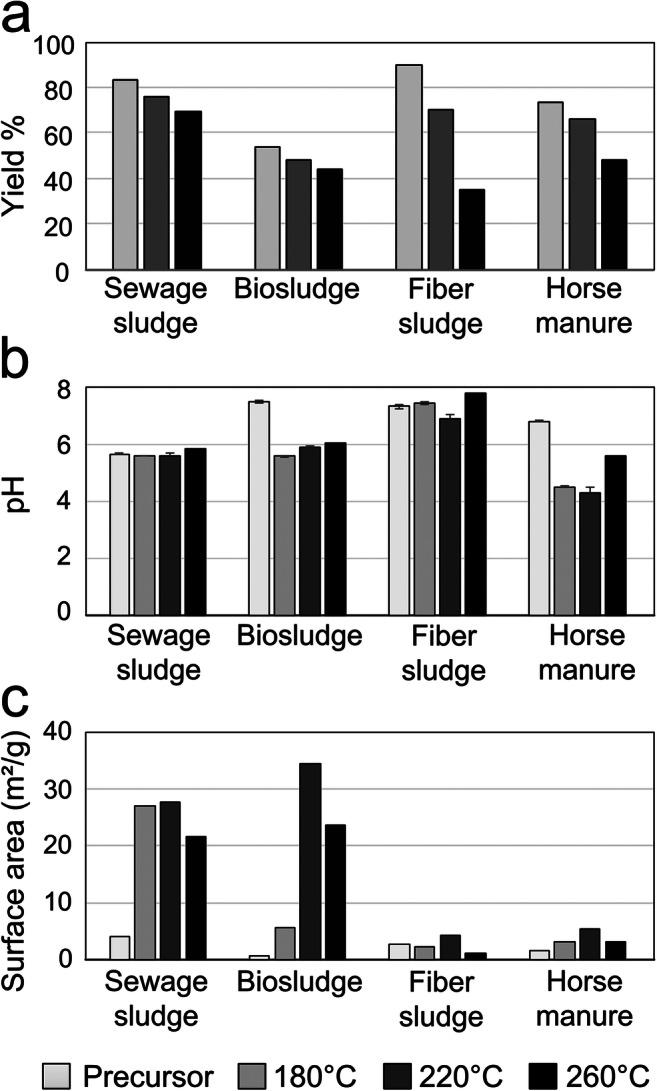

Hydrothermal carbonization (HTC) is an energy-efficient thermochemical process for converting wet waste products into value added materials for water treatment. Understanding how HTC influences the physicochemical properties of the resultant materials is critical in optimizing the process for water treatment, where surface functionality and surface area play a major role. In this study, we have examined the HTC of four wet waste streams, sewage sludge, biosludge, fiber sludge, and horse manure at three different temperatures (180 °C, 220 °C, and 260 °C). The physicochemical properties of these materials were examined via FTIR, SEM and BET with their adsorption capacity were assessed using methylene blue. The yield of solid material after hydrothermal carbonization (hydrochar) decreased with increasing temperature for all samples, with the largest impact on horse manure and fiber sludge. These materials also lost the highest degree of oxygen, while HTC had minimal impact on biosludge and sewage sludge. The differences here were due to the varying compositions of each waste material, FTIR identified resonances related to cellulose in horse manure and fiber sludge, which were not detected in biosludge and sewage sludge. Adsorption capacities varied between 9.0 and 68 mg g with biosludge HTC at 220 °C adsorbing the highest amount. Adsorption also dropped drastically at the highest temperature (260 °C), indicating a correlation between adsorption capacity and HTC conditions. This was attributed to the loss of oxygen functional groups, which can contribute to adsorption. These results suggest that adsorption properties can be tailored both by selection of HTC temperature and feedstock.
