{μ-1,2-双-[(4-甲基-苯基-硫烷基)]-3-氧代丙-1-烯-1,3-二亚基-1:2κ²S:}二羰基-1κ²O-[μ-亚甲基双(二苯基膦)-1:2κ²P,P'](三苯基膦-2κ³P)铁-铂(-)，[(OC)Fe(μ-dppm){μ-C(=O)C(4-MeCHSCH)=CCHSCHMe-4}Pt(PPh)]的晶体结构
Crystal structure of {μ-1,2-bis-[(4-methyl-phenyl-sulfan-yl]-3-oxoprop-1-ene-1,3-di-yl-1:2κ : }dicarbon-yl-1κ -[μ-methyl-enebis(di-phenyl-phos-phane)-1:2κ :'](tri-phenyl-phosphane-2κ)iron-platinum(-), [(OC)Fe(μ-dppm){μ-C(=O)C(4-MeCHSCH)=CCHSCHMe-4}Pt(PPh)].
作者信息
Mohamed Ahmed Said, Jourdain Isabelle, Knorr Michael, Brieger Lukas, Strohmann Carsten
机构信息
Centre D'Etude et de Recherche de Djibouti, Djibouti.
Institut UTINAM UMR 6213 CNRS, Université Bourgogne Franche-Comté, 16 Route de Gray, 25030 Besançon, France.
出版信息
Acta Crystallogr E Crystallogr Commun. 2020 Jun 16;76(Pt 7):1087-1091. doi: 10.1107/S2056989020007859. eCollection 2020 Jul 1.

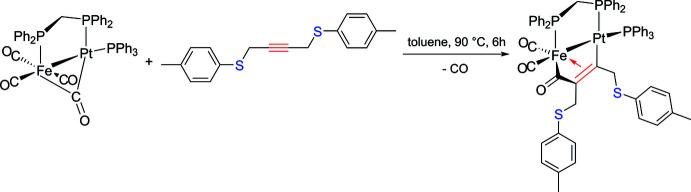

The title compound, [FePt(CHOS)(CHP)(CHP)(CO)], , [(OC)Fe(μ-dppm)(μ-C(=O)C(CHSCHMe-4)=CCHSCHMe-4)Pt(PPh)], represents the first example of a diphosphane-bridged heterobimetallic Fe-Pt dimetalla-cyclo-pentenone complex resulting from a bimetallic activation of metal-coordinated carbonyl ligand with an inter-nal alkyne, namely 1,4-bis-(-tolyl-thio)-but-2-yne. The bridging μ-C(=O)C(CHSCHMe-4)=CCHSCHMe-4 unit (stemming from a carbon-carbon coupling reaction between CO and the triple bond of the alkyne di-thio-ether) forms a five-membered dimetalla-cyclo-pentenone ring, in which the C=C bond is π-coordinated to the Fe center. The latter is connected to the Pt center through a short metal-metal bond of 2.5697 (6) Å.
标题化合物[FePt(CHOS)(CHP)(CHP)(CO)]，[(OC)Fe(μ - dppm)(μ - C(=O)C(CHSCHMe - 4)=CCHSCHMe - 4)Pt(PPh)]，是双膦桥联异金属Fe - Pt二金属环戊烯酮配合物的首个实例，它由金属配位的羰基配体与内炔（即1,4 - 双（对甲苯硫基）- 丁 - 2 - 炔）的双金属活化反应生成。桥联的μ - C(=O)C(CHSCHMe - 4)=CCHSCHMe - 4单元（源自CO与炔二硫醚三键之间的碳 - 碳偶联反应）形成一个五元二金属环戊烯酮环，其中C = C键与Fe中心呈π配位。后者通过2.5697(6) Å的短金属 - 金属键与Pt中心相连。
