Department of Cardiology and Angiology, Contilia Heart and Vascular Center, Elisabeth-Krankenhaus Essen, Essen, Germany.
Ruhr University Bochum, Bochum, Germany.
Int J Med Sci. 2020 Aug 25;17(15):2264-2268. doi: 10.7150/ijms.44312. eCollection 2020.

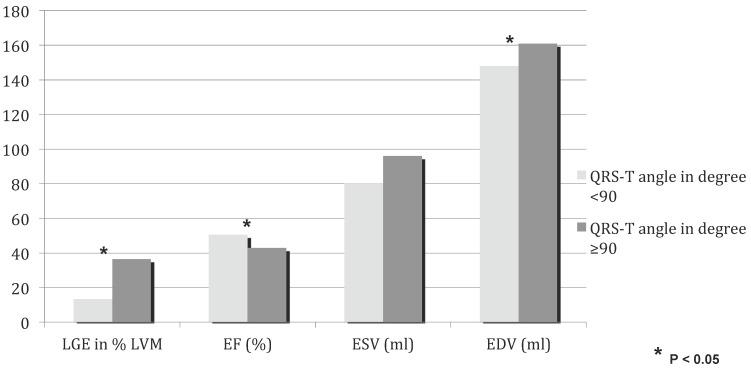

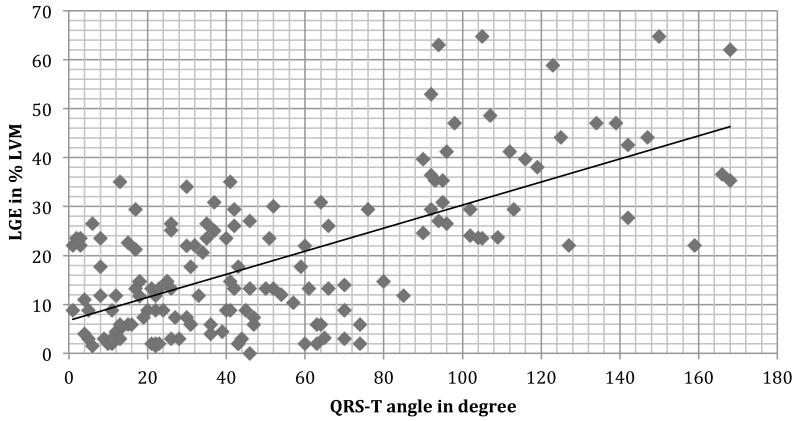

: The QRS-T angle from the surface EKG is a promising prognostic marker in patients with coronary artery disease. Cardiovascular magnetic resonance (CMR) imaging with late gadolinium enhancement (LGE) offers high resolution imaging of myocardial damage. We investigated the association of the QRS-T angle and the extent of myocardial damage as assessed by LGE in patients with acute ST-segment myocardial infarction (STEMI) : 169 patients with STEMI obtained a standardized digital 12-lead EKG on admission for the calculation of the QRS-T angle and underwent CMR imaging for analysis of infarct size by LGE within the first week. Patients were divided into groups: (1) abnormal QRS-T angle ≥ 90 degree and (2) QRS-T angle < 90 degree. : Patients with a QRS-T angle of 90 degree or more had larger infarcts (36.5±12.4 vs. 13.3±9.5; p<0.001) and lower ejection fraction (42.9±12.1% vs. 50.6±10.6%; p<0.001). : The extent of myocardial damage as measured by the gold standard LGE is associated with a larger QRS-T angle calculated from the surface EKG.
体表心电图 QRS-T 夹角是冠心病患者有前途的预后标志物。心血管磁共振(CMR)成像与晚期钆增强(LGE)可提供心肌损伤的高分辨率成像。我们研究了体表心电图 QRS-T 夹角与急性 ST 段抬高型心肌梗死(STEMI)患者 LGE 评估的心肌损伤程度的相关性:169 例 STEMI 患者入院时获得标准数字化 12 导联心电图,以计算 QRS-T 夹角,并在第一周内进行 CMR 成像以分析 LGE 下的梗死面积。患者分为两组:(1)QRS-T 角≥90 度,(2)QRS-T 角<90 度。:QRS-T 角为 90 度或更高的患者梗死面积更大(36.5±12.4 比 13.3±9.5;p<0.001),射血分数更低(42.9±12.1%比 50.6±10.6%;p<0.001)。:用 LGE 这一金标准测量的心肌损伤程度与体表心电图计算的更大的 QRS-T 角相关。
