Aksan Gökhan
Department of Cardiology, Samsun Education and Research Hospital, Samsun, Turkey.
J Innov Card Rhythm Manag. 2020 Oct 15;11(10):4266-4271. doi: 10.19102/icrm.2020.111004. eCollection 2020 Oct.

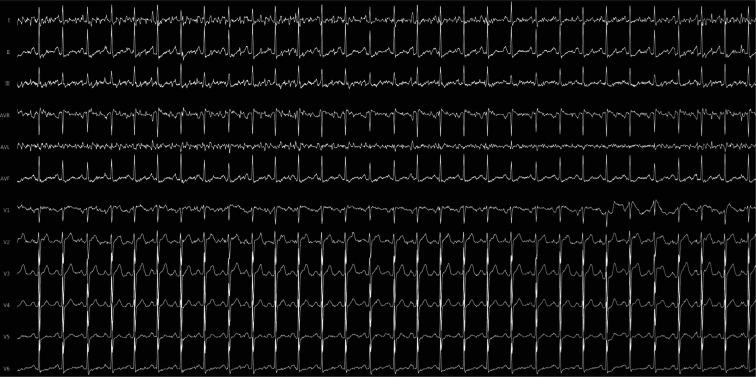

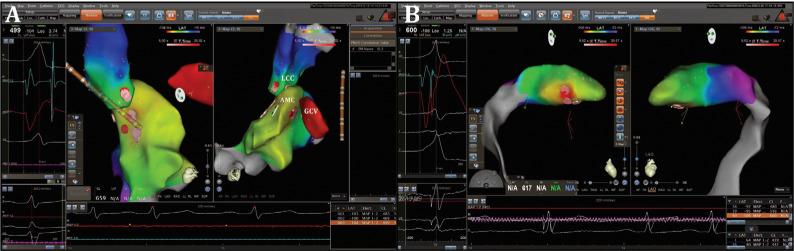

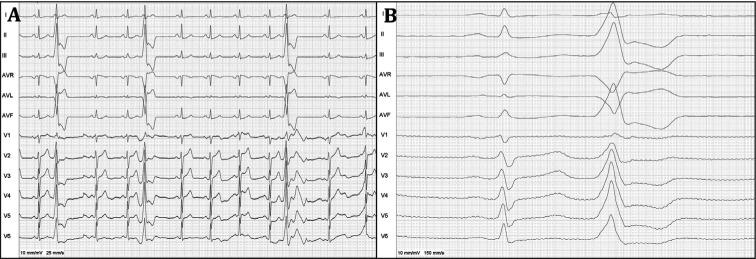

The left ventricular (LV) summit is the usual source of epicardial idiopathic premature ventricular contractions (PVCs). A 56-year-old male patient presented to the cardiology outpatient clinic with palpitations and dyspnea. Twelve-lead electrocardiography performed on admission revealed monomorphic PVCs with precordial QRS transition in the V1 derivation and an rS pattern in the D1 derivation and inferior axis. An electrophysiology study and ablation procedure were planned. Activation mapping guided by a three-dimensional electroanatomic system was conducted to identify the earliest site of ventricular activation of the PVCs. During the PVCs, the earliest ventricular activation was observed within the great cardiac vein (GCV) and preceded the QRS onset by 37 ms. Coronary angiography was performed before ablation in the coronary venous system (CVS) to assess the distance from the coronary artery, which showed severe stenosis in the left circumflex artery. Then, percutaneous coronary intervention was performed to address the left circumflex artery stenosis. Anatomic catheter ablation was performed in the aortic cusp and endocardial LV outflow tract, the sites adjacent to the LV-summit PVC origin. However, successful ablation could not be achieved. Subsequently, an irrigated radiofrequency current was delivered in the GCV for 60 seconds, with the power being gradually increased to 30 W and with an irrigation flow rate of 30 mL/min. After ablation, under isoproterenol infusion and burst pacing from the right ventricle, no PVC or ventricular tachycardia was observed. Special precautions should be taken to avoid coronary artery damage during ablation from distal CVS. This approach may increase the success of ablation and avoid potential complications.
左心室(LV)峰是心外膜特发性室性早搏(PVCs)的常见起源部位。一名56岁男性患者因心悸和呼吸困难就诊于心脏病门诊。入院时进行的12导联心电图显示单形性PVCs,胸前导联QRS波在V1导联移行,D1导联呈rS型且电轴下偏。计划进行电生理研究和消融手术。采用三维电解剖系统引导下的激动标测来确定PVCs最早的心室激动部位。在PVCs发作期间,最早的心室激动出现在大心脏静脉(GCV)内,比QRS波起始提前37毫秒。在冠状动脉静脉系统(CVS)进行消融术前进行冠状动脉造影,以评估与冠状动脉的距离,结果显示左旋支动脉严重狭窄。随后,进行经皮冠状动脉介入治疗以处理左旋支动脉狭窄。在主动脉瓣尖和左心室流出道内膜进行解剖性导管消融,这些部位与LV峰PVC起源相邻。然而,未能成功消融。随后,在GCV内输送灌注射频电流60秒,功率逐渐增加至30W,灌注流速为30mL/min。消融后,在静脉滴注异丙肾上腺素和右心室猝发起搏时,未观察到PVC或室性心动过速。在从远端CVS进行消融时,应特别注意避免冠状动脉损伤。这种方法可能会提高消融成功率并避免潜在并发症。
