Gutierrez Santiago, Iwanaga Joe, Dumont Aaron S, Tubbs R Shane
Pontificia Universidad Javeriana, Bogotá, Colombia, USA.
Department of Neurosurgery, Tulane University School of Medicine, New Orleans, LA, USA.
Anat Cell Biol. 2020 Dec 31;53(4):379-384. doi: 10.5115/acb.20.199.

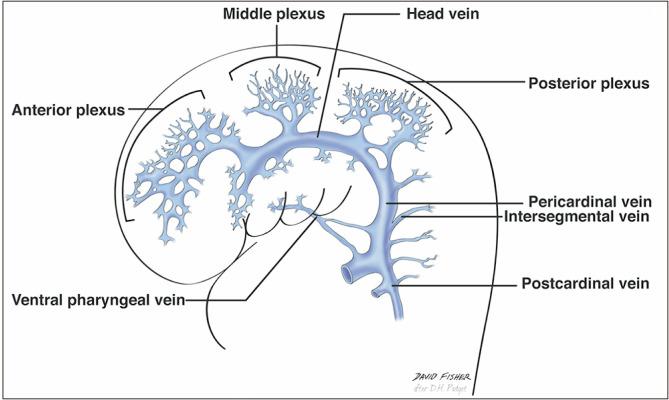

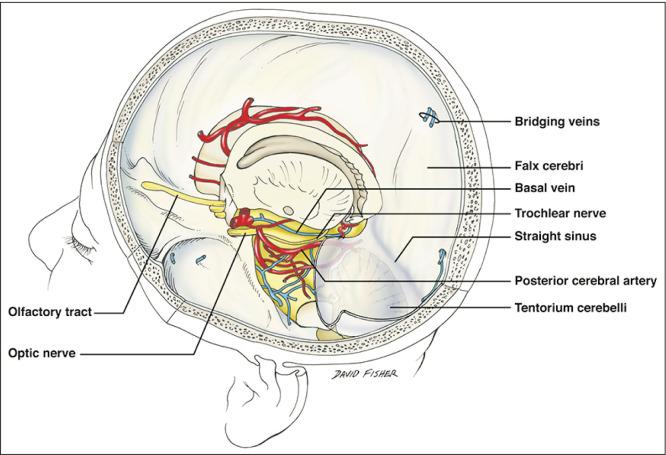

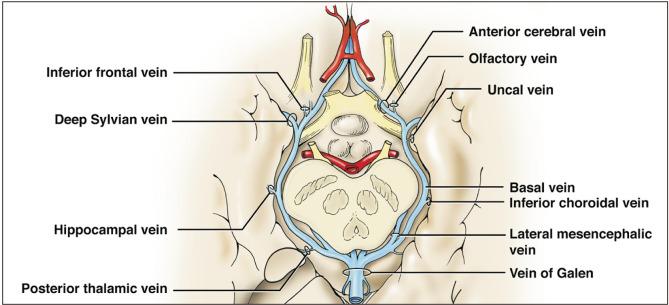

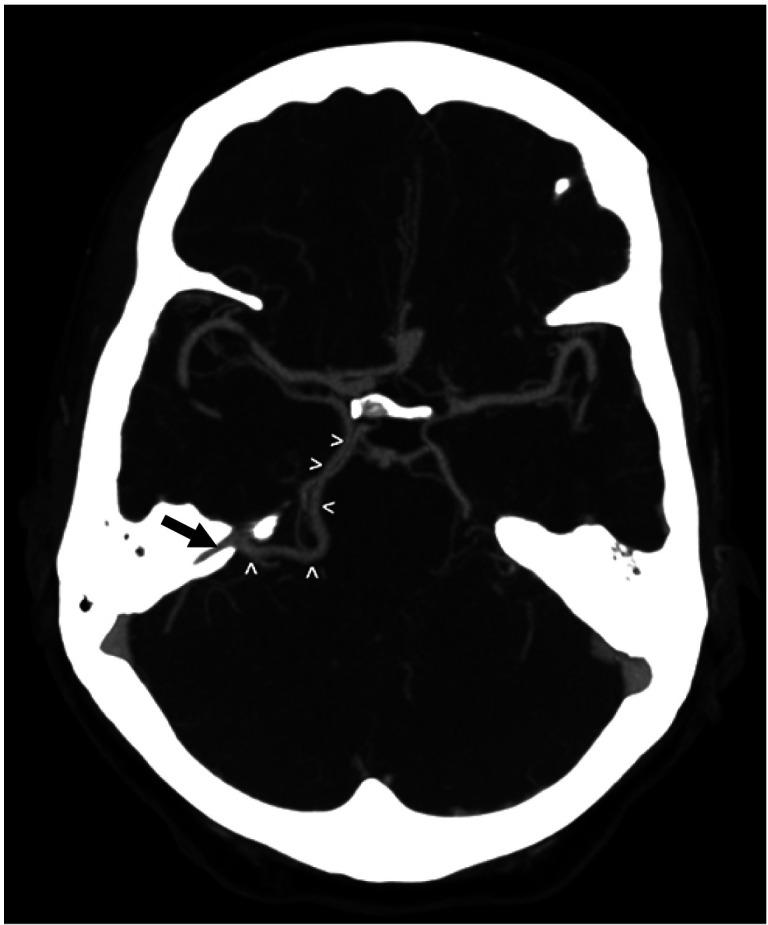

An adult male was found to have a variation of the left basal vein of Rosenthal after presenting with complaints of headache and balance issues. In this case, the vein drained directly into the left superior petrosal sinus (SPS) instead of the great vein of Galen. Anatomical variation of the basal vein is likely due to embryonic development of the deep cerebral venous system as primitive structures either differentiate regress or further with age. These changes may result in the uncommon presentation seen in this case. To our knowledge, this is the first case that shows the basal vein drains into the SPS. The normal and variant anatomy of this vessel are discussed.
一名成年男性在出现头痛和平衡问题后,被发现存在罗森塔尔左基底静脉变异。在该病例中,该静脉直接汇入左岩上窦(SPS),而非大脑大静脉。基底静脉的解剖变异可能归因于大脑深部静脉系统的胚胎发育,随着年龄增长,原始结构要么分化、退化,要么进一步发育。这些变化可能导致了本病例中所见到的罕见表现。据我们所知,这是首例显示基底静脉汇入岩上窦的病例。本文讨论了该血管的正常和变异解剖结构。
