辐射诱导的纳米颗粒表面改性及其在聚合物基体中的分散

Radiation Induced Surface Modification of Nanoparticles and their Dispersion in the Polymer Matrix.

作者信息

Fu Zhiang, Gu Xiaoying, Hu Lingmin, Li Yongjin, Li Jingye

机构信息

CAS Center for Excellence on TMSR Energy System, Shanghai Institute of Applied Physics, Chinese Academy of Sciences, No. 2019, Jialuo Road, Jiading District, Shanghai 201800, China.

College of Material, Chemistry and Chemical Engineering, Hangzhou Normal University, No. 16 Xuelin Rd., Hangzhou 310036, China.

出版信息

Nanomaterials (Basel). 2020 Nov 11;10(11):2237. doi: 10.3390/nano10112237.

Abstract

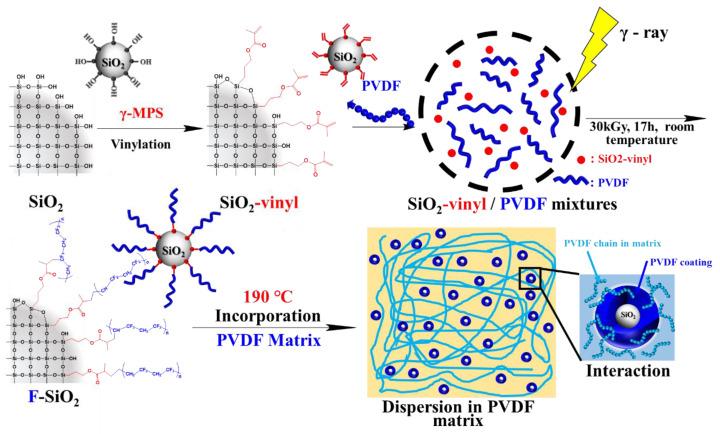

Polymer grafted inorganic nanoparticles attract significant attention, but pose challenges because of the complexity. In this work, a facile strategy to the graft polymer onto the surface of nanoparticles have been introduced. The vinyl functionalized SiO nanoparticles (NPs) were first prepared by the surface modification of the unmodified SiO using γ-methacryloxy propyl-trimethoxylsilane. The NPs were then mixed with polyvinylidene fluoride (PVDF), which was followed by the Co-60 Gamma radiation at room temperature. PVDF molecular chains were chemically grafted onto the surface of SiO nanoparticles by the linking of the double bond on the NPs. The graft ratio of PVDF on SiO NPs surface can be precisely controlled by adjusting the absorbed dose and reactant feed ratio (maximum graft ratio was 31.3 wt%). The strategy is simple and it should be applied to the surface modification of many other nanoparticles. The prepared PVDF-grafted SiO NPs were then dispersed in the PVDF matrix to make the nanocomposites. It was found that the modified NPs can be precisely dispersed into the PVDF matrix, as compared with pristine silica. The filling content of modifications SiO NPs on the PVDF nanocomposites is almost doubled than the pristine SiO counterpart. Accordingly, the mechanical property of the nanocomposites is significantly improved.

摘要

聚合物接枝的无机纳米粒子引起了广泛关注,但因其复杂性而带来挑战。在这项工作中,引入了一种将聚合物接枝到纳米粒子表面的简便策略。首先通过用γ-甲基丙烯酰氧基丙基三甲氧基硅烷对未改性的SiO进行表面改性来制备乙烯基官能化的SiO纳米粒子(NPs)。然后将这些NPs与聚偏氟乙烯(PVDF)混合,随后在室温下进行Co-60γ辐射。通过NPs上双键的连接,PVDF分子链化学接枝到SiO纳米粒子的表面。通过调节吸收剂量和反应物进料比,可以精确控制PVDF在SiO NPs表面的接枝率(最大接枝率为31.3 wt%)。该策略简单,应可应用于许多其他纳米粒子的表面改性。然后将制备的PVDF接枝的SiO NPs分散在PVDF基体中制成纳米复合材料。结果发现,与原始二氧化硅相比,改性后的NPs可以精确地分散在PVDF基体中。PVDF纳米复合材料上改性SiO NPs的填充量几乎是原始SiO对应物的两倍。因此,纳米复合材料的力学性能得到显著改善。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7b5a/7697188/e9eac5fc0509/nanomaterials-10-02237-g001.jpg
