Yu Jinfen, Sun Yongqiang, Cao Guangliang, Zheng Xiuzhu, Jing Yan, Li Chuanting
Shandong Provincial Western Hospital, Shandong Provincial ENT Hospital.
JiNan ZhangQiu District Hospital of TCM.
Medicine (Baltimore). 2020 Nov 20;99(47):e23300. doi: 10.1097/MD.0000000000023300.

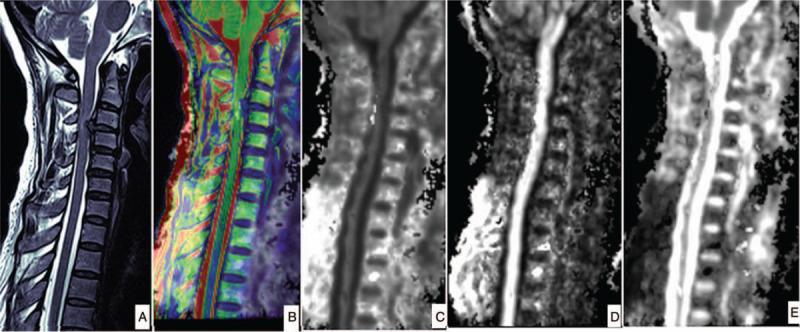

To explore the value of diffusion kurtosis imaging in the changes of spinal cord microstructures in patients with early cervical spondylotic myelopathy.Twenty nine patients with cervical myelopathy were selected in this study. All images were acquired on a 3.0 T MR scanner (Skyra, Siemens Medical Systems, Germany). The imaging parameters for diffusion kurtosis imaging were as follows: repetition time/echo time, 3000/91 ms; averages, 2; slice thickness/gap, 3/0.3 mm; number of slices, 17; field of view, 230 × 230 mm; Voxel size, 0.4 × 0.4 × 3.0 mm; 3 b-values (0, 1000, and 2000 s/mm) with diffusion encoding in 20 directions for each b-value. Values for fractional anisotropy, mean diffusivity, and mean diffusional kurtosis (MK) were calculated and compared between unaffected and affected spinal cords.In all patients MK was significantly lower in normal appearing spinal cords adjacent to the affected cervical spinal cords than in normal cervical spinal cords (0.862 ± 0.051 vs 0.976 ± 0.0924, P < .0001), but the difference of fractional anisotropy and apparent diffusion coefficient was no significant (P > .05). The affected cervical spinal cords had lower MK (0.716 ± 0.0753), FA and higher apparent diffusion coefficient than normal cervical spinal cords (P < .001).MK values in the cervical spinal cord may reflect microstructural changes of spinal cord damage in cervical myelopathy, and it could potentially provide more information that obtained with conventional diffusion metrics.
探讨扩散峰度成像在早期脊髓型颈椎病患者脊髓微观结构变化中的价值。本研究选取了29例脊髓型颈椎病患者。所有图像均在3.0T磁共振成像仪(德国西门子医疗系统公司的Skyra)上采集。扩散峰度成像的参数如下:重复时间/回波时间为3000/91ms;平均次数为2;层厚/层间距为3/0.3mm;层数为17;视野为230×230mm;体素大小为0.4×0.4×3.0mm;3个b值(0、1000和2000s/mm²),每个b值在20个方向上进行扩散编码。计算并比较未受影响和受影响脊髓之间的分数各向异性、平均扩散率和平均扩散峰度(MK)值。在所有患者中,与受影响的颈髓相邻的外观正常脊髓的MK值显著低于正常颈髓(0.862±0.051对0.976±0.0924,P<0.0001),但分数各向异性和表观扩散系数的差异无统计学意义(P>0.05)。与正常颈髓相比,受影响的颈髓MK值较低(0.716±0.0753),分数各向异性较低,表观扩散系数较高(P<0.001)。颈髓中的MK值可能反映脊髓型颈椎病中脊髓损伤的微观结构变化,并且它可能潜在地提供比传统扩散指标更多的信息。
