Effect of section thickness on microstructure and mechanical properties of compacted graphite iron for diesel engine applications.

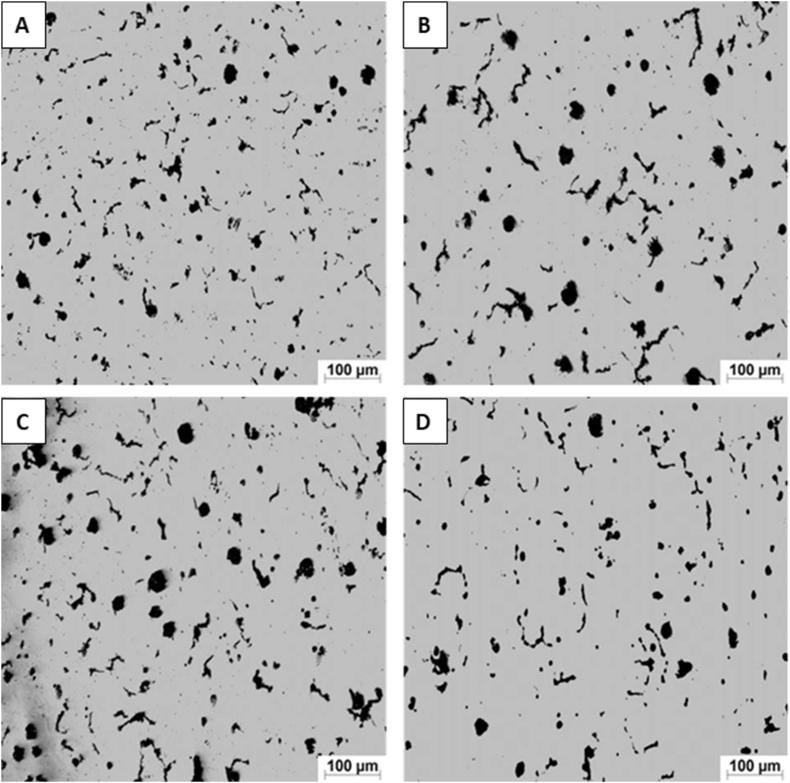

Compacted (vermicular) graphite iron (CGI) is used in many substantial applications because its vermicular microstructure has superior mechanical properties at higher temperatures. Production of vermicular graphite cast iron diesel engine cylinder block with various sections' thicknesses is a great challenge especially, if compacted graphite iron is made by controlling the pouring duration. Investigations on microstructure and hardness have been conducted on four different thicknesses (5, 10, 15, and 20 mm) of compacted graphite iron. Results demonstrated that pouring duration affects both cooling rate, and Mg/S content. These two parameters to decide the nodularity percentage and the matrix microstructure. Longer pouring duration lowers Mg/S content and decreases the cooling rate for the similar section thickness, however shorter pouring duration acts in the opposite direction. Microstructure and hardness are also affected by casting sections with the same pouring duration through different cooling rates. An increase in the cross-sectional thickness for the same pouring duration decreases the rate of cooling that encourages the formation of compacted graphite with pearlitic rather than martensitic a matrix in addition to lowers the nodular graphite count. Magnesium fading and compacted graphite ratio increased with longer pouring duration. Hardness decreased with larger section thickness and longer pouring duration due to the elimination of the martensite phase in the matrix.
