一种新型纤维增强轻质石膏基材料的特性研究

Álvarez Manuel, Ferrández Daniel, Morón Carlos, Atanes-Sánchez Evangelina

Department of Building Technologies, Higher Technical School of Building, Universidad Politécnica de Madrid, 28040 Madrid, Spain.

Department of Organization Engineering, Business Administration and Statistics, Higher Technical School of Industrial Engineering, Universidad Politécnica de Madrid, 28660 Madrid, Spain.

Materials (Basel). 2021 Mar 4;14(5):1203. doi: 10.3390/ma14051203.

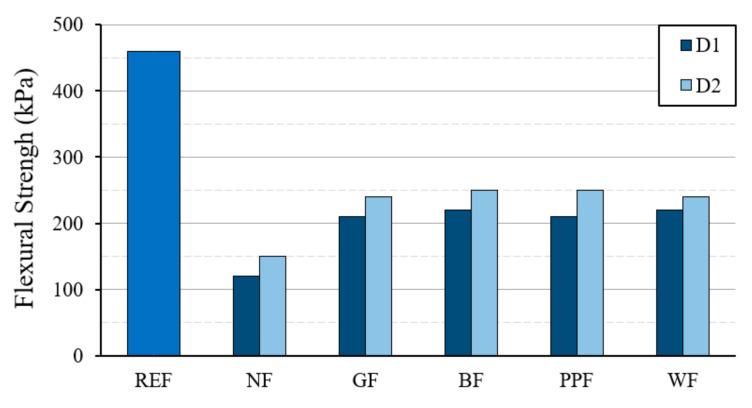

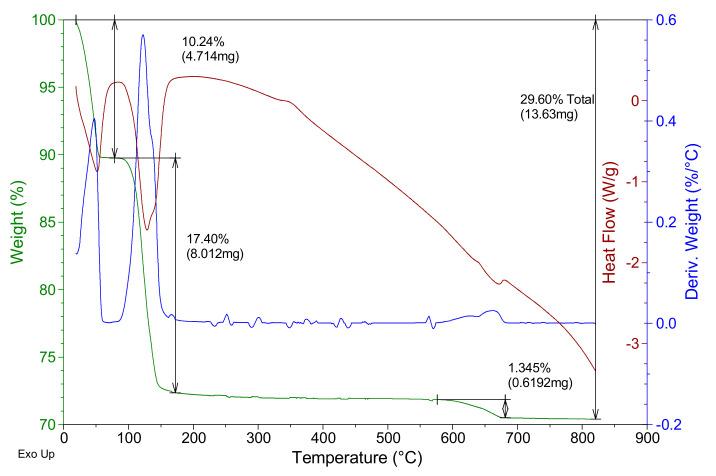

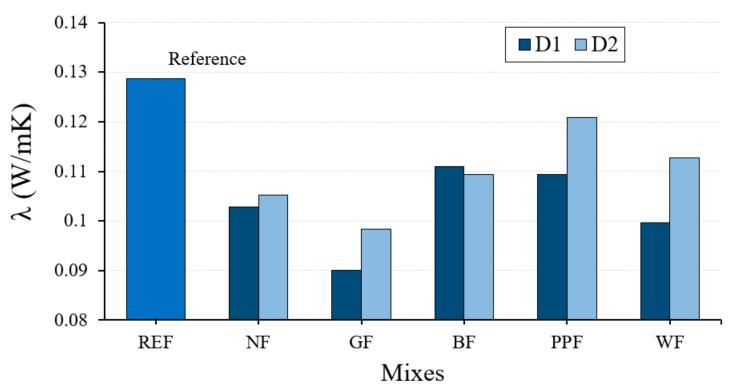

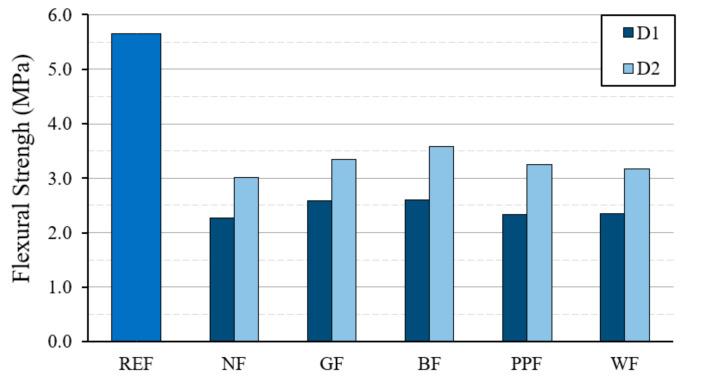

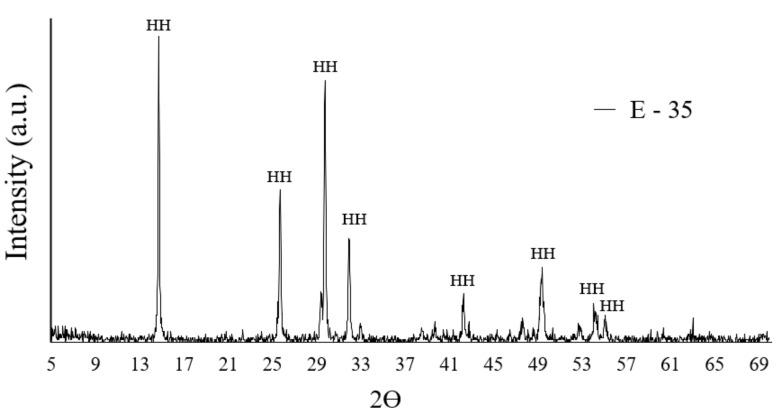

This paper shows the characterization of a new lightened gypsum-based material for use in buildings. A plaster material has been designed with a polymeric compound based on polyvinyl acetate, bicarbonate and a boric acid solution, which reduce the density and thermal conductivity by up to 20% and 30%, respectively. In addition, tests have been carried out with the lightened plaster material reinforced with glass (GF), basalt (BF), polypropylene (PPF) and wood (WF) fibers. A significant improvement in mechanical properties was achieved. All samples obtained resistance values greater than 2 MPa in flexion and 3 MPa in compression. Physico-chemical analysis were also carried out. The study is completed with a statistical analysis, where confidence intervals have been obtained for the mean at 95% confidence for each of the physical properties studied.

本文展示了一种用于建筑的新型轻质石膏基材料的特性。一种石膏材料已被设计出来，它含有基于聚醋酸乙烯酯、碳酸氢盐和硼酸溶液的聚合物化合物，分别使密度和热导率降低了20%和30%。此外，还对用玻璃（GF）、玄武岩（BF）、聚丙烯（PPF）和木材（WF）纤维增强的轻质石膏材料进行了测试。实现了机械性能的显著改善。所有样品在弯曲时的电阻值大于2 MPa，在压缩时大于3 MPa。还进行了物理化学分析。该研究以统计分析完成，其中针对所研究的每种物理性质，在95%置信度下获得了均值的置信区间。
