Goldberg Margarita A, Gafurov Marat R, Murzakhanov Fadis F, Fomin Alexander S, Antonova Olga S, Khairutdinova Dinara R, Pyataev Andrew V, Makshakova Olga N, Konovalov Anatoliy A, Leonov Alexander V, Akhmedova Suraya A, Sviridova Irina K, Sergeeva Natalia S, Barinov Sergey M, Komlev Vladimir S
A.A. Baikov Institute of Metallurgy and Materials Science, Russian Academy of Sciences, Moscow 119334, Russia.
Institute of Physics, Kazan Federal University, 18 Kremlevskaya Str., Kazan 420008, Russia.
Nanomaterials (Basel). 2021 Mar 22;11(3):811. doi: 10.3390/nano11030811.

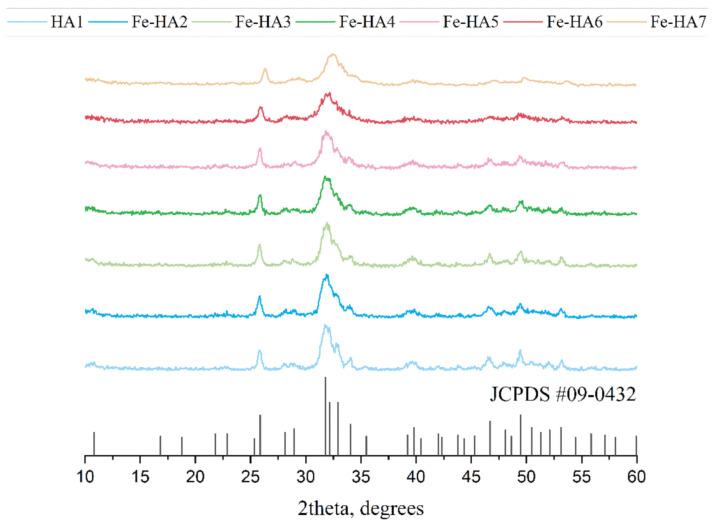

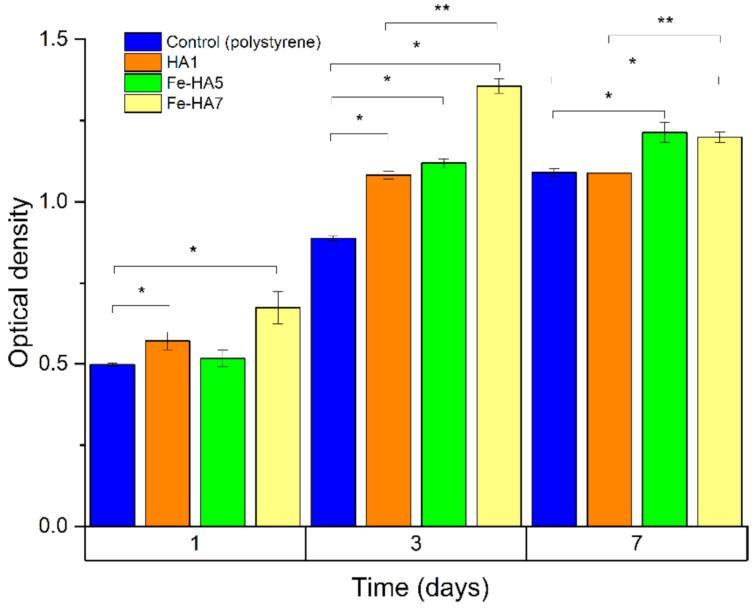

Mesoporous hydroxyapatite (HA) and iron(III)-doped HA (Fe-HA) are attractive materials for biomedical, catalytic, and environmental applications. In the present study, the nanopowders of HA and Fe-HA with a specific surface area up to 194.5 m/g were synthesized by a simple precipitation route using iron oxalate as a source of Fe cations. The influence of Fe amount on the phase composition, powders morphology, Brunauer-Emmett-Teller (BET) specific surface area (S), and pore size distribution were investigated, as well as electron paramagnetic resonance and Mössbauer spectroscopy analysis were performed. According to obtained data, the Fe ions were incorporated in the HA lattice, and also amorphous Fe oxides were formed contributed to the gradual increase in the S and pore volume of the powders. The Density Functional Theory calculations supported these findings and revealed Fe inclusion in the crystalline region with the hybridization among Fe-3d and O-2p orbitals and a partly covalent bond formation, whilst the inclusion of Fe oxides assumed crystallinity damage and rather occurred in amorphous regions of HA nanomaterial. In vitro tests based on the MG-63 cell line demonstrated that the introduction of Fe does not cause cytotoxicity and led to the enhanced cytocompatibility of HA.
介孔羟基磷灰石(HA)和铁(III)掺杂的HA(Fe-HA)是用于生物医学、催化和环境应用的有吸引力的材料。在本研究中,通过以草酸铁作为铁阳离子源的简单沉淀路线合成了比表面积高达194.5 m/g的HA和Fe-HA纳米粉末。研究了铁含量对相组成、粉末形态、布鲁诺尔-埃米特-泰勒(BET)比表面积(S)和孔径分布的影响,并进行了电子顺磁共振和穆斯堡尔光谱分析。根据所得数据,铁离子被掺入HA晶格中,并且还形成了无定形铁氧化物,这导致了粉末的S和孔体积逐渐增加。密度泛函理论计算支持了这些发现,并揭示了铁在晶体区域中的掺入以及Fe-3d和O-2p轨道之间的杂化和部分共价键的形成,而铁氧化物的掺入则假定会破坏结晶度,并且更可能发生在HA纳米材料的无定形区域中。基于MG-63细胞系的体外试验表明,铁的引入不会引起细胞毒性,反而会增强HA的细胞相容性。
