Horváth Flóra, Bihari Levente, Bodrogi Dominika, Gombár Tibor, Hilt Bendegúz, Keszei Balázs, Krain Tamás, Simon András, Menyhárd Alfréd
Department of Physical Chemistry and Materials Science, Faculty of Chemical Technology and Biotechnology, Budapest University of Technology and Economics, Műegyetem rkp. 3, Budapest 1111, Hungary.
Department of Inorganic and Analytical Chemistry, Faculty of Chemical Technology and Biotechnology, Budapest University of Technology and Economics, Szt. Gellért tér 4, Budapest 1111, Hungary.
ACS Omega. 2021 Mar 23;6(13):9053-9065. doi: 10.1021/acsomega.1c00064. eCollection 2021 Apr 6.

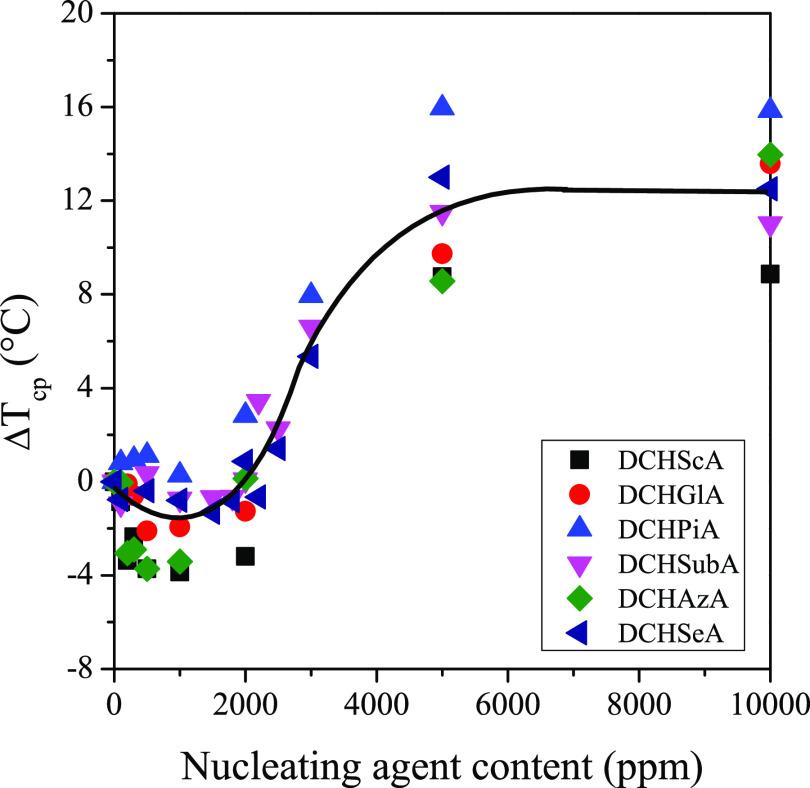

Application of nucleating agents is the most versatile and industrially applied way to manipulate the crystalline structure of isotactic polypropylene (iPP). Various materials possess a nucleating effect, but from the viewpoint of dispersibility, the partially soluble ones are the most advantageous. Our objective was to synthesize new ,'-dicyclohexyldicarboxamide homologues and study their applicability as nucleating agents in iPP. Carbon-13 nuclear magnetic resonance (C NMR) and infrared spectroscopy were used to prove that the synthesis reactions were successful. Thermal stability of the compounds was investigated with simultaneous thermal analysis. Nucleating efficiency and solubility were characterized by polarized light microscopy and differential scanning calorimetry. Polarized light microscopy was also applied to study the effect of novel additives on the morphology of iPP. The properties, important from the viewpoint of applicability, were also investigated. Tensile tests were performed to characterize the main mechanical properties, and standard haze measurements were performed to characterize optical properties. It can be concluded that the investigated compounds are partially soluble nucleating agents and influence the crystalline structure of iPP. Most of the studied compounds have a moderate nucleating efficiency, but a very interesting dendritic structure develops in their presence. Two of them proved to be non-selective β-nucleating agents, which result in a remarkable improvement of impact resistance and higher opacity.
成核剂的应用是调控等规聚丙烯(iPP)晶体结构最为通用且在工业上得到应用的方法。各种材料都具有成核作用,但从分散性的角度来看,部分可溶的材料最为有利。我们的目标是合成新型的N,N'-二环己基二羧酰胺同系物,并研究它们作为iPP成核剂的适用性。采用碳-13核磁共振(C NMR)和红外光谱来证明合成反应是成功的。通过同步热分析研究了这些化合物的热稳定性。利用偏光显微镜和差示扫描量热法对成核效率和溶解性进行了表征。偏光显微镜还被用于研究新型添加剂对iPP形态的影响。对从适用性角度来看很重要的性能也进行了研究。进行拉伸试验以表征主要机械性能,进行标准雾度测量以表征光学性能。可以得出结论,所研究的化合物是部分可溶的成核剂,并且会影响iPP的晶体结构。大多数所研究的化合物具有中等成核效率,但在它们存在的情况下会形成非常有趣的树枝状结构。其中两种被证明是非选择性的β成核剂,这导致抗冲击性显著提高且不透明度更高。
