健康年轻成年人从坐到站过程中的人体运动学分析。

Kinematic analysis of the human body during sit-to-stand in healthy young adults.

机构信息

Tianjin Key Laboratory of Integrated Design and On-line Monitoring for Light Industry & Food Machinery and Equipment, College of Mechanical Engineering, Tianjin University of Science & Technology.

Academy of Medical Engineering and Translational Medicine, Tianjin University, Tianjin, China.

出版信息

Medicine (Baltimore). 2021 Jun 4;100(22):e26208. doi: 10.1097/MD.0000000000026208.

Abstract

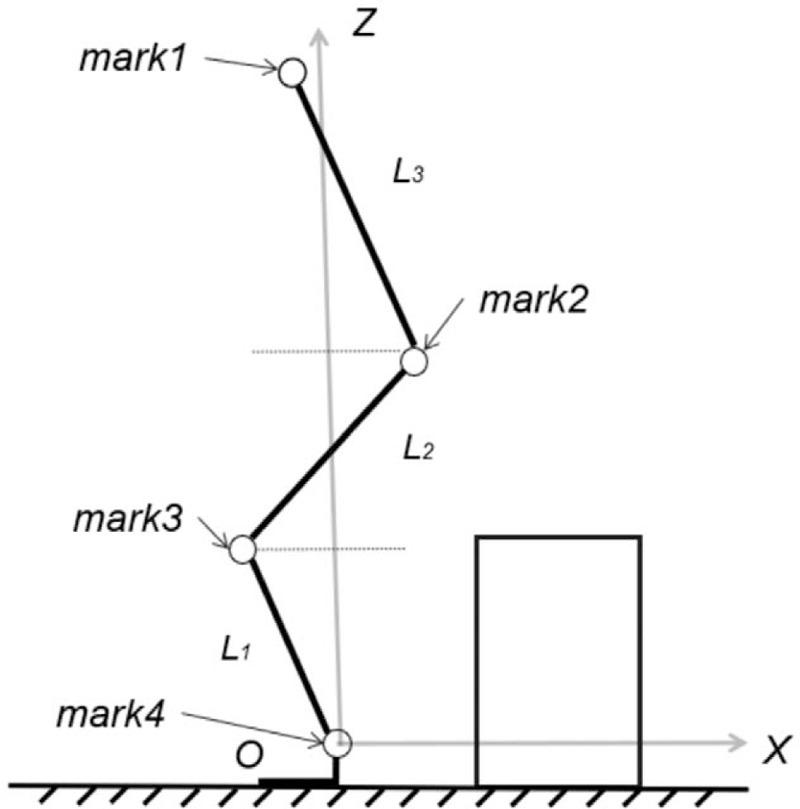

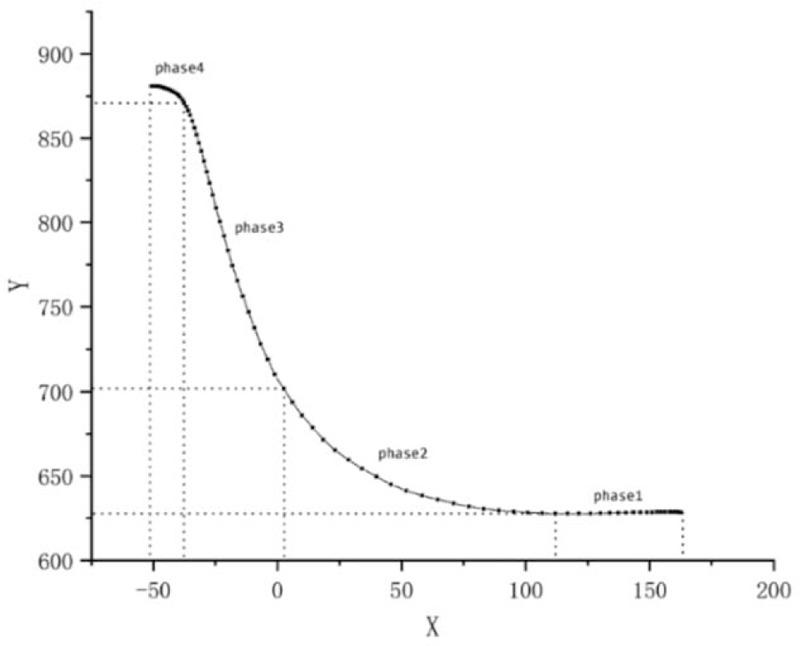

Sit-to-stand (STS) motion is one of the most important and energy-consuming basic motions in everyday life. Kinematic analysis provides information regarding what strategy or motion pattern is used by the healthy people, and through which, we can understand and obtain the law of the STS motion. The objective of this article is to study the law of STS motion through the experiment to determine a suitable description of STS motion in healthy adults, so as to provide a starting point and bases for future design and control of STS assistive devices.Thirty healthy adult subjects participated in this study and carried out STS motion experiment of standing up naturally. The STS motions were recorded using a high-definition camera. The experimentally collected kinematic data and a link segment model of the human body were used to obtain the coordinates of joints and to calculate the coordinates, velocity, and momentum of center of gravity; the postures of human body during STS are also obtained. The relationship between human body parameters and motion parameters is analyzed by using Pearson correlation method.The STS motion is divided into 4 phases; the phases are differentiated in terms of STS motion characteristics and postures, and momentum of center of gravity of human body. The main factors determining the differences in STS motion among individuals are horizontal distance between hip joint and ankle joint, lower leg length, thigh length, and the length of the transition period. The horizontal distance between hip joint and ankle joint is positively correlated with the duration from motion begin to trunk stops flexing forward (P = .021 < .05), but not so with the duration from motion begin to the end of phase 2 (P = .15 > .05).The results suggest that when designing the sit-to-stand assistive devices, one should pay attention to the whole-body posture control in STS motion, such as the posture guidance of trunk and lower leg, and should carry out specific training according to different STS phases. Sit-to-stand assistive devices should provide the same horizontal distance between hip joint and ankle joint for different individuals during the STS motion. Transition period should be properly controlled, and the degree of freedom of the lower leg should not be limited.

摘要

从坐到站(STS)运动是日常生活中最重要和最耗能的基本运动之一。运动学分析提供了有关健康人使用哪种策略或运动模式的信息,通过这些信息,我们可以理解和获得 STS 运动的规律。本文的目的是通过实验研究 STS 运动的规律,确定健康成年人中适合描述 STS 运动的方法,为 STS 辅助设备的未来设计和控制提供起点和基础。

三十名健康成年人参与了这项研究,并自然地进行了 STS 运动实验。STS 运动使用高清摄像机进行记录。通过实验采集的运动学数据和人体连杆模型,获得关节坐标,计算质心坐标、速度和动量,获得人体在 STS 期间的姿势。通过 Pearson 相关方法分析人体参数与运动参数之间的关系。

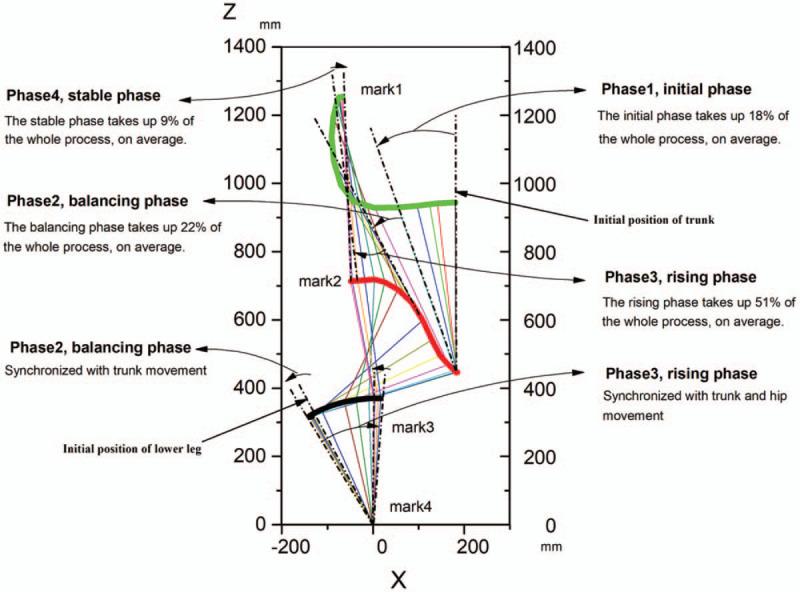

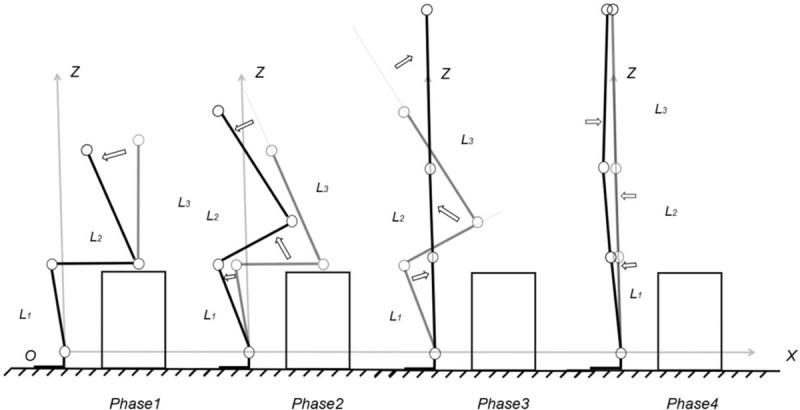

STS 运动分为 4 个阶段;根据 STS 运动特征和人体质心的姿势和动量来区分阶段。个体之间 STS 运动差异的主要决定因素是髋关节和踝关节之间的水平距离、小腿长度、大腿长度和过渡阶段的长度。髋关节和踝关节之间的水平距离与运动开始到躯干停止向前弯曲的时间(P=0.021<0.05)呈正相关,但与运动开始到第二阶段结束的时间(P=0.15>0.05)无关。

结果表明,在设计坐站辅助设备时,应注意 STS 运动中的整体姿势控制,如躯干和小腿的姿势引导,并应根据不同的 STS 阶段进行特定的训练。在 STS 运动中,不同个体的髋关节和踝关节之间应保持相同的水平距离。应适当控制过渡阶段,并且不应限制小腿的自由度。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4d65/8183776/495ef3534637/medi-100-e26208-g001.jpg
