右心房内奇静脉异常增粗。

Abnormally Enlarged Singular Thebesian Vein in Right Atrium.

作者信息

Kumar Dilip, Malviya Amit, Saikia Bishwajeet, Barman Bhupen, Gupta Anunay

机构信息

Cardiology, Medica Institute of Cardiac Sciences, Kolkata, IND.

Cardiology, North Eastern Indira Gandhi Regional Institute of Health and Medical Sciences, Shillong, IND.

出版信息

Cureus. 2021 Jul 10;13(7):e16300. doi: 10.7759/cureus.16300. eCollection 2021 Jul.

Abstract

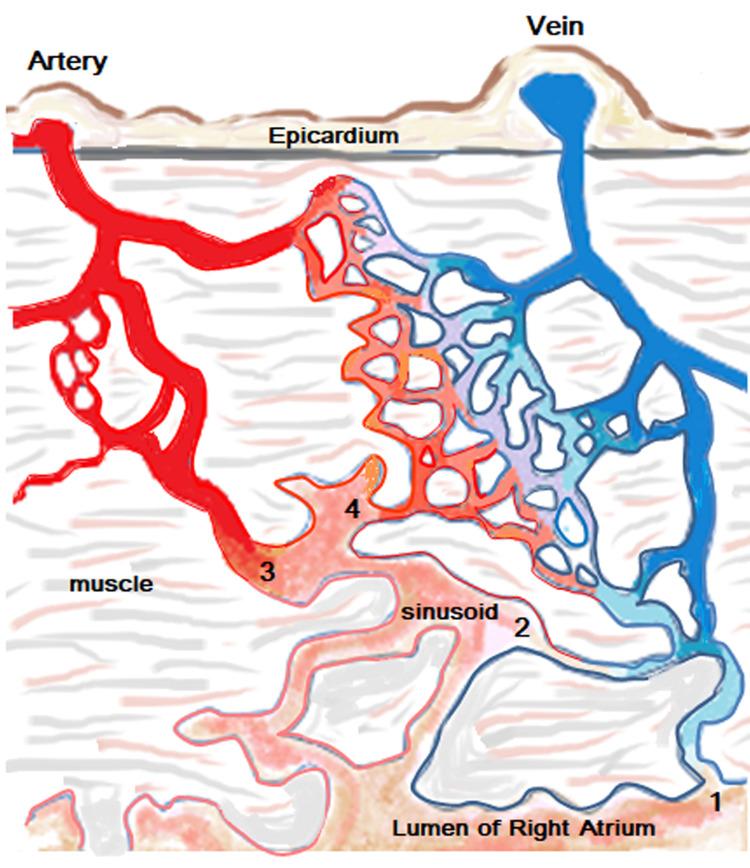

Thebesian veins in the heart are subendocardial venoluminal channels and are usually less than 0.5 mm in diameter. The system of TV either opens a venous (venoluminal) or an arterial (arterioluminal) channel directly into the lumen of the cardiac chambers or via some intervening spaces (venosinusoidal/ arteriosinusoidal) termed as sinusoids. Enlarged thebesian veins are reported in patients with congenital heart disease and usually, multiple veins are enlarged. Very few reports of such abnormal enlargement are there in the absence of congenital heart disease, but in all such cases, they are multiple and in association with coronary artery microfistule. We report a very rare case of a singular thebesian vein in the right atrium, which was abnormally enlarged. It is important to recognize because it can be confused with other cardiac structures like coronary sinus during diagnostic or therapeutic catheterization and can lead to cardiac injury and complications if it is attempted to cannulate it or pass the guidewires.

摘要

心脏中的Thebesian静脉是心内膜下静脉腔通道,直径通常小于0.5毫米。Thebesian静脉系统要么直接将静脉(静脉腔)或动脉(动脉腔)通道开口于心腔腔室,要么通过一些被称为血窦(静脉血窦/动脉血窦)的中间间隙开口。先天性心脏病患者中报告有扩大的Thebesian静脉,通常有多个静脉扩大。在没有先天性心脏病的情况下,关于这种异常扩大的报告非常少,但在所有这些病例中,它们都是多个的,并且与冠状动脉微瘘有关。我们报告了一例非常罕见的右心房单支Thebesian静脉异常扩大的病例。认识到这一点很重要,因为在诊断或治疗性导管插入术中它可能与其他心脏结构如冠状窦混淆,如果试图对其进行插管或通过导丝,可能会导致心脏损伤和并发症。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1a64/8351761/411bf4b1f728/cureus-0013-00000016300-i01.jpg
