A Comparison of Amplitude-and Time-Dependent Cyclic Deformation Behavior for Fully-Austenite Stainless Steel 316L and Duplex Stainless Steel 2205.

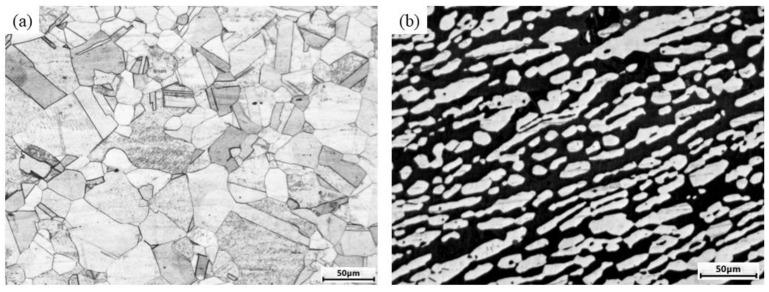

Austenite and duplex stainless steels are widely used in engineering, and the latter exhibits a more excellent combination of mechanical properties and corrosion resistance due to the coexistence of austenite and ferrite and higher nitrogen. However, fatigue failure still threatens their structural integrity. A comprehensive comparison of their cyclic deformation behavior is a major foundation to understand the role of duplex-phase microstructure and nitrogen in the safety assessment of engineering components. Thus, in this paper, the cyclic deformation behavior of fully-austenitic stainless steel 316L and duplex stainless steel 2205 was studied by a series of low cycle fatigue tests with various strain amplitudes, loading rates and tensile holding. A theoretical mechanism diagram of the interaction between nitrogen and dislocation movements during cyclic loads was proposed. Results show that the cyclic stress response of 2205 was the primary cyclic hardening, followed by a long-term cyclic softening regardless of strain amplitudes and rates, while an additional secondary hardening was observed for 316L at greater strain amplitudes. Cyclic softening of 2205 was restrained under slower strain rates or tensile holding due to the interaction between nitrogen and dislocations. The cyclic plasticity of 2205 started within the austenite, and gradually translated into the ferrite with the elevation of the cyclic amplitude, which lead to a decreased hardening ratio with the increase in amplitude and a shorter fatigue life for a given smaller plastic strain amplitude.
