Metamaterial-Integrated High-Gain Rectenna for RF Sensing and Energy Harvesting Applications.

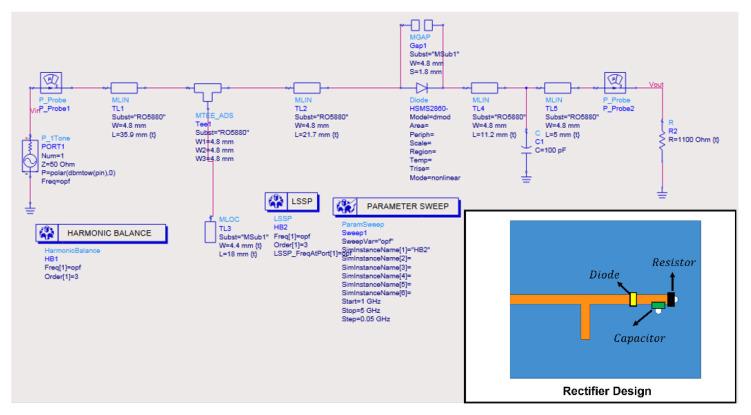

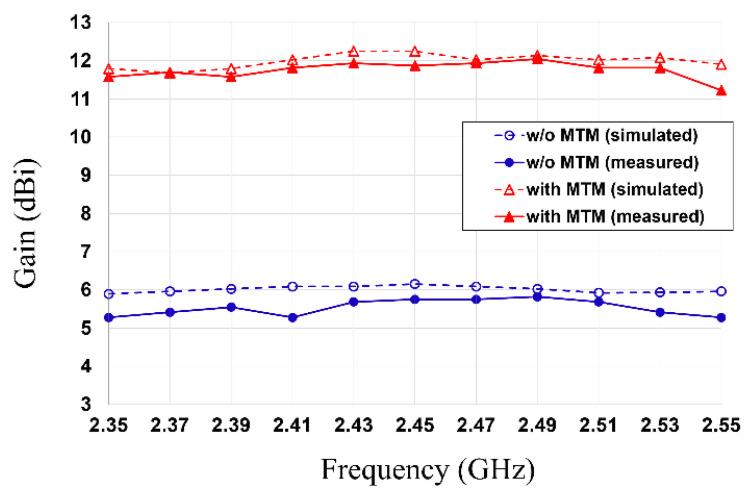

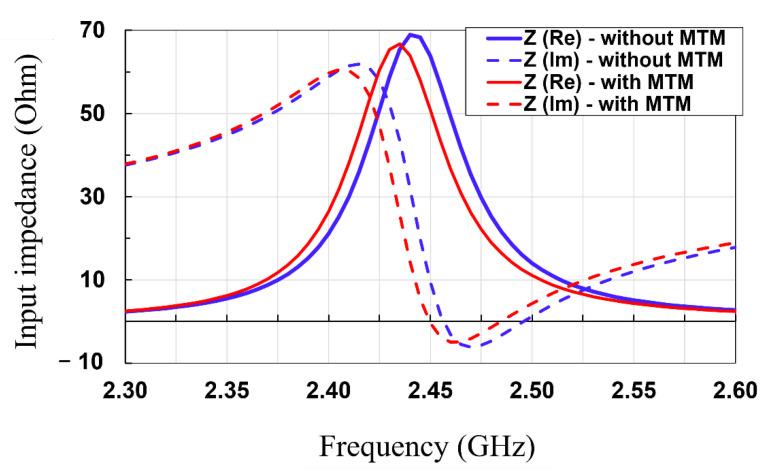

This paper presents a metamaterial (MTM)-integrated high-gain rectenna for RF sensing and energy harvesting applications that operates at 2.45 GHz, an industry, science, medicine (ISM) band. The novel MTM superstrate approach with a three-layered integration method is firstly introduced for rectenna applications. The integrated rectenna consists of three layers, where the first layer is an MTM superstrate consisting of four-by-four MTM unit cell arrays, the second layer a patch antenna, and the third layer a rectifier circuit. By integrating the MTM superstrate on top of the patch antenna, the gain of the antenna is enhanced, owing to its beam focusing capability of the MTM superstrate. This induces the increase of the captured RF power at the rectifier input, resulting in high-output DC power and high entire end-to-end efficiency. A parametric analysis is performed in order to optimize the near-zero property of the MTM unit cell. In addition, the effects of the number of MTM unit cells on the performance of the integrated rectenna are studied. A prototype MTM-integrated rectenna, which is designed on an RO5880 substrate, is fabricated and characterized. The measured gain of the MTM-integrated rectenna is 11.87 dB. It shows a gain improvement of 6.12 dB compared to a counterpart patch antenna without an MTM superstrate and a maximum RF-DC conversion efficiency of 78.9% at an input RF power of 9 dBm. This results in the improvement of the RF-DC efficiency from 39.2% to 78.9% and the increase of the output DC power from 0.7 mW to 6.27 mW (a factor of 8.96 improvements). The demonstrated MTM-integrated rectenna has shown outstanding performance compared to other previously reported work. We emphasize that the demonstrated MTM-integrated rectenna has a low design complexity compared with other work, as the MTM superstrate layer is integrated on top of the simple patch antenna and rectifier circuit. In addition, the number of MTM units can be determined depending on applications. It is highly envisioned that the demonstrated MTM-integrated rectenna will provide new possibilities for practical energy harvesting applications with improved antenna gain and efficiency in various IoT environments.
