Hollow Core Bragg Fiber-Based Sensor for Simultaneous Measurement of Curvature and Temperature.

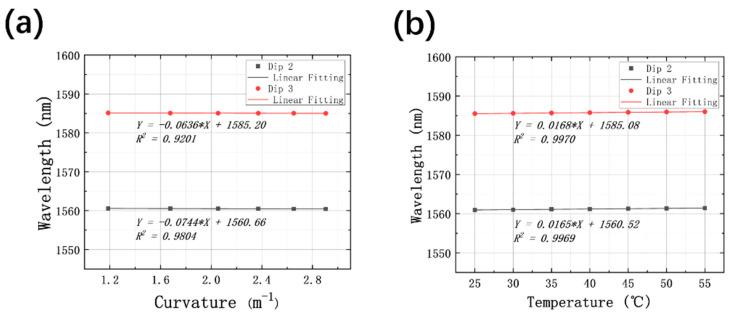

In this paper, the hollow core Bragg fiber (HCBF)-based sensor based on anti-resonant reflecting optical waveguide (ARROW) model is proposed and experimentally demonstrated for simultaneous measurement of curvature and temperature by simply sandwiching a segment of HCBF within two single-mode fibers (SMFs). The special construction of a four-bilayer Bragg structure provides a well-defined periodic interference envelope in the transmission spectrum for sensing external perturbations. Owing to different sensitivities of interference dips, the proposed HCBF-based sensor is capable of dual-parameter detection by monitoring the wavelength shift. The highest curvature sensitivity of the proposed sensor is measured to be 74.4 pm/m in the range of 1.1859-2.9047 m with the adjusted R square value of 0.9804. In the meanwhile, the best sensitivity of temperature sensing was detected to be 16.8 pm/°C with the linearity of 0.997 with temperature range varying from 25 to 55 °C. Furthermore, with the aid of the 2 × 2 matrix, the dual demodulation of curvature and temperature can be carried out to realize the simultaneous measurement of these two parameters. Besides dual-parameter sensing based on wavelength shift, the proposed sensor can also measure temperature-insensitive curvature by demodulating the intensity of resonant dips.
