Department of Medical Imaging, Nuclear Medicine, Radboud university medical center, Radboud Institute for Molecular Life Sciences, 6525GA Nijmegen, The Netherlands.
Organic Chemistry, Radboud University Nijmegen, Institute for Molecules and Materials, 6525XZ Nijmegen, The Netherlands.
Bioconjug Chem. 2022 Jan 19;33(1):194-205. doi: 10.1021/acs.bioconjchem.1c00537. Epub 2021 Dec 25.

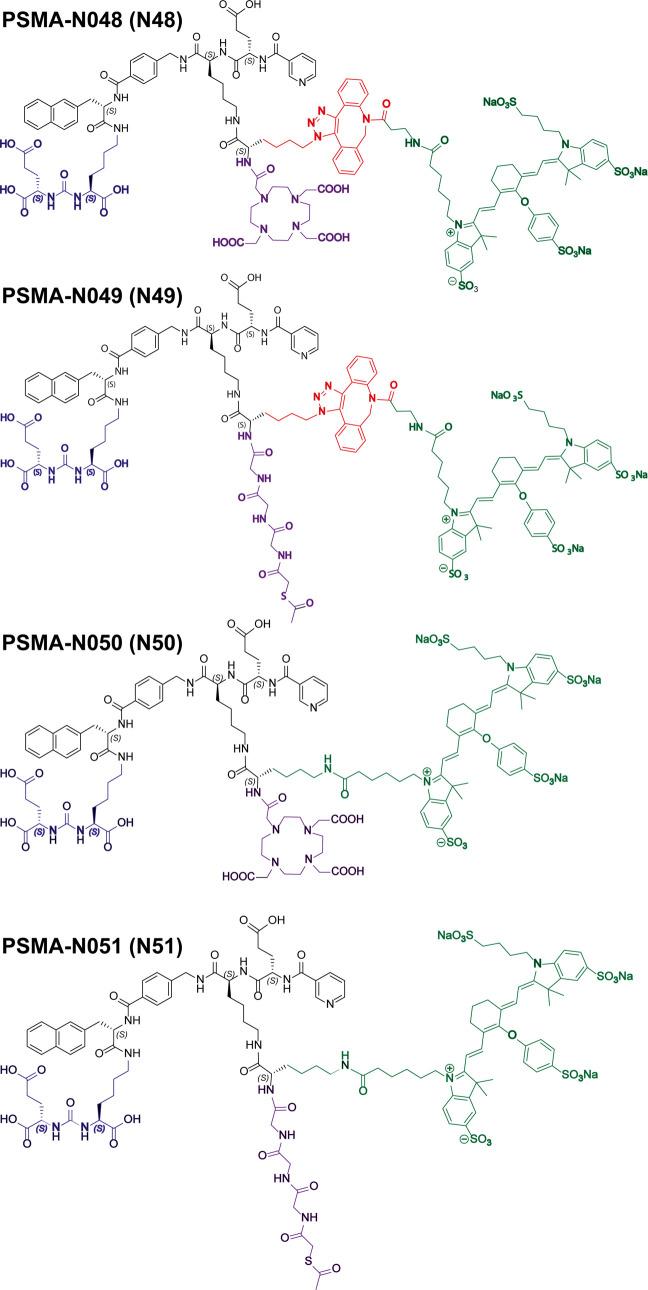

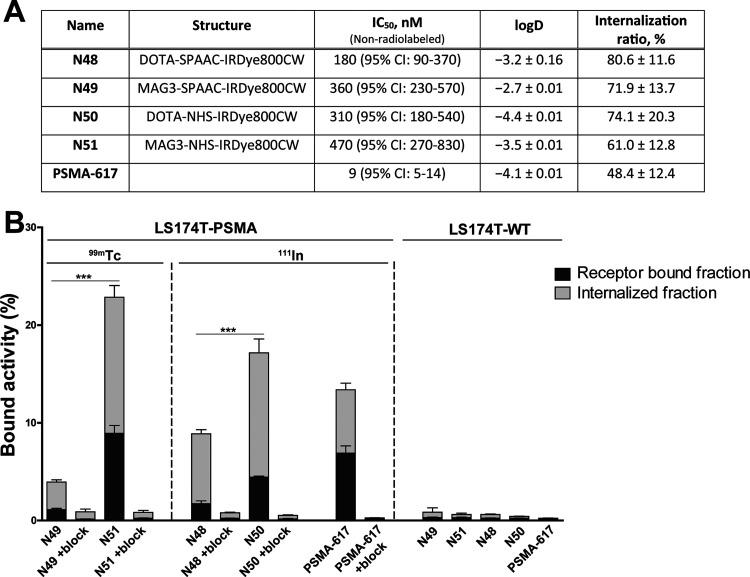

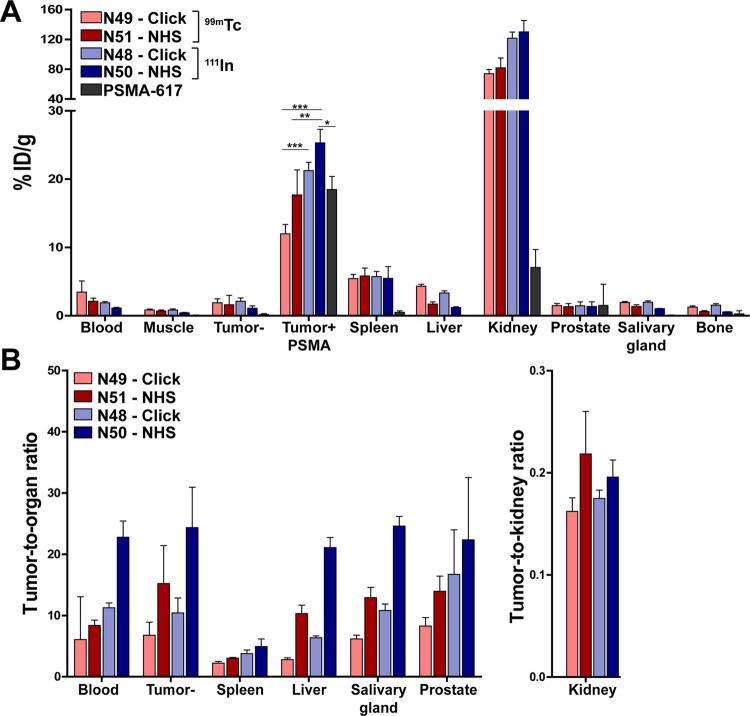

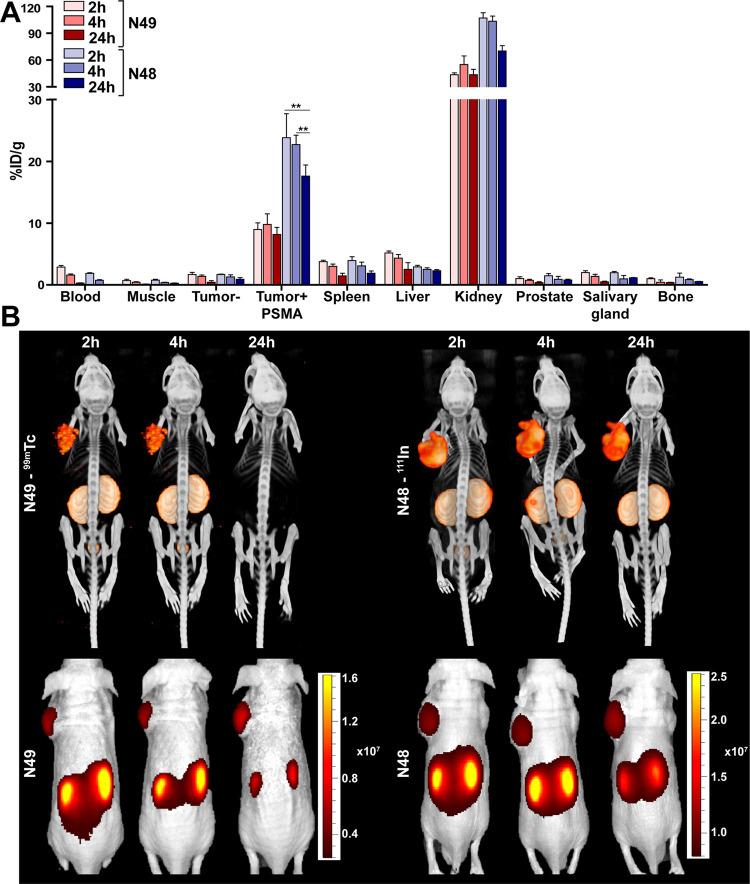

Strain-promoted azide-alkyne cycloaddition (SPAAC) is a straightforward and multipurpose conjugation strategy. The use of SPAAC to link different functional elements to prostate-specific membrane antigen (PSMA) ligands would facilitate the development of a modular platform for PSMA-targeted imaging and therapy of prostate cancer (PCa). As a first proof of concept for the SPAAC chemistry platform, we synthesized and characterized four dual-labeled PSMA ligands for intraoperative radiodetection and fluorescence imaging of PCa. Ligands were synthesized using solid-phase chemistry and contained a chelator for In or Tc labeling. The fluorophore IRDye800CW was conjugated using SPAAC chemistry or conventional -hydroxysuccinimide (NHS)-ester coupling. Log values were measured and PSMA specificity of these ligands was determined in LS174T-PSMA cells. Tumor targeting was evaluated in BALB/c nude mice with subcutaneous LS174T-PSMA and LS174T wild-type tumors using μSPECT/CT imaging, fluorescence imaging, and biodistribution studies. SPAAC chemistry increased the lipophilicity of the ligands (log range: -2.4 to -4.4). , SPAAC chemistry ligands showed high and specific accumulation in s.c. LS174T-PSMA tumors up to 24 h after injection, enabling clear visualization using μSPECT/CT and fluorescence imaging. Overall, no significant differences between the SPAAC chemistry ligands and their NHS-based counterparts were found (2 h p.i., > 0.05), while In-labeled ligands outperformed the Tc ligands. Here, we demonstrate that our newly developed SPAAC-based PSMA ligands show high PSMA-specific tumor targeting. The use of click chemistry in PSMA ligand development opens up the opportunity for fast, efficient, and versatile conjugations of multiple imaging moieties and/or drugs.
应变促进的叠氮化物-炔烃环加成(SPAAC)是一种简单而多用途的偶联策略。将 SPAAC 用于将不同的功能元件连接到前列腺特异性膜抗原(PSMA)配体上,将有助于开发用于 PSMA 靶向成像和前列腺癌(PCa)治疗的模块化平台。作为 SPAAC 化学平台的第一个概念验证,我们合成并表征了用于 PCa 术中放射性检测和荧光成像的四种双标记 PSMA 配体。配体使用固相化学合成,并包含用于 In 或 Tc 标记的螯合剂。荧光团 IRDye800CW 通过 SPAAC 化学或传统的 -羟基琥珀酰亚胺(NHS)酯偶联进行共轭。测量了 LogP 值,并在 LS174T-PSMA 细胞中确定了这些配体的 PSMA 特异性。使用 μSPECT/CT 成像、荧光成像和生物分布研究,在皮下 LS174T-PSMA 和 LS174T 野生型肿瘤的 BALB/c 裸鼠中评估了肿瘤靶向性。SPAAC 化学增加了配体的亲脂性(LogP 值范围:-2.4 至-4.4)。与 NHS 为基础的配体相比,SPAAC 化学配体在注射后 24 小时内显示出对 s.c. LS174T-PSMA 肿瘤的高特异性积累,可通过 μSPECT/CT 和荧光成像清晰显示。总体而言,SPAAC 化学配体与 NHS 为基础的配体之间未发现显着差异(2 h p.i., > 0.05),而 In 标记的配体优于 Tc 标记的配体。在这里,我们证明了我们新开发的基于 SPAAC 的 PSMA 配体具有高 PSMA 特异性肿瘤靶向性。点击化学在 PSMA 配体开发中的应用为多种成像部分和/或药物的快速、高效和多功能偶联开辟了机会。
