Exploration of the Magnetic Flux Density on the Surface of Seamless Knitted Fabrics Manufactured with Magnetic Polypropylene Fibers.

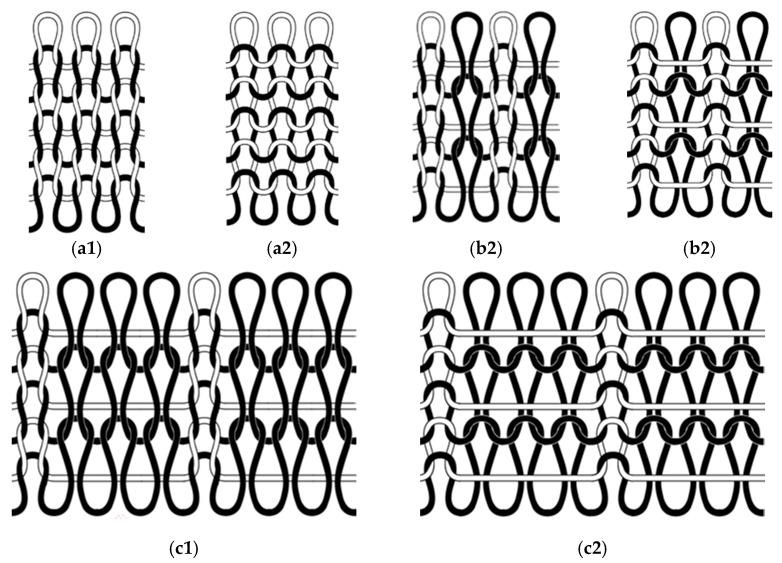

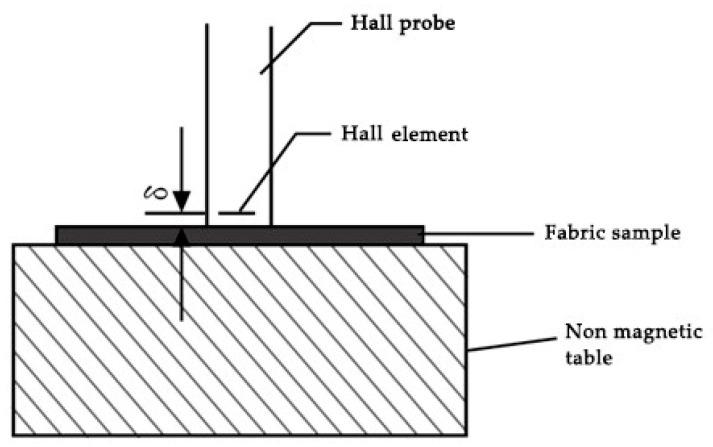

In this paper, magnetic fibers were integrated with seamless knitting technology. Additionally, the raw materials for the outer fabrics and the relevant yarn feed ratio were designed, including the polypropylene yarn with different magnetic powder contents (0%, 10% and 50%) and its yarn feed ratio (100:0, 75:25, 50:50 and 25:75) to graphene viscose yarn. In addition, weft plain stitch, 1 + 1 mock rib and 1 + 3 mock rib were adopted to weave polyamide fiber/polyurethane fiber wrap yarn as the lining materials into 12 knitted fabric samples on a seamless knitting machine according to the partial addition method in the orthogonal experimental design. As per the test and analysis results of the magnetic flux density on the front and back surfaces of 12 seamless knitted fabrics, polypropylene yarn with different magnetic powder contents in outer fabrics is the most significant factor affecting the magnetic flux density on the surface, followed by the yarn feed ratio of outer fabrics and fabric stitches. The findings in this study can provide a reference and theoretical basis for the specification design of seamless knitted fabrics manufactured by magnetic fabrics to a certain extent.
