Galli Jennifer D, Horton Melanie, Durr Eberhard, Heidecker Gwendolyn J, Freed Daniel, Fridman Arthur, Wang Dai, Zhang Lan
Infectious Diseases and Vaccines Discovery, Merck & Co., Inc., West Point, PA 19486, USA.
Data Science and Scientific Informatics, Merck & Co., Inc., Rahway, NJ 07065, USA.
Vaccines (Basel). 2022 Jan 25;10(2):184. doi: 10.3390/vaccines10020184.

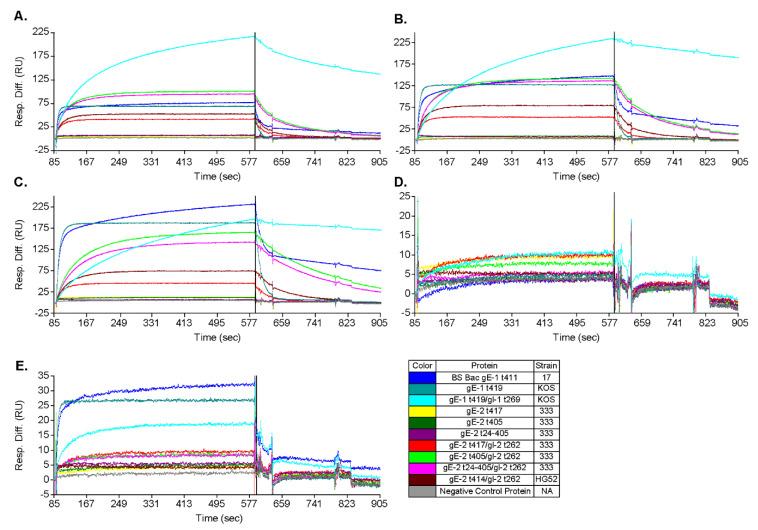

Glycoprotein E (gE) and glycoprotein I (gI) are expressed as a heterodimer on the surface of Herpes simplex virus (HSV). Glycoprotein E binds Fc domain of immunoglobulin G (IgG) and inhibits activities mediated by the IgG Fc domain, contributing to immune evasion by HSV. It has been reported that HSV type 1 gE (gE-1) is capable of binding IgG Fc as a monomer and in a heterodimeric complex with gI, with the heterodimer having 50- to100-fold greater affinity for Fc than gE alone. We report the production of both a soluble form of HSV type 2 gE (gE-2) and a soluble HSV-2 gE/gI heterodimer (gE-2/gI-2). Characterization of soluble gE-2 by surface plasmon resonance (SPR) demonstrates that it is incapable of binding human IgG or the IgG Fc domain. Co-expression with HSV-2 gI (gI-2) and purification of the gE-2/gI-2 heterodimer enable gE-2 to bind human IgG through its Fc domain. We hypothesize that functional epitopes of wildtype gE-2 may be masked by plasma IgG Fc and affect the immunogenicity of the gE-2/gI-2 heterodimer as a vaccine antigen. A series of gE-2 mutations within the surface-exposed Fc:gE-2 interface was designed, and gE-2 mutants were co-expressed with gI-2. Evaluation of twelve gE-2 mutant heterodimers by SPR assay identified nine gE-2 mutations which abrogated or reduced Fc binding while maintaining heterodimer formation with gI. Vaccinating rabbits with the four most Fc-binding deficient gE-2/gI-2 heterodimers elicited comparable anti-heterodimer binding antibody titers and statistically significantly higher serum neutralization antibody levels than wildtype heterodimers. Taken together, these data support the concept of rational antigen design for improved vaccine candidates.
糖蛋白E(gE)和糖蛋白I(gI)以异二聚体形式表达于单纯疱疹病毒(HSV)表面。糖蛋白E与免疫球蛋白G(IgG)的Fc结构域结合,并抑制由IgG Fc结构域介导的活性,这有助于HSV逃避免疫。据报道,1型单纯疱疹病毒糖蛋白E(gE-1)能够以单体形式以及与gI形成的异二聚体复合物形式结合IgG Fc,该异二聚体对Fc的亲和力比单独的gE高50至100倍。我们报道了2型单纯疱疹病毒gE(gE-2)的可溶性形式以及可溶性HSV-2 gE/gI异二聚体(gE-2/gI-2)的产生。通过表面等离子体共振(SPR)对可溶性gE-2进行表征表明,它无法结合人IgG或IgG Fc结构域。与HSV-2 gI(gI-2)共表达并纯化gE-2/gI-2异二聚体可使gE-2通过其Fc结构域结合人IgG。我们推测野生型gE-2的功能性表位可能被血浆IgG Fc掩盖,并影响gE-2/gI-2异二聚体作为疫苗抗原的免疫原性。设计了一系列位于表面暴露的Fc:gE-2界面内的gE-2突变体,并将gE-2突变体与gI-2共表达。通过SPR分析对12种gE-2突变体异二聚体进行评估,鉴定出9种gE-2突变,这些突变消除或降低了Fc结合,同时保持了与gI形成异二聚体。用四种Fc结合缺陷最严重的gE-2/gI-2异二聚体给兔子接种疫苗,引发了可比的抗异二聚体结合抗体滴度,并且血清中和抗体水平在统计学上显著高于野生型异二聚体。综上所述,这些数据支持了合理设计抗原以改进候选疫苗的概念。
