Iron nanoparticles to recover a co-contaminated soil with Cr and PCBs.

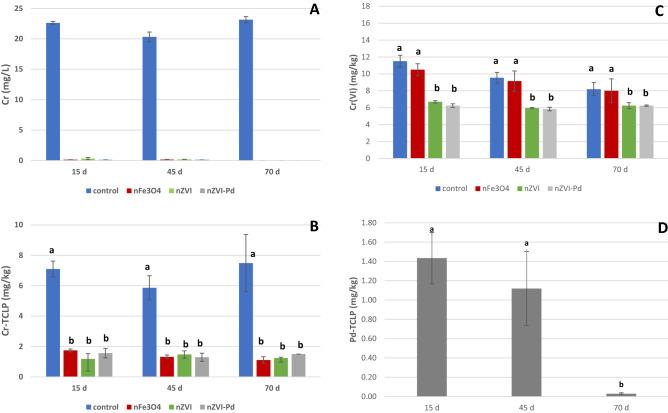

Little attention has been given to the development of remediation strategies for soils polluted with mixture of pollution (metal(loid)s and organic compounds). The present study evaluates the effectiveness of different types of commercial iron nanoparticles (nanoscale zero valent iron (nZVI), bimetallic nZVI-Pd, and nano-magnetite (nFeO)), for the remediation of an industrial soil co-contaminated with Cr and PCBs. Soil samples were mixed with nZVI, nZVI-Pd, or nFeO at doses selected according to their reactivity with PCBs, homogenized, saturated with water and incubated at controlled conditions for 15, 45 and 70 days. For each sampling time, PCBs and chromium were analyzed in aqueous and soil fractions. Cr(VI) and Cr leachability (TCLP test) were determined in the soil samples. The treatment with the three types of iron nanoparticles showed significant reduction in Cr concentration in aqueous extracts at the three sampling times (> 98%), compared to the control samples. The leachability of Cr in treated soil samples also decreased and was stable throughout the experiment. Results suggested that nZVI and nZVI-Pd immobilized Cr through adsorption of Cr(VI) on the shell and reduction to Cr(III). The mechanism of interaction of nFeO and Cr(VI) included adsorption and reduction although its reducing character was lower than those of ZVI nanoparticles. PCBs significantly decreased in soil samples (up to 68%), after 15 days of treatment with the three types of nanoparticles. However, nFeO evidenced reversible adsorption of PCBs after 45 days. In general, nZVI-Pd reduced PCB concentration in soil faster than nZVI. Control soils showed a similar reduction in PCBs concentration as those obtained with nZVI and nZVI-Pd after a longer time (45 days). This is likely due to natural bioremediation, although it was not effective for Cr remediation. Results suggest that the addition of nZVI or nZVI-Pd and pseudo-anaerobic conditions could be used for the recovery of soil co-contaminated with Cr and PCBs.
